SWS3129D48-32.768K,SUNTSU测量仪器晶振,3215mm时钟晶振，美国进口晶振，Suntsu晶振，松图晶振，型号：SWS312，编码为：SWS3129D48-32.768K，频率为：32.768KHz，负载电容：9pF，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.2x1.5x0.8mm封装，两脚贴片晶振，石英晶振，3215贴片晶振，无源晶振，SMD晶振，石英晶体谐振器。具有超小型晶振，轻薄型晶振，高性能晶振，高品质晶振，耐热及耐环境等特点，被广泛应用于：测试仪器晶振，实时时钟晶振，数字显示晶振，计时晶振，无线应用等。

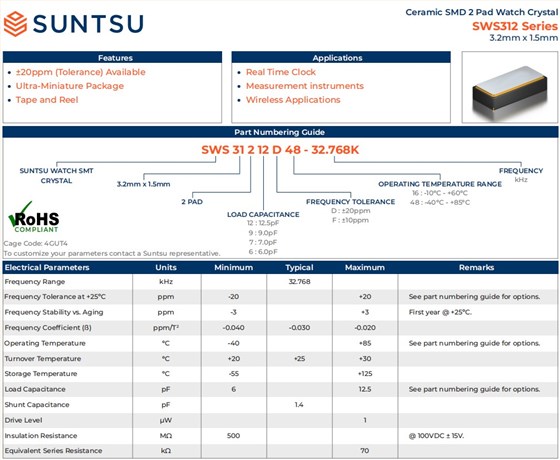

SWS3129D48-32.768K,SUNTSU测量仪器晶振,3215mm时钟晶振,参数表
| 品牌 |
Suntsu松图晶振 |
| 型号 |
SWS312 |
| 物料编码 |
SWS3129D48-32.768K |
| 频率 | 32.768KHz |
| 频率稳定性 | ±20ppm |
| 负载电容 | 9pF |
| 工作温度 | -40℃至+85℃ |
| 尺寸 |
3.2x1.5x0.8mm |

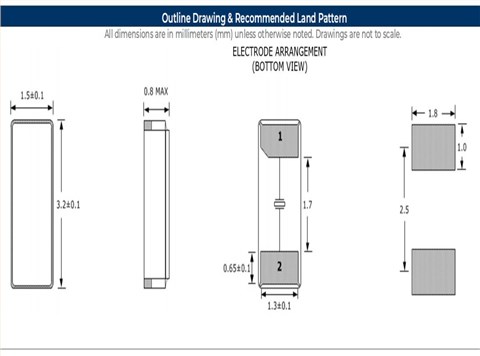

SWS3129D48-32.768K,SUNTSU测量仪器晶振,3215mm时钟晶振,尺寸图
| 产品编码 | 包装尺寸 | 负载 | 频率容差 | 工作温度 |
| SWS3126D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ |
| SWS3127D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -10℃ - +60℃ |
| SWS3127D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -40℃ - +85℃ |
| SWS3129D16-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ |
| SWS3129D48-32.768K | 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ |
| SWS41212D16-32.768K | 4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ |
| SWS41212D48-32.768K | 4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | 石英晶体 | -40℃ - +85℃ |
| SWS51212D16-32.768K | 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ |
| SWS5127D16-32.768K | 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal | 7pF | ±20ppm | -10℃ - +60℃ |
| SWS5129D16-32.768K | 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ |
| SWS61412D48-32.768K | 6.9X1.4 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ |
| SWS83412D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -10℃ - +60℃ |
| SWS83412D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 12.5pF | ±20ppm | -40℃ - +85℃ |
| SWS8346D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -10℃ - +60℃ |
| SWS8346D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 6pF | ±20ppm | -40℃ - +85℃ |
| SWS8347D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 7pF | ±20ppm | -10℃ - +60℃ |
| SWS8347D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 7pF | ±20ppm | -40℃ - +85℃ |
| SWS8349D16-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 9pF | ±20ppm | -10℃ - +60℃ |
| SWS8349D48-32.768K | 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal | 9pF | ±20ppm | -40℃ - +85℃ |
