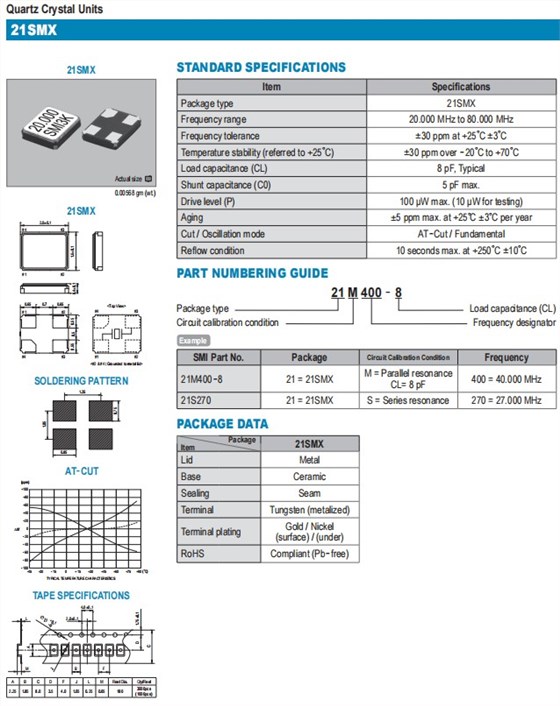

SMI晶振|21SMX贴片晶振|21M400-8|6G基站晶振规格表
参数
数值
封装
21SMX
频率
40MHz
频率容差@ 25°C ± 3°C
±30ppm
频率稳定度
±30ppm
工作温度
-20~70°C
负载
8pF
并联电容
5pF Max
驱动电平
老化@ 25°C ± 3°C

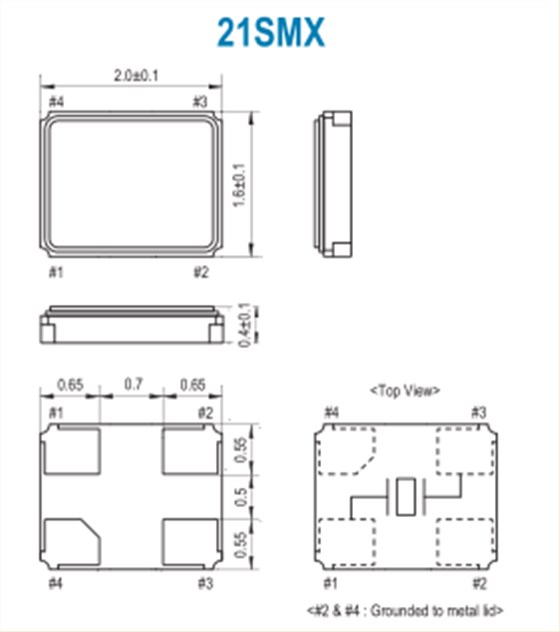

SMI晶振|21SMX贴片晶振|21M400-8|6G基站晶振尺寸图
