日本进口NDK晶振,有源差分晶振,NP7050S-150MHZ无线通讯模块差分晶振，日本NDK晶振公司,有源晶振,基站、以太网、光传输设备和服务器，支持较宽的频率范围。(15至2100MHz(频率调谐分辨率2×10-9))，频率选择功能(双、四、任意速率)，低抖动:类型130fs rms (@622.08MHz)，五种输出:CMOS, LVPECL, LVDS, CML, HCSL，支持低电源电压:+1.8V、+2.5V、+3.3V，低电流差分晶振，通讯差分晶振
日本进口NDK晶振,有源差分晶振,NP7050S-150MHZ无线通讯模块差分晶振

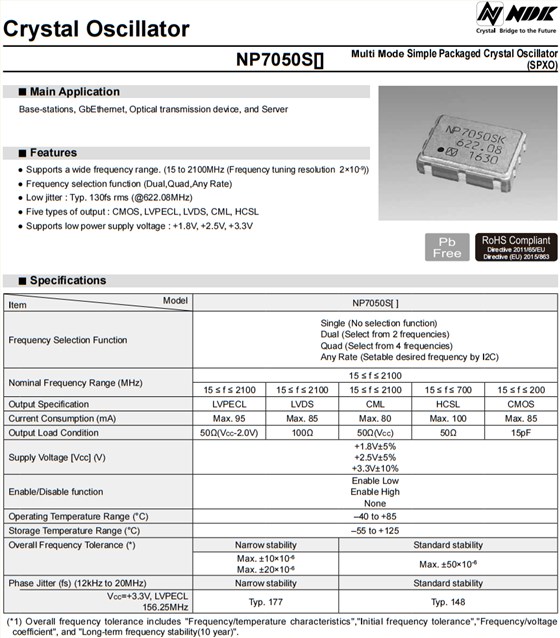

| 项目 | 型号 | NP7050S | ||||
| 频率选择功能 |
单(无选择功能) 双频(从2个频率中选择) 四频(从4个频率中选择) 任意速率(通过I2C设置所需频率) |
|||||
| 标称频率范围（MHz） | 15 ≤ f ≤ 2100 | |||||
| 15 ≤ f ≤ 2100 | 15 ≤ f ≤ 2100 | 15 ≤ f ≤ 2100 | 15 ≤ f ≤ 700 | 15 ≤ f ≤ 200 | ||
| 输出规范 | LVPECL | LVDS | CML | HCSL | CMOS | |
| 电流消耗量（mA） | Max. 95 | Max. 85 | Max. 80 | Max. 100 | Max. 85 | |
| 输出负载条件 | 50Ω(VCC-2.0V) | 100Ω | 50Ω(VCC) | 50Ω | 15pF | |
| 电源电压（Vcc） |
+1.8V±5% +2.5V±5% +3.3V±10% |
|||||
| 启用/禁用功能 |
Enable Low Enable High None |
|||||
| 工作温度范围（°C） | –40 to +85 | |||||
| 储存温度范围（°C） | –55 to +125 | |||||
| 总容许频率（*） | Narrow stability | Standard stability | ||||
|
Max. ±10×10-6 Max. ±20×10-6 |
Max. ±50×10-6 | |||||
|
相位抖动（fs）（12 kHz至20MHz) |
Narrow stability | Standard stability | ||||
|
VCC=+3.3V, LVPECL 156.25MHz |
Typ. 177 | Typ. 148 | ||||
日本进口NDK晶振,有源差分晶振,NP7050S-150MHZ无线通讯模块差分晶振
型号
常规频率[MHz]
规格编码
尺寸
输出类型
工作温度
储存温度
电源电压
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVPECL
-40?+85
-55?+125
1.8
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVPECL
-40?+85
-55?+125
1.8
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVPECL
-40?+85
-55?+125
1.8
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVPECL
-40?+85
-55?+125
2.5
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVPECL
-40?+85
-55?+125
2.5
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVPECL
-40?+85
-55?+125
2.5
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVPECL
-40?+85
-55?+125
3.3
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVPECL
-40?+85
-55?+125
3.3
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVPECL
-40?+85
-55?+125
3.3
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVDS
-40?+85
-55?+125
1.8
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVDS
-40?+85
-55?+125
1.8
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVDS
-40?+85
-55?+125
1.8
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVDS
-40?+85
-55?+125
2.5
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVDS
-40?+85
-55?+125
2.5
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVDS
-40?+85
-55?+125
2.5
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVDS
-40?+85
-55?+125
3.3
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVDS
-40?+85
-55?+125
3.3
NP5032SK,SL,SM,SN
15~2100
5.0x3.2
LVDS
-40?+85
-55?+125
3.3
NP5032SK,SL,SM,SN
15~700
5.0x3.2
HCSL
-40?+85
-55?+125
1.8
NP5032SK,SL,SM,SN
15~700
5.0x3.2
HCSL
-40?+85
-55?+125
1.8
NP5032SK,SL,SM,SN
15~700
5.0x3.2
HCSL
-40?+85
-55?+125
1.8
NP5032SK,SL,SM,SN
15~700
5.0x3.2
HCSL
-40?+85
-55?+125
2.5
NP5032SK,SL,SM,SN
15~700
5.0x3.2
HCSL
-40?+85
-55?+125
2.5
NP5032SK,SL,SM,SN
15~700
5.0x3.2
HCSL
-40?+85
-55?+125
2.5
NP5032SK,SL,SM,SN
15~700
5.0x3.2
HCSL
-40?+85
-55?+125
3.3
NP5032SK,SL,SM,SN
15~700
5.0x3.2
HCSL
-40?+85
-55?+125
3.3
NP5032SK,SL,SM,SN
15~700
5.0x3.2
HCSL
-40?+85
-55?+125
3.3
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVPECL
-40?+85
-55?+125
1.8
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVPECL
-40?+85
-55?+125
1.8
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVPECL
-40?+85
-55?+125
1.8
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVPECL
-40?+85
-55?+125
2.5
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVPECL
-40?+85
-55?+125
2.5
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVPECL
-40?+85
-55?+125
2.5
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVPECL
-40?+85
-55?+125
3.3
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVPECL
-40?+85
-55?+125
3.3
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVPECL
-40?+85
-55?+125
3.3
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVDS
-40?+85
-55?+125
1.8
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVDS
-40?+85
-55?+125
1.8
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVDS
-40?+85
-55?+125
1.8
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVDS
-40?+85
-55?+125
2.5
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVDS
-40?+85
-55?+125
2.5
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVDS
-40?+85
-55?+125
2.5
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVDS
-40?+85
-55?+125
3.3
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVDS
-40?+85
-55?+125
3.3
NP7050SK,SL,SM,SN
15~2100
7.0x5.0
LVDS
-40?+85
-55?+125
3.3
NP7050SK,SL,SM,SN
15~700
7.0x5.0
HCSL
-40?+85
-55?+125
1.8
NP7050SK,SL,SM,SN
15~700
7.0x5.0
HCSL
-40?+85
-55?+125
1.8
NP7050SK,SL,SM,SN
15~700
7.0x5.0
HCSL
-40?+85
-55?+125
1.8
NP7050SK,SL,SM,SN
15~700
7.0x5.0
HCSL
-40?+85
-55?+125
2.5
NP7050SK,SL,SM,SN
15~700
7.0x5.0
HCSL
-40?+85
-55?+125
2.5
NP7050SK,SL,SM,SN
15~700
7.0x5.0
HCSL
-40?+85
-55?+125
2.5
NP7050SK,SL,SM,SN
15~700
7.0x5.0
HCSL
-40?+85
-55?+125
3.3
NP7050SK,SL,SM,SN
15~700
7.0x5.0
HCSL
-40?+85
-55?+125
3.3
NP7050SK,SL,SM,SN
15~700
7.0x5.0
HCSL
-40?+85
-55?+125
3.3
