NKG晶振|SMO3|SMO36B32-64-128-250WTS|电信设备晶振

产品简介

NKG晶振|SMO3|SMO36B32-64-128-250WTS|电信设备晶振,NKG晶振,SMO3有源晶振,SMD振荡器,SMO36B32-64-128-250WTS晶振,5070晶振,四脚贴片晶振,石英晶振,频率250MHz,电压3.3V,负载15pF,频率稳定性50ppm,工作温度范围-40~85°C,低相位抖动晶振,耐老化晶振,高可靠性晶振,电信设备晶振,高速网络晶振,高速时钟晶振,数据中心晶振.

产品详情

yijin-1 NKG晶振|SMO3|SMO36B32-64-128-250WTS|电信设备晶振,NKG晶振,SMO3有源晶振,SMD振荡器,SMO36B32-64-128-250WTS晶振,5070晶振,四脚贴片晶振,石英晶振,频率250MHz,电压3.3V,负载15pF,频率稳定性50ppm,工作温度范围-40~85°C,低相位抖动晶振,耐老化晶振,高可靠性晶振,电信设备晶振,高速网络晶振,高速时钟晶振,数据中心晶振.

NKG晶振|SMO3|SMO36B32-64-128-250WTS|电信设备晶振特点：

●在150至250MHz范围内的4个可切换频率

●集成相位抖动性能159fs RMS。

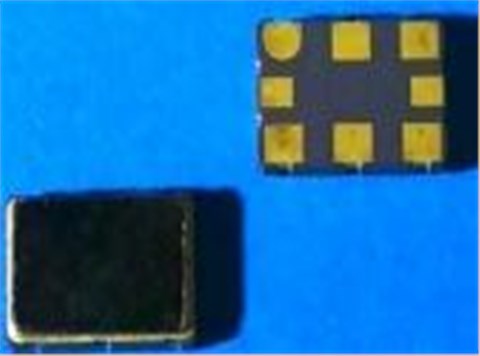

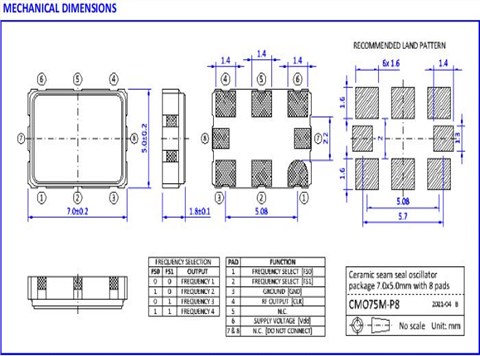

●SMD封装尺寸为7.0 x 5.0 x 1.8mm，带有8个衬垫。

●高可靠的缝封封装，低老化

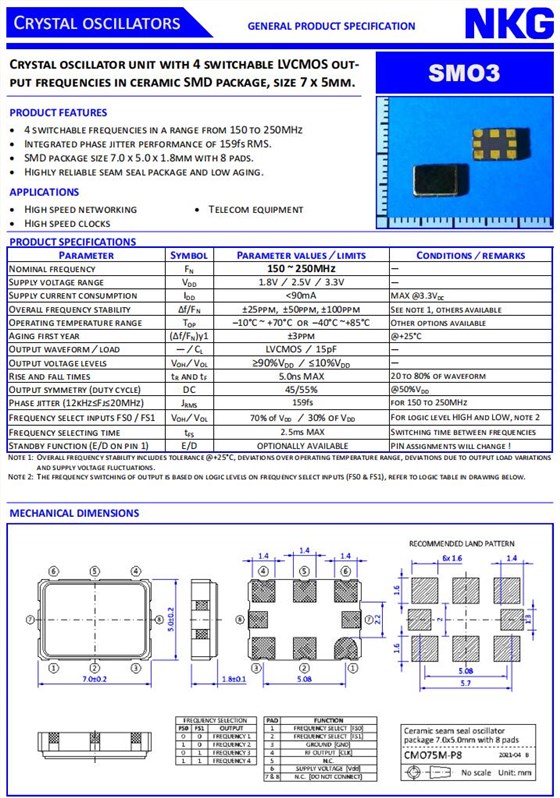

yijin-2 NKG晶振|SMO3|SMO36B32-64-128-250WTS|电信设备晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	250MHz	Fundamental or 3rd overtone design
Supply voltage range	VDD	3.3 V	More available, please contact us
Supply current consumption	IDD	<90mA
Overall frequency stability	?f/FN	±50ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Aging first year	(Δf/FN)y1	±3ppm	@+25°C
Output waveform ? load	— /CL	LVCMOS /15pF	Most common, others on request
Output voltage levels	VOH /VOL	≥90%VDD /≤10%VDD	-
Rise and fall times	tR and tF	5.0ns MAX	20 to 80% of waveform
Output symmetry (duty cycle)	DC	45/55%	@50%VDD
Phase jitter (12kHz≤Fj≤20MHz)	JRMS	159fs	for 150 to 250MHz
Frequency select inputs FS0 / FS1	VOH /VOL	70% of VDD ? 30% of VDD	For logic level HIGH and LOW, note 2
Frequency selecting time	tFS	2.5ms MAX	Switching time between frequencies
Standby function (E/D on pin 1)	E/D	OPTIONALLY AVAILABLE	PIN assignments will change !
