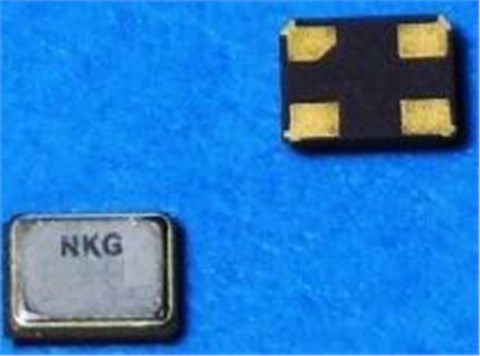

NKG晶振|SCO8|SCO8-6A-20M000-WTS|2016有源晶振

NKG晶振|SCO8|SCO8-6A-20M000-WTS|2016有源晶振NKG晶振|SCO8|SCO8-6A-20M000-WTS|2016有源晶振

产品简介

NKG晶振|SCO8|SCO8-6A-20M000-WTS|2016有源晶振,香港进口晶振,NKG晶振,SCO8有源晶振,石英晶体振荡器,SCO8-6A-20M000-WTS晶振,2016mm贴片晶振,四脚封装晶振,频率20MHz,电压3.3V,负载15pF,频率稳定性25ppm,工作温度范围-40~85°C,超小型晶振,高稳定性晶振,耐老化晶振,移动通信晶振,无线局域网晶振,USB设备晶振,智能手机晶振.

产品详情

yijin-1NKG晶振|SCO8|SCO8-6A-20M000-WTS|2016有源晶振,香港进口晶振,NKG晶振,SCO8有源晶振,石英晶体振荡器,SCO8-6A-20M000-WTS晶振,2016mm贴片晶振,四脚封装晶振,频率20MHz,电压3.3V,负载15pF,频率稳定性25ppm,工作温度范围-40~85°C,超小型晶振,高稳定性晶振,耐老化晶振,移动通信晶振,无线局域网晶振,USB设备晶振,智能手机晶振.

NKG晶振|SCO8|SCO8-6A-20M000-WTS|2016有源晶振特点:

-超小尺寸的SMD封装尺寸为2.0 x 1.6 x 0.8mm,带有4个衬垫

-高可靠的缝封封装,低老化

-低抖动和相位噪声版本可用

-符合AEC-Q200标准的汽车级产品可供选择

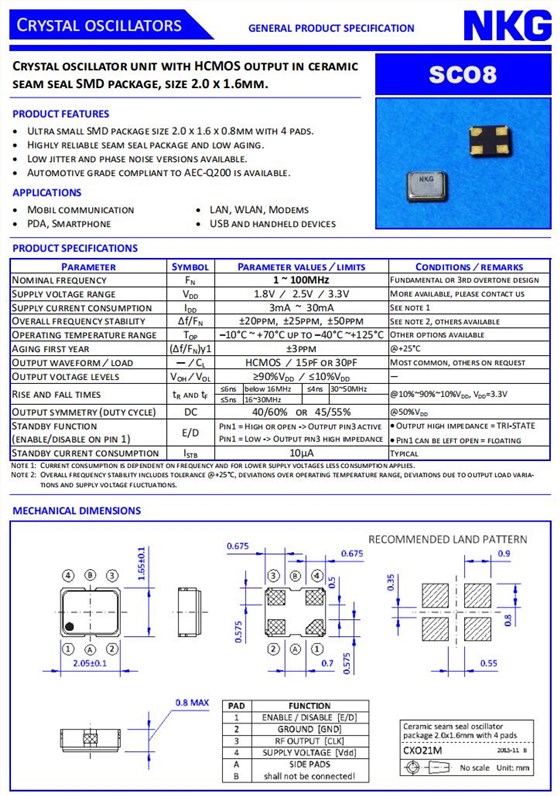

yijin-2NKG晶振|SCO8|SCO8-6A-20M000-WTS|2016有源晶振规格表

Parameter Symbol Specifications Remarks
Frequency range FN 20MHz Fundamental or 3rd overtone design
Supply voltage range VDD 3.3V More available, please contact us
Supply current consumption IDD 3mA ~ 30mA
Overall frequency stability ?f/FN ±25ppm Depending on operating temperaturerange, other options available
Operating temperature range TOP –40°C ~+85°C Options available
Aging first year
(Δf/FN)y1
±3ppm
@+25°C
Output waveform ? load ? CL HCMOS /15pF or 30pF Most common, others on request
Output voltage levels VOH ? VOL ≥90%VDD /≤10%VDD -
Output symmetry (duty cycle) DC 40/60% or 45/55% @50%VDD
Standby function (enable/disable on pin 1)
E/D
Pin1 = High or open -> Output pin3 active Pin1 = Low -> Output pin3 high impedance
?Output high impedance = TRI-STATE ?Pin1 can be left open = floating
Standby current consumption ISTB 10µA Typical

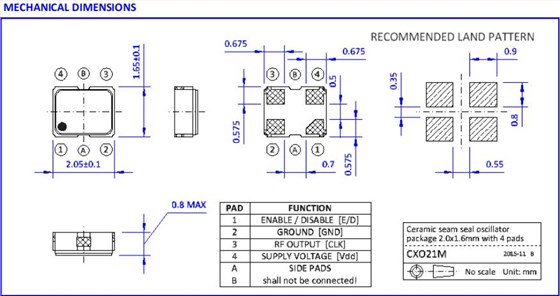

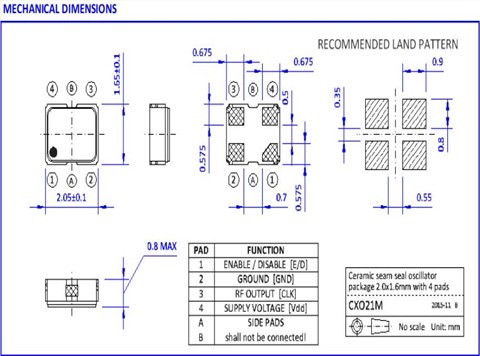

yijin-3NKG晶振|SCO8|SCO8-6A-20M000-WTS|2016有源晶振尺寸图

SCO8-2

SCO8
