NKG晶振|S6M晶振|S6M16.0000F10M2Z-EXT|6035mm晶振

产品简介

NKG晶振|S6M晶振|S6M16.0000F10M2Z-EXT|6035mm晶振,香港NKG晶振,S6M晶体谐振器,无源晶振,S6M16.0000F10M2Z-EXT晶振,SMD晶体,6035贴片石英晶振,四脚封装晶振,频率16MHz,负载10pF,频率容差20ppm,工作温度范围-40~85°C,高可靠性晶振,抗震动晶振,低老化晶振,便携式设备晶振,通信设备晶振,移动网络晶振,微处理器晶振.

产品详情

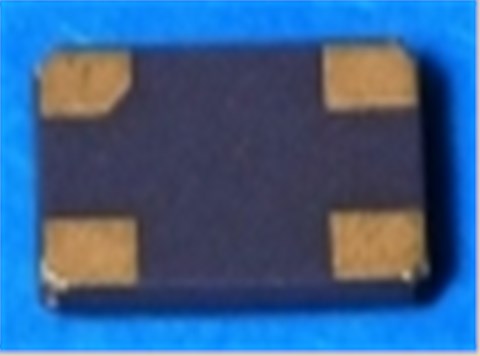

yijin-1 NKG晶振|S6M晶振|S6M16.0000F10M2Z-EXT|6035mm晶振,香港NKG晶振,S6M晶体谐振器,无源晶振,S6M16.0000F10M2Z-EXT晶振,SMD晶体,6035贴片石英晶振,四脚封装晶振,频率16MHz,负载10pF,频率容差20ppm,工作温度范围-40~85°C,高可靠性晶振,抗震动晶振,低老化晶振,便携式设备晶振,通信设备晶振,移动网络晶振,微处理器晶振.

NKG晶振|S6M晶振|S6M16.0000F10M2Z-EXT|6035mm晶振特点：

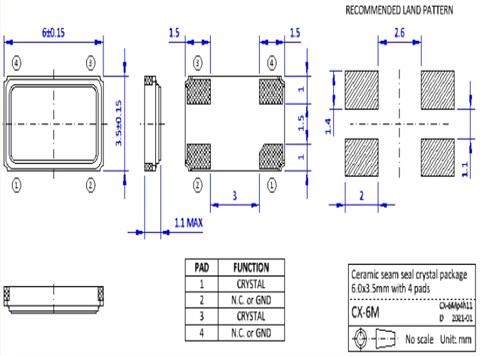

●小包装尺寸6.0x 3.5 x 1.0mm, 4个衬垫。

●优异的耐热性和抗震性。

●高可靠的缝封封装，低老化。

●符合AEC-Q200标准的汽车级产品可供选择

yijin-2 NKG晶振|S6M晶振|S6M16.0000F10M2Z-EXT|6035mm晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	16MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±25ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Load capacitance	CL	10pF	Please specify load capacitance
Equivalent series resistance	ESR	40Ω ~ 30Ω MAX	FUND mode 14 ~ 20MHz
Drive level	DL	10µW TYP, 100µW MAX	-
Aging first year	Δf/y1	±5ppm	@+25°C
