NKG晶振|S6GA晶振|S6GA32.0000F18E25-EXT|6035高性价比晶振

产品简介

NKG晶振|S6GA晶振|S6GA32.0000F18E25-EXT|6035高性价比晶振,NKG晶振,S6GA进口晶振,陶瓷晶振,S6GA32.0000F18E25-EXT晶振,无源晶振,6035贴片石英晶振,二脚封装晶振,SMD晶振,频率32MHz,负载18pF,频率容差20ppm,工作温度范围-20~70°C,高性价比晶振,高可靠性晶振,高品质晶振,专业视频设备晶振,家电影音系统晶振,显示和控制面板应用晶振,数字设备晶振.

产品详情

yijin-1 NKG晶振|S6GA晶振|S6GA32.0000F18E25-EXT|6035高性价比晶振,NKG晶振,S6GA进口晶振,陶瓷晶振,S6GA32.0000F18E25-EXT晶振,无源晶振,6035贴片石英晶振,二脚封装晶振,SMD晶振,频率32MHz,负载18pF,频率容差20ppm,工作温度范围-20~70°C,高性价比晶振,高可靠性晶振,高品质晶振,专业视频设备晶振,家电影音系统晶振,显示和控制面板应用晶振,数字设备晶振.

NKG晶振|S6GA晶振|S6GA32.0000F18E25-EXT|6035高性价比晶振特点：

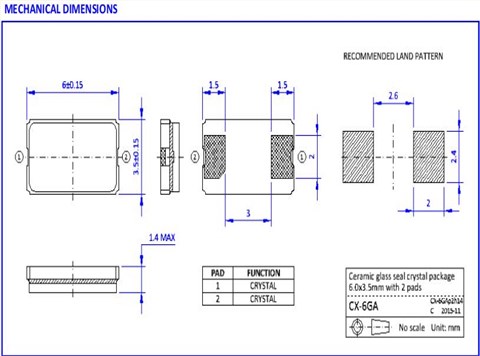

●小包装尺寸6.0x 3.5 x 1.2mm, 2个衬垫。

●普通接缝密封封装的低成本替代品。

●符合RoHS要求。

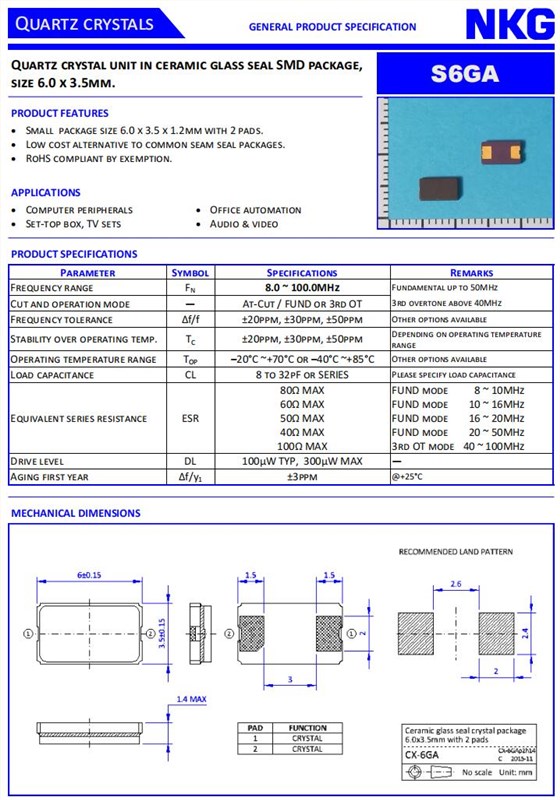

yijin-2 NKG晶振|S6GA晶振|S6GA32.0000F18E25-EXT|6035高性价比晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	32MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±50ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–20°C ~+70°C	Options available
Load capacitance	CL	18pF	Please specify load capacitance
Equivalent series resistance	ESR	40Ω MAX	FUND mode 20 ~ 50MHz
Drive level	DL	100µW TYP, 300µW MAX	-
Aging first year	Δf/y1	±3ppm	@+25°C
