NKG晶振|S6CA晶振|S6CA12.0000F10M23-EXT|6G通信设备晶振

产品简介

NKG晶振|S6CA晶振|S6CA12.0000F10M23-EXT|6G通信设备晶振,香港进口晶振,NKG晶振,S6CA贴片石英晶体,无源晶振,S6CA12.0000F10M23-EXT晶振,晶体谐振器,6.0x3.5mm石英晶体,SMD晶体,二脚封装晶振,频率12MHz,负载10pF,频率容差20ppm,工作温度范围-40~85°C,低老化晶振,耐热性晶振,高稳定性晶振,6G通信设备晶振,无线局域网晶振,便携式设备晶振,家庭自动化晶振.

产品详情

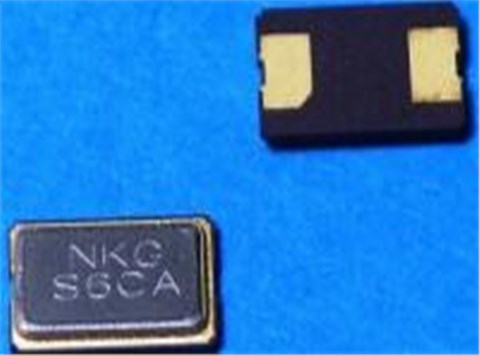

yijin-1 NKG晶振|S6CA晶振|S6CA12.0000F10M23-EXT|6G通信设备晶振,香港进口晶振,NKG晶振,S6CA贴片石英晶体,无源晶振,S6CA12.0000F10M23-EXT晶振,晶体谐振器,6.0x3.5mm石英晶体,SMD晶体,二脚封装晶振,频率12MHz,负载10pF,频率容差20ppm,工作温度范围-40~85°C,低老化晶振,耐热性晶振,高稳定性晶振,6G通信设备晶振,无线局域网晶振,便携式设备晶振,家庭自动化晶振.

NKG晶振|S6CA晶振|S6CA12.0000F10M23-EXT|6G通信设备晶振特点：

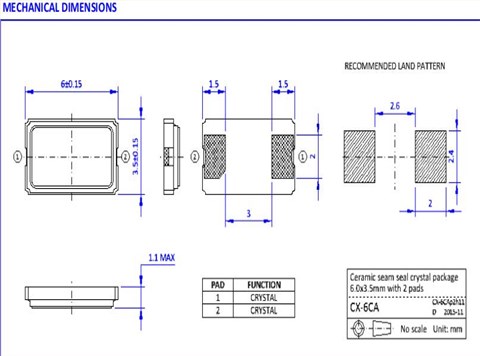

●小包装尺寸6.0x 3.5 x 1.0mm, 2个衬垫。

●优异的耐热性和抗震性。

●高可靠的缝封封装，低老化。

●符合AEC-Q200标准的汽车级产品可供选择。

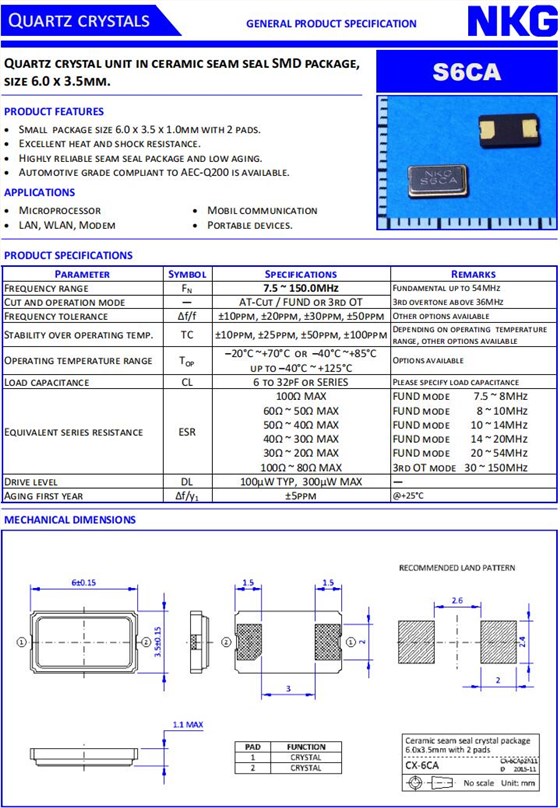

yijin-2 NKG晶振|S6CA晶振|S6CA12.0000F10M23-EXT|6G通信设备晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	12MHz	-
Cut and operation mode	-	AT-Cut / FUND or 3rd OT	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±30ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Load capacitance	CL	10pF	Please specify load capacitance
Equivalent series resistance	ESR	50Ω~40Ω MAX	FUND mode 10 ~ 14MHz
Drive level	DL	100µW TYP, 300µW MAX	-
Aging first year	Δf/y1	±5ppm	@+25°C
