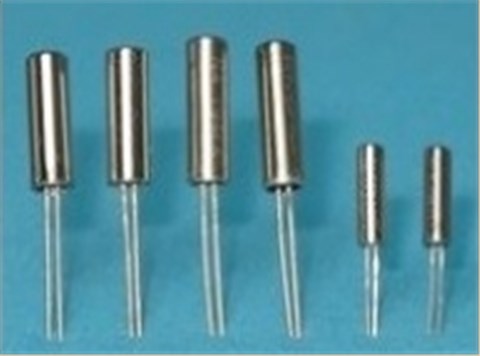

NKG Crystal|01-CR3-01|01-CR3-01-19M800-T16-2050E|圆柱插件晶振

NKG Crystal|01-CR3-01|01-CR3-01-19M800-T16-2050E|圆柱插件晶振NKG Crystal|01-CR3-01|01-CR3-01-19M800-T16-2050E|圆柱插件晶振

产品简介

NKG Crystal|01-CR3-01|01-CR3-01-19M800-T16-2050E|圆柱插件晶振,NKG Crystal,01-CR3-01圆柱晶振,进口晶振,01-CR3-01-19M800-T16-2050E晶振,无源晶振,石英晶体谐振器,2×6晶振,二脚插件晶振,频率19.8MHz,负载16pF,频率容差20ppm,工作温度范围-20~70°C,小体积晶振,高精度晶振,无铅环保晶振,摄像头晶振,DVD家电影音系统晶振,物联网晶振,数字电表晶振.

产品详情

yijin-1NKG Crystal|01-CR3-01|01-CR3-01-19M800-T16-2050E|圆柱插件晶振,NKG Crystal,01-CR3-01圆柱晶振,进口晶振,01-CR3-01-19M800-T16-2050E晶振,无源晶振,石英晶体谐振器,2×6晶振,二脚插件晶振,频率19.8MHz,负载16pF,频率容差20ppm,工作温度范围-20~70°C,小体积晶振,高精度晶振,无铅环保晶振,摄像头晶振,DVD家电影音系统晶振,物联网晶振,数字电表晶振.

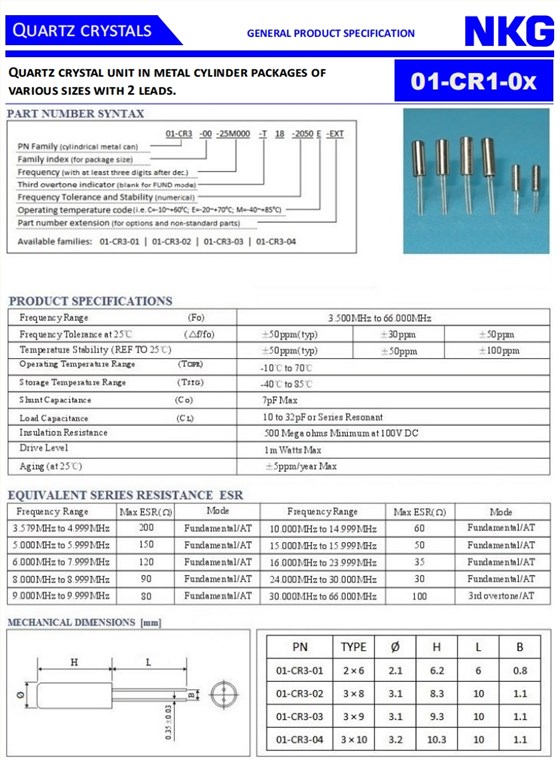

yijin-2NKG Crystal|01-CR3-01|01-CR3-01-19M800-T16-2050E|圆柱插件晶振规格表

Parameter Symbol Specifications Remarks
Frequency range FN 19.8MHz -
Cut and operation mode - FUNDAMENTAL / 3rd OVERTONE -
Frequency tolerance Δf/f ±20ppm Other options available
Stability over operating temp. TC ±50ppm Depending on operating temperaturerange, other options available
Operating temperature range TOP –20°C ~+70°C Options available
Load capacitance CL 16pF Please specify load capacitance
Equivalent series resistance ESR 35ΩMAX FUND mode 16 ~ 23.999MHz
Drive level DL 1mW MAX -
Aging first year Δf/y1 ±5ppm @+25°C

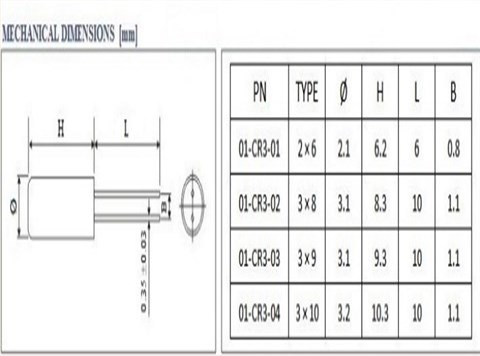

yijin-3NKG Crystal|01-CR3-01|01-CR3-01-19M800-T16-2050E|圆柱插件晶振尺寸图

01-CR1-0X-2

01-CR1-0x
