NKG晶振|01-CR3-45晶振|01-CR3-45-36M000-T30-2030E陶瓷晶振

产品简介

NKG晶振|01-CR3-45晶振|01-CR3-45-36M000-T30-2030E陶瓷晶振,NKG晶振,01-CR3-45陶瓷晶振,无源晶振,01-CR3-45-36M000-T30-2030E晶振,晶体谐振器,贴片石英晶振,SMD晶体,10.4×4.1×3.6mm晶振,四脚封装晶振,频率36MHz,负载30pF,频率容差20ppm,工作温度范围-20~70°C,高可靠性晶振,耐老化晶振,无铅环保晶振,微处理器晶振,显卡晶振,专业视频设备晶振,音影系统晶振.

产品详情

yijin-1 NKG晶振|01-CR3-45晶振|01-CR3-45-36M000-T30-2030E陶瓷晶振,NKG晶振,01-CR3-45陶瓷晶振,无源晶振,01-CR3-45-36M000-T30-2030E晶振,晶体谐振器,贴片石英晶振,SMD晶体,10.4×4.1×3.6mm晶振,四脚封装晶振,频率36MHz,负载30pF,频率容差20ppm,工作温度范围-20~70°C,高可靠性晶振,耐老化晶振,无铅环保晶振,微处理器晶振,显卡晶振,专业视频设备晶振,音影系统晶振.

NKG晶振|01-CR3-45晶振|01-CR3-45-36M000-T30-2030E陶瓷晶振特点：

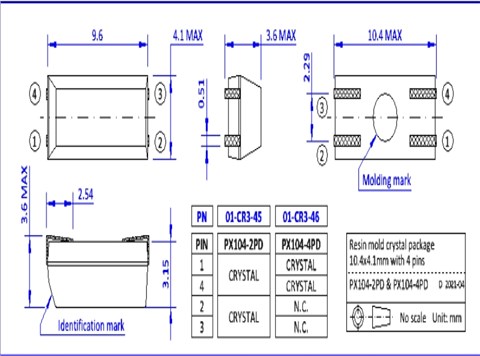

●SMD树脂模具封装尺寸10.4 x 4.1 x 3.6mm与4个j引线

●宽频率范围适用于中等精度的应用

●适用于SMT和回流加工

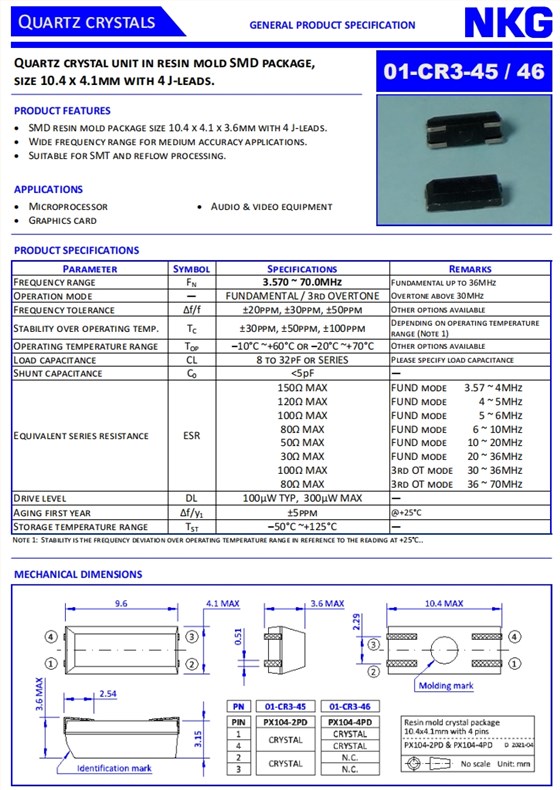

yijin-2 NKG晶振|01-CR3-45晶振|01-CR3-45-36M000-T30-2030E陶瓷晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	36MHz	-
Cut and operation mode	-	FUNDAMENTAL / 3rd OVERTONE	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±30ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–20°C ~+70°C	Options available
Load capacitance	CL	30pF	Please specify load capacitance
Equivalent series resistance	ESR	30ΩMAX	FUND mode 20 ~ 36MHz
Drive level	DL	100µW TYP, 300µW MAX	-
Aging first year	Δf/y1	±5ppm	@+25°C
