产品简介

NKG晶振|01-CR1-01|01-CR1-01-40M000-T20-2030M|HC-49U插件晶振,香港NKG晶振,01-CR1-01石英晶振,无源晶振,01-CR1-01-40M000-T20-2030M晶振,晶体谐振器,HC-49U插件晶振,11.05×4.65 ×3.6mm晶振,二脚封装晶振,频率40MHz,负载20pF,频率容差20ppm,工作温度范围-40~85°C,耐老化晶振,高品质晶振,耐高温晶振,无线局域网晶振,家用电视机顶盒晶振,消费电子产品晶振,显卡晶振.

产品详情

yijin-1 NKG晶振|01-CR1-01|01-CR1-01-40M000-T20-2030M|HC-49U插件晶振,香港NKG晶振,01-CR1-01石英晶振,无源晶振,01-CR1-01-40M000-T20-2030M晶振,晶体谐振器,HC-49U插件晶振,11.05×4.65 ×3.6mm晶振,二脚封装晶振,频率40MHz,负载20pF,频率容差20ppm,工作温度范围-40~85°C,耐老化晶振,高品质晶振,耐高温晶振,无线局域网晶振,家用电视机顶盒晶振,消费电子产品晶振,显卡晶振.

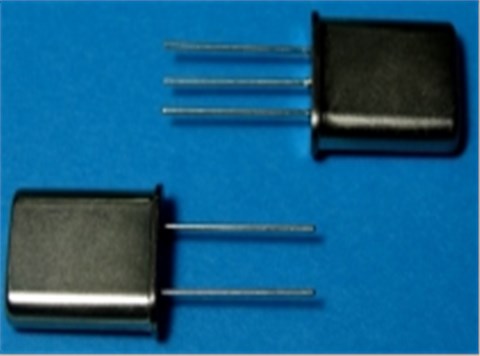

NKG晶振|01-CR1-01|01-CR1-01-40M000-T20-2030M|HC-49U插件晶振特点：

●传统的HC-49/U封装，2或3引线，SMD形式可用

●最适用于低频

●可靠的密封金属罐包装

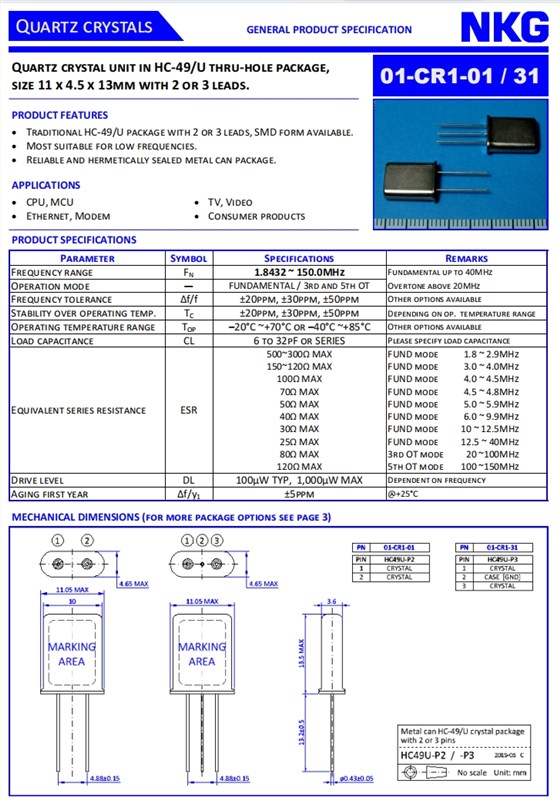

yijin-2 NKG晶振|01-CR1-01|01-CR1-01-40M000-T20-2030M|HC-49U插件晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	40MHz	-
Cut and operation mode	-	FUNDAMENTAL / 3rd OVERTONE	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±30ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Load capacitance	CL	20pF	Please specify load capacitance
Equivalent series resistance	ESR	25ΩMAX	FUND mode 12.5 ~ 40MHz
Drive level	DL	100µW TYP, 500µW MAX	-
Aging first year	Δf/y1	±5ppm	@+25°C
