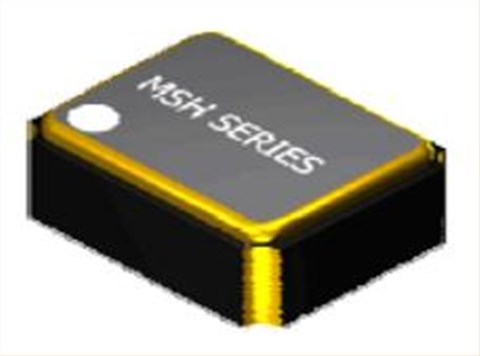

MSH302548AH-27.000MHZ-T,MSH系列3225mm晶振,Mmdcomp车载晶振，美国进口晶振，Mmdcomp晶振，麦迪康晶振，型号：MSH系列贴片晶振，产品编码为：MSH302548AH-27.000MHZ-T，频率为：27MHz，电压：3.3V，频率稳定性：±25ppm，HCMOS输出晶振，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.2x2.5mm，四脚贴片晶振，有源晶振，石英晶振，石英晶体振荡器，SMD晶振，XO振荡器。具有超小型，轻薄型，高性能晶振，高可靠性，耐热及耐环境等特点。应用于：移动通讯晶振，无线蓝牙晶振，车载晶振，导航仪晶振，物联网等应用。

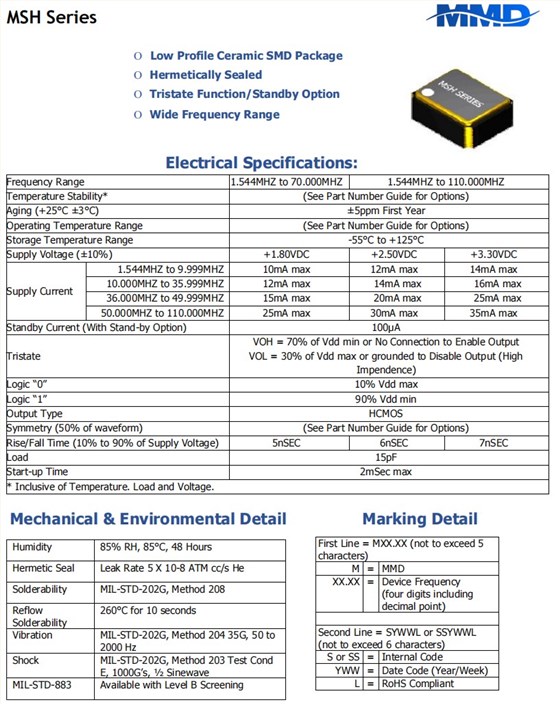

MSH302548AH-27.000MHZ-T,MSH系列3225mm晶振,Mmdcomp车载晶振,参数表
| FrequencyRange | 27 MHz | |
||

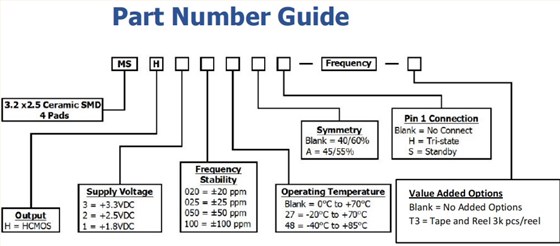

| TemperatureStability* | (SeePartNumberGuideforOptions) | |||
| Aging(+25°C±3°C) | ±5ppm FirstYear | |||
| OperatingTemperatureRange | (SeePartNumberGuideforOptions) | |||
| StorageTemperatureRange | -55°Cto+125°C | |||
| SupplyVoltage(±10%) | +1.80VDC | +2.50VDC | +3.30VDC | |
| SupplyCurrent | 1.544MHZto9.999MHZ | 10mAmax | 12mAmax | 14mAmax |
| 10.000MHZto 35.999MHZ | 12mAmax | 14mAmax | 16mAmax | |
| 36.000MHZto 49.999MHZ | 15mAmax | 20mAmax | 25mAmax | |
| 50.000MHZto 110.000MHZ | 25mAmax | 30mAmax | 35mAmax | |
| StandbyCurrent(WithStand-byOption) | 100µA | |||
| Tristate | VOH = 70% of Vdd min or No Connection to Enable Output |
|||
| VOL = 30% of Vdd max or grounded to Disable Output (High Impendence) |
||||
| Logic“0” | 10%Vddmax | |||
| Logic“1” | 90% Vddmin | |||
| OutputType | HCMOS | |||
| Symmetry(50%ofwaveform) | (SeePartNumberGuideforOptions) | |||
| Rise/Fall Time (10% to 90% of SupplyVoltage) | 5nSEC | 6nSEC | 7nSEC | |
| Load | 15pF | |||
| Start-upTime | 2mSecmax | |||
| * Inclusive of Temperature., Load andVoltage. | ||||

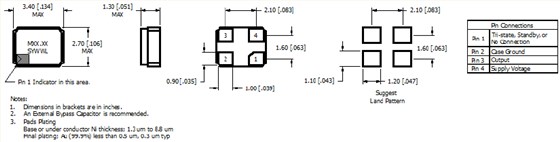

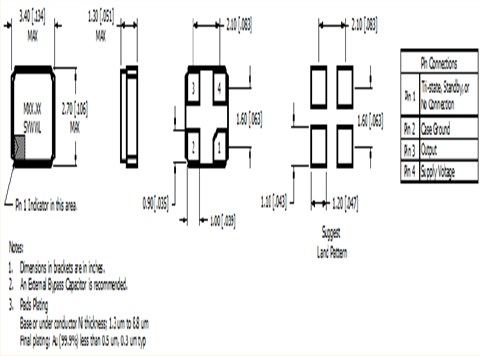

MSH302548AH-27.000MHZ-T,MSH系列3225mm晶振,Mmdcomp车载晶振,尺寸图
| 产品编码 | 品牌 | 描述 | 系列 | 频率 |
| MSH302548AH-4.000MHZ-T3 | Mmdcomp晶振 | OSC XO 4MHZ 3.3V HCMOS SMD | MSH | 4 MHz |
| MSH305048AH-48.000MHZ-T3 | Mmdcomp晶振 | OSC XO 48MHZ 3.3V CMOS SMD | MSH | 48 MHz |
| MSH302548AH-50.000MHZ-T | Mmdcomp晶振 | OSC XO 50MHZ 3.3V HCMOS SMD | MSH | 50 MHz |
| MSH302548AH-7.3728MHZ-T3 | Mmdcomp晶振 | OSC XO 7.3728MHZ 3.3V HCMOS SMD | MSH | 7.3728 MHz |
| MSH302548AH-18.432MHZ-T | Mmdcomp晶振 | OSC XO 30MHZ 3.3V HCMOS SMD | MSH | 18.432 MHz |
| MSH305048AH-14.7456MHZ-T3 | Mmdcomp晶振 | OSC XO 14.7456MHZ 3.3V CMOS SMD | MSH | 14.7456 MHz |
| MSH305048AH-50.000MHZ-T | Mmdcomp晶振 | OSC XO 50MHZ 3.3V CMOS SMD | MSH | 50 MHz |
| MSH302548AH-1.8432MHZ-T3 | Mmdcomp晶振 | OSC XO 1.8432MHZ 3.3V HCMOS SMD | MSH | 1.8432 MHz |
| MSH302548AH-32.000MHZ-T | Mmdcomp晶振 | OSC XO 32MHZ 3.3V HCMOS SMD | MSH | 32 MHz |
| MSH302548AH-33.000MHZ-T | Mmdcomp晶振 | OSC XO 33MHZ 3.3V HCMOS SMD | MSH | 33 MHz |
| MSH302548AH-27.000MHZ-T | Mmdcomp晶振 | OSC XO 50MHZ 3.3V HCMOS SMD | MSH | 27 MHz |
| MSH302548AH-40.000MHZ-T | Mmdcomp晶振 | OSC XO 48MHZ 3.3V HCMOS SMD | MSH | 40 MHz |
| MSH302548AH-12.000MHZ-T | 3225进口晶振 | OSC XO 16MHZ 3.3V HCMOS SMD | MSH | 12 MHz |
| MSH302548AH-24.576MHZ-T | Mmdcomp晶振 | OSC XO 24.5760MHZ 3.3V HCMOS SMD | MSH | 24.576 MHz |
| MSH305048AH-33.3330MHZ | Mmdcomp晶振 | OSC XO 33.333MHZ 3.3V CMOS SMD | MSH | 33.333 MHz |
| MSH302548AH-16.384MHZ-T | Mmdcomp晶振 | OSC XO 27MHZ 3.3V HCMOS SMD | MSH | 16.384 MHz |
| MSH302548AH-10.000MHZ-T | Mmdcomp晶振 | OSC XO 10MHZ 3.3V HCMOS SMD | MSH | 10 MHz |
| MSH302548AH-30.000MHZ-T | Mmdcomp晶振 | OSC XO 30MHZ 3.3V HCMOS SMD | MSH | 30 MHz |
| MSH302548AH-20.000MHZ-T | Mmdcomp晶振 | OSC XO 32MHZ 3.3V HCMOS SMD | MSH | 20 MHz |
| MSH302548AH-8.000MHZ-T | Mmdcomp晶振 | OSC XO 8MHZ 3.3V HCMOS SMD | MSH | 8 MHz |
| MSH305048AH-20.000MHZ-T | Mmdcomp晶振 | OSC XO 20MHZ 3.3V CMOS SMD | MSH | 20 MHz |
| MSH305048AH-24.000MHZ-T | Mmdcomp晶振 | OSC XO 24MHZ 3.3V CMOS SMD | MSH | 24 MHz |
| MSH302548AH-33.333MHZ-T | Mmdcomp晶振 | OSC XO 40MHZ 3.3V HCMOS SMD | MSH | 33.333 MHz |
| MSH302548AH-24.000MHZ-T | Mmdcomp晶振 | OSC XO 33MHZ 3.3V HCMOS SMD | MSH | 24 MHz |
| MSH302548AH-3.6864MHZ-T | Mmdcomp晶振 | OSC XO 3.6864MHZ 3.3V HCMOS SMD | MSH | 3.6864 MHz |
| MSH305048AH-8.000MHZ-T | Mmdcomp晶振 | OSC XO 8MHZ 3.3V CMOS SMD | MSH | 8 MHz |
| MSH302548AH-29.4912MHZ-T | Mmdcomp晶振 | OSC XO 29.491MHZ 3.3V HCMOS SMD | MSH | 29.4912 MHz |
| MSH302548AH-48.000MHZ-T | Mmdcomp晶振 | OSC XO 50MHZ 3.3V HCMOS SMD | MSH | 48 MHz |
| MSH302548AH-25.000MHZ-T | Mmdcomp晶振 | OSC XO 25MHZ 3.3V HCMOS SMD | MSH | 25 MHz |
| MSH302548AH-11.0592MHZ-T | Mmdcomp晶振 | OSC XO 12MHZ 3.3V HCMOS SMD | MSH | 11.0592 MHz |
| MSH305048AH-25.000MHZ-T | Mmdcomp晶振 | OSC XO 25MHZ 3.3V CMOS SMD | MSH | 25 MHz |
| MSH302548AH-14.31818MHZ-T | Mmdcomp晶振 | OSC XO 20MHZ 3.3V HCMOS SMD | MSH | 14.31818 MHz |
| MSH302548AH-16.000MHZ-T | Mmdcomp晶振 | OSC XO 25MHZ 3.3V HCMOS SMD | MSH | 16 MHz |
| MSH305048AH-27.000MHZ-T | Mmdcomp晶振 | OSC XO 27MHZ 3.3V CMOS SMD | MSH | 27 MHz |
| MSH302548AH-14.7456MHZ-T | Mmdcomp晶振 | OSC XO 24MHZ 3.3V HCMOS SMD | MSH | 14.7456 MHz |
| MSH305048AH-12.000MHZ-T | Mmdcomp晶振 | OSC XO 12MHZ 3.3V CMOS SMD | MSH | 12 MHz |
| MSH105048AH-24.000MHZ-T | Mmdcomp晶振 | 4 PAD CERAMIC PACKAGE, 3.2 MM X | MSH | 24 MHz |
