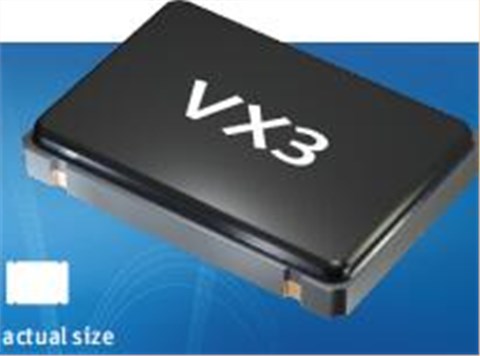

Jauch品牌|O 106.25-VX3LH-T1-LF|VX3进口晶振|6G基站晶振,Jauch品牌,VX3有源晶体振荡器,O 106.25-VX3LH-T1-LF晶振,进口贴片晶振,石英晶体振荡器,5070晶振,频率106.25MHz,电压3.3V,频率稳定性50ppm,工作温度-40~85°C,低相位噪声晶振,低功耗晶振,无铅环保晶振,6G基站晶振,移动应用晶振,消费电子产品晶振,音频系统晶振.
Jauch品牌|O 106.25-VX3LH-T1-LF|VX3进口晶振|6G基站晶振特点:
- 带有停止功能的SMD振荡器,7.0 x 5.0 mm
- 适用于扩展温度范围的首选类型
- 全陶瓷封装

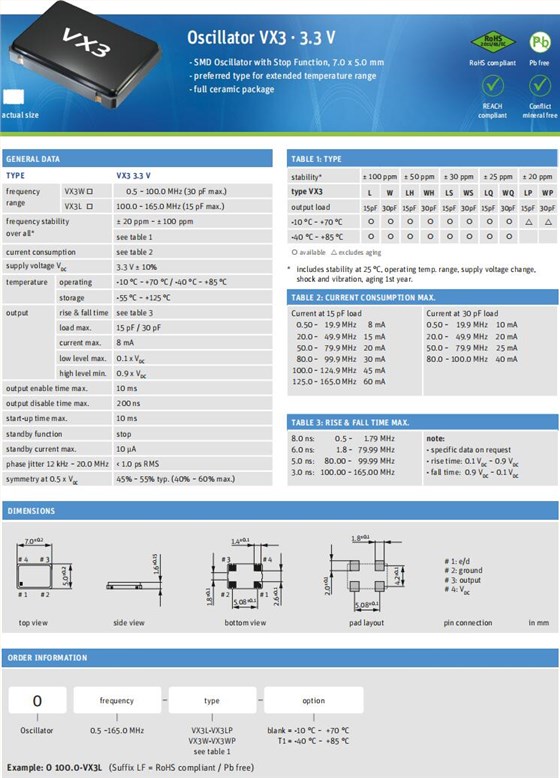

Jauch品牌|O 106.25-VX3LH-T1-LF|VX3进口晶振|6G基站晶振规格表
TYPE
VX3
frequency range
106.25 MHz
frequency stability over all*
± 50 ppm
current consumption
45 mA (100~124.9 MHz)
supply voltage VDC
3.3V (±10%)
temperature
operating
-40°C ~ +85 °C
storage
-55 °C ~ +125 °C
output
rise & fall time
3.0 ns max(100.0~165.0MHz)
load max
15 pF
current max
8mA
low level max
0.1 x VDC
high level min.
0.9 x VDC
output enable time max
10ms
output disable time max.
200ns
start-up time max
10 ms
standby function
stop
standby current max.
10 µA
phase jitter 12 kHz ~ 20.0 MHz
< 1.0 ps RMS
symmetry at 0.5 x VDC.
45 % ~ 55 %typ. (40% ~ 60% max.)

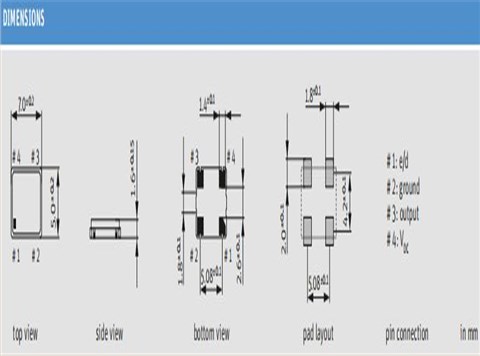

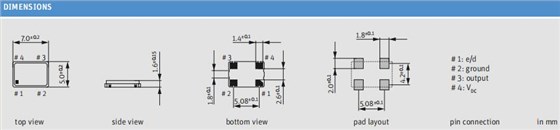

Jauch品牌|O 106.25-VX3LH-T1-LF|VX3进口晶振|6G基站晶振尺寸图
Jauch晶振原厂编码 | 制造商 | 型号 | 频率 | 频率容差 | 负载电容 | Operating Mode | 工作温度 |
Q 0.032768-JTX410-7-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-8-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-10-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-12.5-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-9-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-7-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-8-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-10-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-12.5-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-9-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-8-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-7-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-12.5-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-10-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-9-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-9-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-9-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-6-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-6-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-6-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-10-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-10-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-10-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-12.5-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX210-12.5-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX210-12.5-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-10-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-10-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-10-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 19.2-JXS22-10-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-10-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-12-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-12-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-12-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-8-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-8-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-8-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-9-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-9-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-9-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS21-12-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS21-9-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 27.12-JXS21-10-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 27.12-JXS21-12-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 27.12-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
