Hosonic品牌|D3SX37E0X0007E|3225mm|6G基站晶振,台湾Hosonic晶振,D3SX有源晶振,D3SX37E0X0007E晶振,石英晶体振荡器,3225进口晶振,四脚贴片晶振,频率37.125MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,小体积晶振,高可靠性晶振,低老化晶振,6G基站晶振,家庭安防设备晶振,低姿态应用晶振,移动通信晶振.
Hosonic品牌|D3SX37E0X0007E|3225mm|6G基站晶振特点:
- 3.2X2.5X1.2微型封装
-三态启用/禁用
-TTL / CMOS兼容
-家庭安防设备,节能应用,以及低频规格电路设计寻求更小的封装
-5.0v,3.3 v, 2.8 v (2.5 v), 1.8 v可选

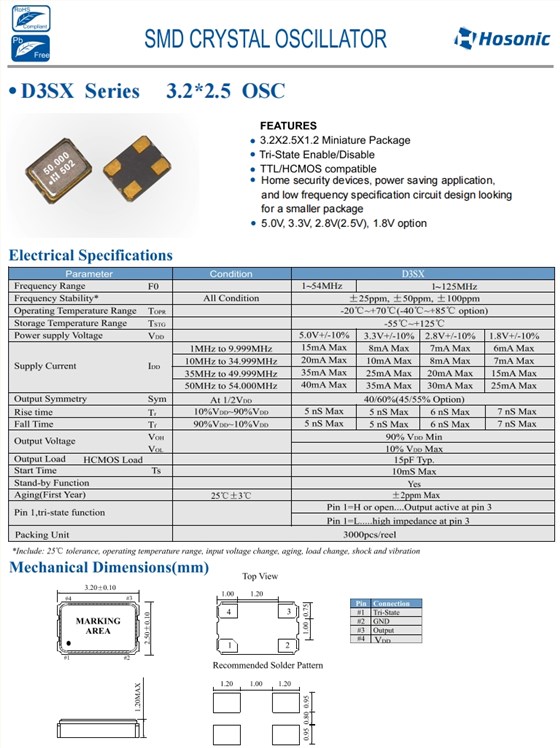

Hosonic品牌|D3SX37E0X0007E|3225mm|6G基站晶振规格表
Parameter
Condition
D3SX
Frequency Range
37.125MHz
Frequency Stability*
AIl Condition
士25ppm
Operating Temperature Range
-40°C~+85'℃
Storage Temperature Range
-55°C-+125℃
Power supply Voltage
3.3V+/-10%
Supply Current Ipo
1MHz to 9.999MHz
8mA Max
10MHz to 34.999MHz
10mA Max
35MHz 10 49.999MHz
25mA Max
50MHz to 62,500MHz
35mA Max
Output Symmetry
At 1/2Vop
40/60%(45/ /55% Option)
Rise time
10%Vpp-90%VDD
5 ns Max
Fall Time
90%Vpp-10%VDD
5 ns Max
Output Voltage
VOH
90% Vop Min
VOL
10% Voo Max
VoI Output Load
15pF Typ.
Start Time
10mS Max
Stand-by Function
Yes
Aging(First Year)
25℃+3℃
+2ppm Max
Pin 1,tri-state function
Pin 1-H or open.... Output active at pin 3
Pin 1-L......high impedance at pin 3
Packing Unit
3000pcs/reel

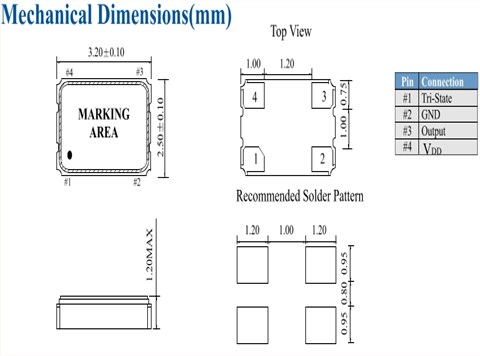

Hosonic品牌|D3SX37E0X0007E|3225mm|6G基站晶振尺寸图
