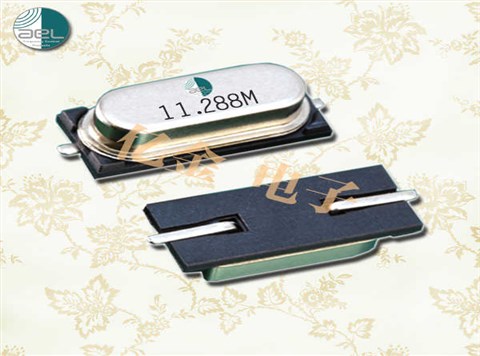

ELLS-4.000MHz-30-R120-D4-F-T,英国AEL晶振,车载电子晶振,英国进口晶振,AEL晶振,艾尔晶振,型号:ELLS系列晶振,编码为:ELLS-4.000MHz-30-R120-D4-F-T,频率为:4MHz,负载电容:30pF,频率稳定性:±50ppm,频率容差:±30ppm,工作温度范围:-40℃至+85℃,小体积晶振尺寸:12.3x4.6x4.3mm封装,两脚贴片晶振,无源晶振,椭圆形晶振,石英晶振,石英晶体谐振器,SMD晶体,无铅环保晶振。具有小体积,轻薄型,高性能,高品质,高温度等特点。被广泛应用于:通讯设备晶振,车载电子晶振,智能家居晶振,无线蓝牙晶振,物联网晶振,安防设备等应用。
ELLS-4.000MHz-30-R120-D4-F-T,英国AEL晶振,车载电子晶振,参数表

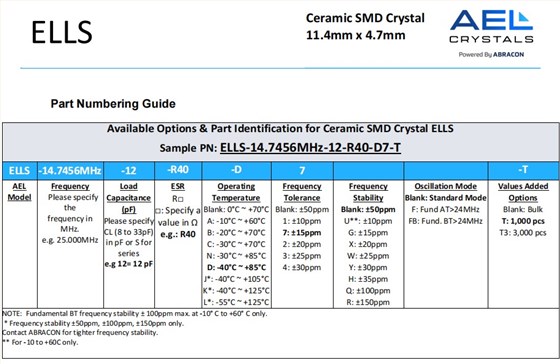

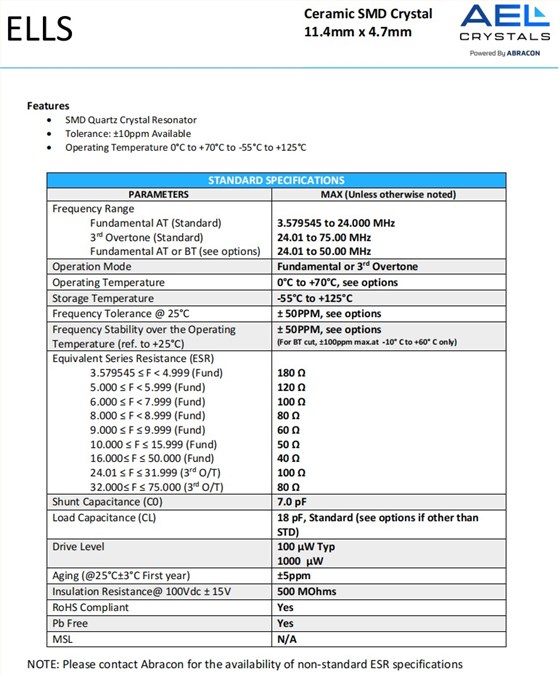

STANDARD SPECIFICATIONS | ||||||||||||||||||
PARAMETERS | MAX (Unless otherwise noted) | |||||||||||||||||
Frequency Range Fundamental AT (Standard) 3rdOvertone (Standard) Fundamental AT or BT (see options) |
4.000 MHz 24.01 to 75.00 MHz 24.01 to 50.00 MHz |
|||||||||||||||||
Operation Mode | Fundamental or 3rdOvertone | |||||||||||||||||
Operating Temperature | 0°C to +70°C, see options | |||||||||||||||||
Storage Temperature | -55°C to +125°C | |||||||||||||||||
Frequency Tolerance @ 25°C | ± 50PPM, see options | |||||||||||||||||
Frequency Stability over the Operating Temperature (ref. to +25°C) |
± 50PPM, see options (For BT cut, ±100ppm max.at -10° C to +60° C only) |
|||||||||||||||||
Equivalent Series Resistance (ESR) 3.579545 ≤ F < 4.999 (Fund) 5.000 ≤ F < 5.999 (Fund) 6.000 ≤ F < 7.999 (Fund) 8.000 ≤ F < 8.999 (Fund) 9.000 ≤ F ≤ 9.999 (Fund) 10.000 ≤ F ≤ 15.999 (Fund) 16.000≤ F ≤ 50.000 (Fund) 24.01 ≤ F ≤ 31.999 (3rdO/T) 32.000≤ F ≤ 75.000 (3rdO/T) |
180Ω 120Ω 100Ω 80Ω 60Ω 50Ω 40Ω 100Ω 80Ω |
|||||||||||||||||
Shunt Capacitance (C0) | 7.0 pF | |||||||||||||||||
Load Capacitance (CL) |
18 pF, Standard (see options if other than STD) |
|||||||||||||||||
Drive Level |
100 μWTyp 1000 μW |
|||||||||||||||||
Aging (@25°C±3°C First year) | ±5ppm | |||||||||||||||||
Insulation Resistance@ 100Vdc ± 15V | 500 MOhms | |||||||||||||||||
RoHS Compliant | Yes | |||||||||||||||||
Pb Free | Yes | |||||||||||||||||
MSL |
N/A |

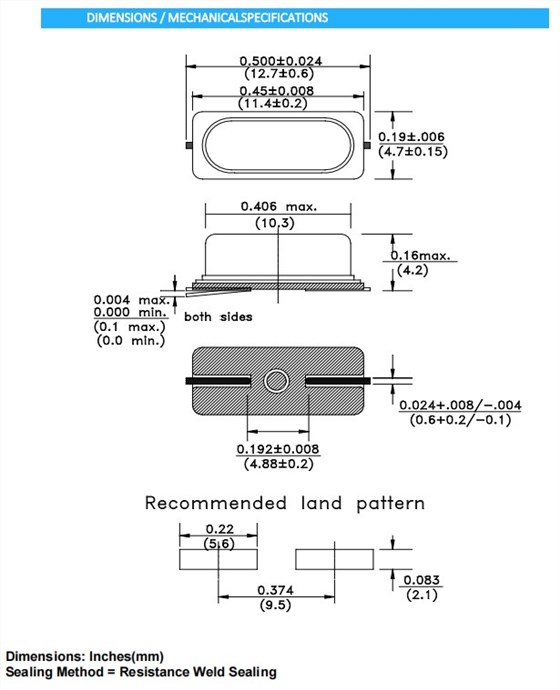

ELLS-4.000MHz-30-R120-D4-F-T,英国AEL晶振,车载电子晶振,尺寸图
产品编码 | 品牌 | 型号 | 频率 | 负载电容 | 长度 | 宽度 | 高度 |
ELLS-10.000MHz-20-R60-J-Q-F-T | AEL晶振 | ELLS | 10 MHz | 20 pF | 12.3mm | 4.6mm | 4.3mm |
ELLS-12.000MHz-18-R60-A-4-F-T | AEL晶振 | ELLS | 12 MHz | 18 pF | 12.3mm | 4.6mm | 4.3mm |
ELLS-13.560MHz-10-R35-A4Y-F-T | AEL晶振 | ELLS | 13.56 MHz | 10 pF | 12.3mm | 4.6mm | 4.3mm |
ELLS-30.000MHz-10-R50-B1U-F-T | AEL晶振 | ELLS | 30 MHz | 10 pF | 12.3mm | 4.6mm | 4.3mm |
ELLS-4.000MHz-16-R120-A4-F-T | AEL晶振 | ELLS | 4 MHz | 16 pF | 12.3mm | 4.6mm | 4.3mm |
ELLS-4.000MHz-16-R120-B1X-F-T | AEL晶振 | ELLS | 4 MHz | 16 pF | 12.3mm | 4.6mm | 4.3mm |
ELLS-4.000MHz-30-R120-D4-F-T | 石英晶体 | ELLS | 4 MHz | 30 pF | 12.3mm | 4.6mm | 4.3mm |
ELLS-8.000MHz-16-R45-D4-F-T | AEL晶振 | ELLS | 8 MHz | 16 pF | 12.3mm | 4.6mm | 4.3mm |
ELM10-16.000MHz-8-R60-2-D20-T | AEL晶振 | ELM10 | 16 MHz | 8 pF | 2.5mm | 2mm | 0.5mm |
ELM10-24.000MHz-16-R100-X-N15-T | AEL晶振 | ELM10 | 24 MHz | 16 pF | 2.5mm | 2mm | 0.5mm |
ELM11-32.000MHz-10-R60-D1X-T | AEL晶振 | ELM11 | 32 MHz | 10 pF | 2mm | 1.6mm | 0.5mm |
ELM12W-24.000MHz-6-R120-D7X-T | AEL晶振 | ELM12W | 24 MHz | 6 pF | 1.6mm | 1.2mm | 0.4mm |
ELM3-12.000MHz-30-R80-D4Y-T | AEL晶振 | ELM3 | 12 MHz | 30 pF | 5mm | 3.2mm | 1mm |
ELM3-14.000MHz-30-R80-D4H-T | AEL晶振 | ELM3 | 14 MHz | 30 pF | 5mm | 3.2mm | 1mm |
ELM3-24.000MHz-18-R40-D4H-T | AEL晶振 | ELM3 | 24 MHz | 18 pF | 5mm | 3.2mm | 1mm |
ELM3-8.057MHz-18-R100-B4Y-T | AEL晶振 | ELM3 | 8.057 MHz | 18 pF | 5mm | 3.2mm | 1mm |
