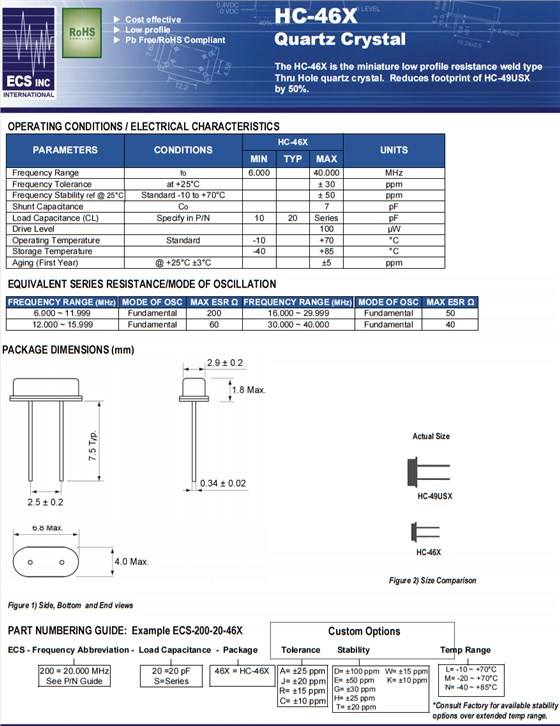

ECS-196.6-20-46X,19.6608MHz,20PF,50PPM,ECS，美国进口ECS晶振,HC-46X是一种小型低压电阻焊缝型穿孔石英晶体。将HC-49USX的占用面积减少50%。成本效益高，低调的，无铅/RoHS兼容。
ECS-196.6-20-46X,19.6608MHz,20PF,50PPM,ECS
| 参数 | 环境 | HC-46X | 单位 | ||
| 最小值 | 典型的 | 最大值 | |||
| 频率 | fo | 6.000 | 40.000 | MHz | |
| 频率容差 | at +25°C | ± 30 | ppm | ||
| 频率偏差度 | Standard -10 to +70°C | ± 50 | ppm | ||
| 并联电容 | Co | 7 | pF | ||
| 负载电容 | Specify in P/N | 10 | 20 | Series | pF |
| 驱动电平 | 100 | µW | |||
| 工作温度 | Standard | --10 | +70 | °C | |
| 储存温度 | --40 | +85 | °C | ||
| 老化 | @ +25°C ±3°C | ±5 | ppm | ||
ECS-196.6-20-46X,19.6608MHz,20PF,50PPM,ECS
| ECS原厂编码 | 型号 | 频率 | 频率容差 | 频率偏差度 | 负载电容 | 工作温度 |
| ECS-120-20-46X | HC-46X | 12MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-122.8-20-46X | HC-46X | 12.288MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-130-20-46X | HC-46X | 13MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-135.6-20-46X | HC-46X | 13.56MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-143-20-46X | HC-46X | 14.31818MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-147.4-20-46X | HC-46X | 14.7456MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-160-20-46X | HC-46X | 16MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-184-20-46X | HC-46X | 18.432MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-196.6-20-46X | HC-46X | 19.6608MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-200-20-46X | HC-46X | 20MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-245.7-20-46X | HC-46X | 24.576MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-250-20-46X | HC-46X | 25MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-270-20-46X | HC-46X | 27MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-286.3-20-46X | HC-46X | 28.63636MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-300-20-46X | HC-46X | 30MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-330-20-46X | HC-46X | 33MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-400-20-46X | HC-46X | 40MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-10-13-1H | HC-49U(H) | 1MHz | ±25ppm | ±30ppm | 13pF | -10°C ~ 70°C |
| ECS-100-18-4-DN | HC-49US-DN | 10MHz | ±100ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-110.5-32-4DN | HC-49US-DN | 11.0592MHz | ±100ppm | ±30ppm | 32pF | -40°C ~ 85°C |
| ECS-120-20-4DN | HC-49US-DN | 12MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-143-20-4DN | HC-49US-DN | 14.31818MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-160-20-4DN | HC-49US-DN | 16MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-184-20-4DN | HC-49US-DN | 18.432MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-196.6-20-4DN | HC-49US-DN | 19.6608MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-200-20-4DN | HC-49US-DN | 20MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-240-20-4DN | HC-49US-DN | 24MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-35-17-4DN | HC-49US-DN | 3.579545MHz | ±100ppm | ±30ppm | 17pF | -40°C ~ 85°C |
| ECS-36-20-4DN | HC-49US-DN | 3.6864MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-40-20-4DN | HC-49US-DN | 4MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-60-32-4DN | HC-49US-DN | 6MHz | ±100ppm | ±30ppm | 32pF | -40°C ~ 85°C |
| ECS-73-20-4DN | HC-49US-DN | 7.3728MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-80-18-4DN | HC-49US-DN | 8MHz | ±100ppm | ±30ppm | 18pF | -40°C ~ 85°C |
| ECS-100-20-4VX | HC-49USSX | 10MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-110.5-20-4VX | HC-49USSX | 11.0592MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-120-18-4VX | HC-49USSX | 12MHz | ±50ppm | ±30ppm | 18pF | -10°C ~ 70°C |
| ECS-120-32-4VX | HC-49USSX | 12MHz | ±50ppm | ±30ppm | 32pF | -10°C ~ 70°C |
| ECS-122.8-20-4VX | HC-49USSX | 12.288MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-143-20-4VX | HC-49USSX | 14.31818MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-147.4-20-4VX | HC-49USSX | 14.7456MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-160-20-4VX | HC-49USSX | 16MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-184-20-4VX | HC-49USSX | 18.432MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-200-20-4VX | HC-49USSX | 20MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-240-20-4VX | HC-49USSX | 24MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-245.7-20-4VX | HC-49USSX | 24.576MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-250-20-4VX | HC-49USSX | 25MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-270-20-4VX | HC-49USSX | 27MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-35-18-4VX | HC-49USSX | 3.579545MHz | ±50ppm | ±30ppm | 18pF | -10°C ~ 70°C |
| ECS-36-20-4VX | HC-49USSX | 3.6864MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-40-20-4VX | HC-49USSX | 4MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-60-20-4VX | HC-49USSX | 6MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-80-20-4VX | HC-49USSX | 8MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-98.3-20-4VX | HC-49USSX | 9.8304MHz | ±50ppm | ±30ppm | 20pF | -10°C ~ 70°C |
| ECS-110.5-20-4XDN | HC-49USX-DN | 11.0592MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-120-20-4XDN | HC-49USX-DN | 12MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-143-20-4XDN | HC-49USX-DN | 14.31818MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-160-20-4X-B-DN | HC-49USX-DN | 16MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-160-20-4XDN | HC-49USX-DN | 16MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-184-20-4XDN | HC-49USX-DN | 18.432MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-196.6-20-4XDN | HC-49USX-DN | 19.6608MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-200-20-4XDN | HC-49USX-DN | 20MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-240-20-4XDN | HC-49USX-DN | 24MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-245.7-20-4XDN | HC-49USX-DN | 24.576MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-250-20-4X-F-DN | HC-49USX-DN | 25MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-35-17-4XDN | HC-49USX-DN | 3.579545MHz | ±100ppm | ±30ppm | 17pF | -40°C ~ 85°C |
| ECS-36-20-4XDN | HC-49USX-DN | 3.6864MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-40-20-4XDN | HC-49USX-DN | 4MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-60-32-4XDN | HC-49USX-DN | 6MHz | ±100ppm | ±30ppm | 32pF | -40°C ~ 85°C |
| ECS-73-20-4XDN | HC-49USX-DN | 7.3728MHz | ±100ppm | ±30ppm | 20pF | -40°C ~ 85°C |
| ECS-80-18-4XDN | HC-49USX-DN | 8MHz | ±100ppm | ±30ppm | 18pF | -40°C ~ 85°C |
