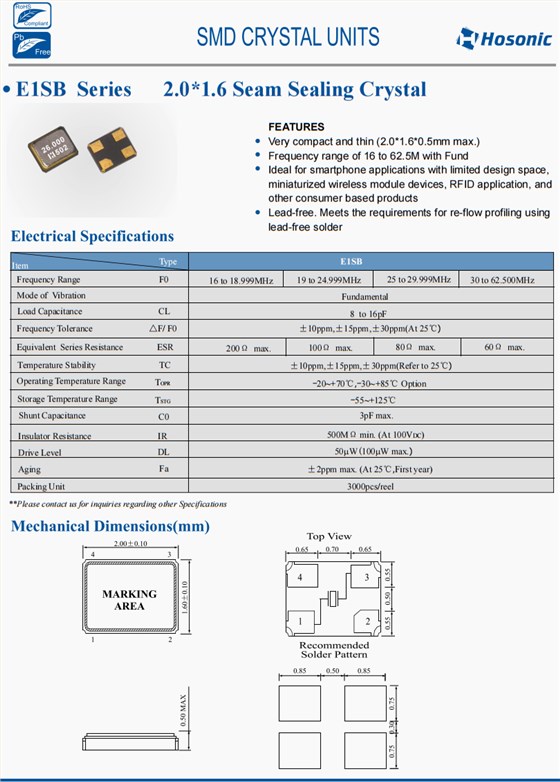

鸿星超小型晶振,遥遥领先的无人机模块晶振,E1SB48E000008E四脚晶振,台湾鸿星晶振公司,Hosonic晶振,石英晶振,高品质晶振,低损耗晶振,低插损晶振,2016贴片晶振,无源晶振,贴片晶振,小尺寸晶振,2016晶振,环保无铅晶振,高精度晶振,无人机高清摄像模块晶振,北斗卫星定位模块晶振,台湾鸿星晶振公司,特点:非常紧凑,非常薄(最大2.0 *1.6*0.5mm),频率范围为16至62.5M,非常适合设计空间有限的智能手机应用,小型化无线模块设备,RFID应用和其他消费类产品。满足使用无铅焊料的回流剖面要求。
鸿星超小型晶振,遥遥领先的无人机模块晶振,E1SB48E000008E四脚晶振
项目 | 标志 | E1SB | |||
频率范围 | F0 | 16 to 18.999MHz | 19 to 24.999MHz | 25 to 29.999MHz | 30 to 62.500MHz |
工作模式 | Fundamental | ||||
负载电容 | CL | 8to 16pF | |||
频率容差 | ΔF/ F0 | ±10ppm, ±15ppm, ±30ppm(At 25℃) | |||
等效串联电阻 | ESR | 200Ω max. | 100Ω max. | 80Ω max. | 60Ω max. |
温度稳定度 | TC | ±10ppm, ±15ppm, ±30ppm(Refer to 25℃) | |||
工作温度范围 | TOPR | -20~+70℃,-30~+85℃ Option | |||
储存温度范围 | TSTG | -55~+125℃ | |||
分流电容 | C0 | 3pF max. | |||
绝缘电阻 | IR | 500MΩ min. (At 100VDC) | |||
驱动电平 | DL | 50μW(100μW max.) | |||
老化 | Fa | ±2ppm max. (At 25℃,First year) | |||
包装单位 | 3000pcs/reel |
鸿星超小型晶振,遥遥领先的无人机模块晶振,E1SB48E000008E四脚晶振
鸿星原厂编码 | 生产商品牌 | 型号 | 频率 | 频率稳定度 | 频率容差 | 负载电荷 | 工作温度 |
E1SB24E00001EE | Hosonic晶振 | E1SB | 24 MHz | ±30ppm | ±30ppm | 18pF | -40°C ~ 85°C |
E1SB26E007902E | Hosonic晶振 | E1SB | 26 MHz | ±15ppm | ±10ppm | 9pF | -40°C ~ 85°C |
E1SB60E003701E | Hosonic晶振 | E1SB | 60 MHz | ±20ppm | ±10ppm | 9pF | -30°C ~ 105°C |
E1SB55E0X0002E | Hosonic晶振 | E1SB | 55.2 MHz | ±10ppm | ±10ppm | 10pF | -30°C ~ 85°C |
E1SB24E000007E | Hosonic晶振 | E1SB | 24 MHz | ±10ppm | ±10ppm | 10pF | -30°C ~ 85°C |
E1SB25E000009E | Hosonic晶振 | E1SB | 25 MHz | ±30ppm | ±30ppm | 6pF | -30°C ~ 85°C |
E1SB24E004000E | Hosonic晶振 | E1SB | 24 MHz | ±10ppm | ±10ppm | 18pF | -30°C ~ 85°C |
E1SB38E0X0001E | Hosonic晶振 | E1SB | 38.4 MHz | ±10ppm | ±10ppm | 10pF | -30°C ~ 85°C |
E1SB39E000000E | Hosonic晶振 | E1SB | 39 MHz | ±13ppm | ±8ppm | 10pF | -40°C ~ 90°C |
E1SB40E00090AECBB8 | Hosonic晶振 | E1SB | 40 MHz | ±20ppm | ±10ppm | 12pF | -30°C ~ 105°C |
E1SB48E000506E | Hosonic晶振 | E1SB | 48 MHz | ±16ppm | ±8ppm | 11.1pF | -40°C ~ 105°C |
E1SB25E001000E | Hosonic晶振 | E1SB | 25 MHz | ±30ppm | ±30ppm | 18pF | -20°C ~ 70°C |
E1SB32E007900E | Hosonic晶振 | E1SB | 32 MHz | ±15ppm | ±10ppm | 10pF | -40°C ~ 85°C |
E1SB32E001502E | Hosonic晶振 | E1SB | 32 MHz | ±20ppm | ±10ppm | 12pF | -40°C ~ 105°C |
E1SB37E0X0002E | Hosonic晶振 | E1SB | 37.4 MHz | ±10ppm | ±10ppm | 16pF | -30°C ~ 85°C |
E1SB32E001501ECBB8 | Hosonic晶振 | E1SB | 32 MHz | ±10ppm | ±10ppm | 9pF | -20°C ~ 70°C |
E1SB16E000004E | Hosonic晶振 | E1SB | 16 MHz | ±10ppm | ±10ppm | 8pF | -20°C ~ 70°C |
E1SB40E001202E | Hosonic晶振 | E1SB | 40 MHz | ±17ppm | ±10ppm | 8pF | -40°C ~ 105°C |
E1SB16E000005E | Hosonic晶振 | E1SB | 16 MHz | ±10ppm | ±10ppm | 10pF | -20°C ~ 70°C |
E1SB16E000008E | Hosonic晶振 | E1SB | 16 MHz | ±10ppm | ±10ppm | 12pF | -20°C ~ 70°C |
E1SB24E00000EE | Hosonic晶振 | E1SB | 24 MHz | ±20ppm | ±30ppm | 20pF | -20°C ~ 70°C |
E1SB24E00000PE | Hosonic晶振 | E1SB | 24 MHz | ±30ppm | ±30ppm | 16pF | -20°C ~ 70°C |
E1SB24E000009E | Hosonic晶振 | E1SB | 24 MHz | ±10ppm | ±10ppm | 12pF | -20°C ~ 70°C |
E1SB24E000011E | Hosonic晶振 | E1SB | 24 MHz | ±10ppm | ±10ppm | 8pF | -30°C ~ 85°C |
E1SB24E000012E | Hosonic晶振 | E1SB | 24 MHz | ±10ppm | ±10ppm | 9pF | -30°C ~ 85°C |
E1SB24E000901E | Hosonic晶振 | E1SB | 24 MHz | ±10ppm | ±10ppm | 12pF | -30°C ~ 85°C |
E1SB25E00000NE | Hosonic晶振 | E1SB | 25 MHz | ±10ppm | ±10ppm | 12pF | -20°C ~ 70°C |
E1SB26E000006E | Hosonic晶振 | E1SB | 26 MHz | ±10ppm | ±10ppm | 16pF | -30°C ~ 85°C |
E1SB27E00000FE | Hosonic晶振 | E1SB | 27 MHz | ±10ppm | ±10ppm | 10pF | -20°C ~ 70°C |
E1SB32E00000AE | Hosonic晶振 | E1SB | 32 MHz | ±10ppm | ±15ppm | 10pF | -40°C ~ 85°C |
E1SB32E000016E | Hosonic晶振 | E1SB | 32 MHz | ±10ppm | ±10ppm | 9pF | -30°C ~ 85°C |
E1SB37E0X0009E | Hosonic晶振 | E1SB | 37.4 MHz | ±10ppm | ±10ppm | 12pF | -30°C ~ 85°C |
E1SB38E0X000EE | Hosonic晶振 | E1SB | 38.4 MHz | ±8ppm | ±10ppm | 12pF | -30°C ~ 85°C |
E1SB38E0X0001E | Hosonic晶振 | E1SB | 38.4 MHz | ±10ppm | ±10ppm | 10pF | -30°C ~ 85°C |
E1SB40E000000E | Hosonic晶振 | E1SB | 40 MHz | ±10ppm | ±10ppm | 8pF | -30°C ~ 85°C |
E1SB40E00000AE | Hosonic晶振 | E1SB | 40 MHz | ±10ppm | ±10ppm | 12pF | -30°C ~ 85°C |
E1SB40E00000CE | Hosonic晶振 | E1SB | 40 MHz | ±10ppm | ±10ppm | 10pF | -20°C ~ 85°C |
E1SB40E00001AE | Hosonic晶振 | E1SB | 40 MHz | ±10ppm | ±10ppm | 9pF | -30°C ~ 85°C |
E1SB48E000006E | Hosonic晶振 | E1SB | 48 MHz | ±8ppm | ±10ppm | 7pF | -30°C ~ 85°C |
E1SB48E000008E | Hosonic晶振 | E1SB | 48 MHz | ±8ppm | ±10ppm | 10pF | -30°C ~ 85°C |
E1SB50E000000E | Hosonic晶振 | E1SB | 50 MHz | ±10ppm | ±15ppm | 7pF | -30°C ~ 85°C |
E1SB50E00000DE | Hosonic晶振 | E1SB | 50 MHz | ±10ppm | ±10ppm | 15pF | -30°C ~ 85°C |
