CWX823-012.288M,7050mm,ConnorWinfield高稳定性晶振,12.288MHz

CWX823-012.288M,7050mm,ConnorWinfield高稳定性晶振,12.288MHzCWX823-012.288M,7050mm,ConnorWinfield高稳定性晶振,12.288MHz

产品简介

CWX823-012.288M,7050mm,ConnorWinfield高稳定性晶振,12.288MHz美国进口晶振,ConnorWinfield晶振,康纳温菲尔德晶振,型号:CWX8xx系列,编码为:CWX823-012.288M,频率:12.288MHz,工作电压:3.3V,频率稳定性:±50ppm,工作温度范围:-20℃至+70℃,小体积晶振尺寸:7.0x5.0mm安装石英晶振,四脚贴片晶振,有源晶振,CMOS输出晶振,固定频率晶体控制石英晶体振荡器(XO)。设计用于需要紧密的频率稳定性和低抖动的应用程序。表面安装包是设计为高密度安装,是最佳的大规模生产。符合RoHS标准,应用于:通讯设备晶振,无线蓝牙晶振,车载控制器,物联网等应用。

产品详情

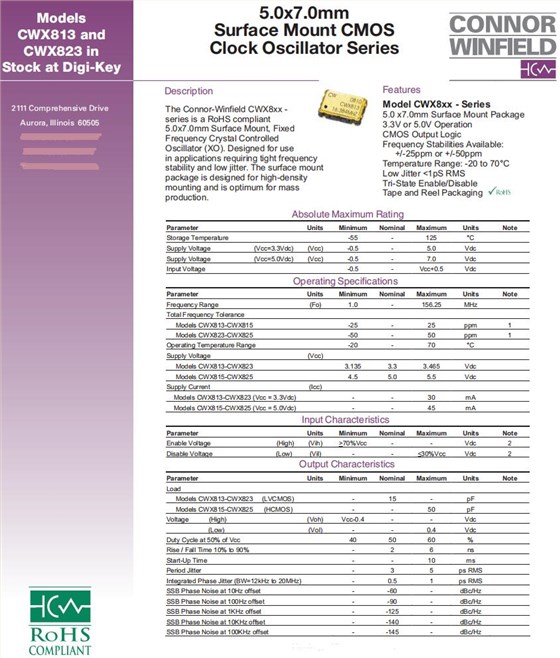

SITIME-2

yijin-1

CWX823-012.288M,7050mm,ConnorWinfield高稳定性晶振,12.288MHz美国进口晶振,ConnorWinfield晶振,康纳温菲尔德晶振,型号:CWX8xx系列,编码为:CWX823-012.288M,频率:12.288MHz,工作电压:3.3V,频率稳定性:±50ppm,工作温度范围:-20℃至+70℃,小体积晶振尺寸:7.0x5.0mm安装石英晶振,四脚贴片晶振,有源晶振,CMOS输出晶振,固定频率晶体控制石英晶体振荡器(XO)。设计用于需要紧密的频率稳定性和低抖动的应用程序。表面安装包是设计为高密度安装,是最佳的大规模生产。符合RoHS标准,应用于:通讯设备晶振,无线蓝牙晶振,车载控制器,物联网等应用。

CWX823-012.288M,7050mm,ConnorWinfield高稳定性晶振,12.288MHz,产品特点:

CWX8xx型-系列,5.0x7.0mm表面安装封装

3.3V或5.0V操作,CMOS输出贴片晶振

可用频率稳定性:+/-25ppm 或 +/-50ppm

温度范围:-20至70°C

低抖动<1pS RMS,三态启用/禁用,胶带和卷轴包装

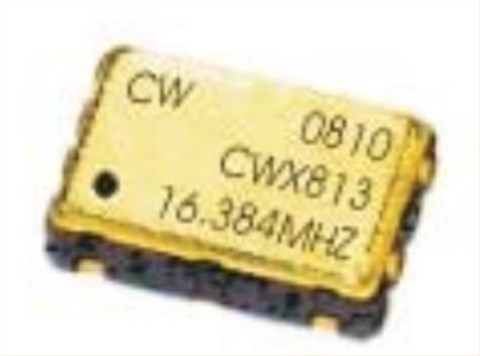

yijin-2

CWX823-012.288M,7050mm,ConnorWinfield高稳定性晶振,12.288MHz,参数表

型号 CWX823
频率 12.288 MHz
电源电压 3.3V
输入电压 Vcc+0.5
输出 CMOS
工作温度 -20 °C ~ +70 °C
保存温度 -55 °C ~ +125 °C

yijin-3

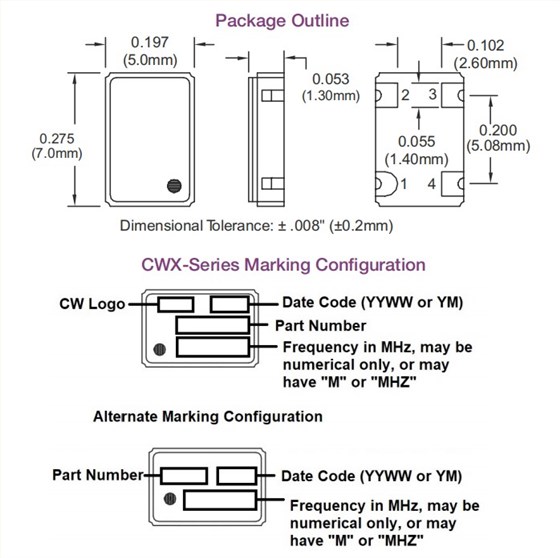

CWX823-012.288M,7050mm,ConnorWinfield高稳定性晶振,12.288MHz,尺寸图

CWX813,CWX823,CWX815,CWX825.7050CWX813,CWX823,CWX815,CWX825

进口晶振编码 品牌 型号 频率 工作温度
CWX823-012.0M ConnorWinfield晶振 CWX823 12MHz -20°C ~ 70°C
CWX823-024.0M ConnorWinfield晶振 CWX823 24MHz -20°C ~ 70°C
CWX823-050.0M ConnorWinfield晶振 CWX823 50MHz -20°C ~ 70°C
CWX823-032.768M ConnorWinfield晶振 CWX823 32.768MHz -20°C ~ 70°C
CWX823-018.432M ConnorWinfield晶振 CWX823 18.432MHz -20°C ~ 70°C
CWX823-049.152M ConnorWinfield晶振 CWX823 49.152MHz -20°C ~ 70°C
CWX823-016.0M ConnorWinfield晶振 CWX823 16MHz -20°C ~ 70°C
CWX823-012.288M ConnorWinfield晶振 CWX823 12.288MHz -20°C ~ 70°C
CWX823-020.0M ConnorWinfield晶振 CWX823 20MHz -20°C ~ 70°C
CWX823-027.0M ConnorWinfield晶振 CWX823 27MHz -20°C ~ 70°C
CWX823-033.333M ConnorWinfield晶振 CWX823 33.333MHz -20°C ~ 70°C
CWX823-100.0M ConnorWinfield晶振 CWX823 100MHz -20°C ~ 70°C
CWX823-001.544M ConnorWinfield晶振 CWX823 1.544MHz -20°C ~ 70°C
CWX823-040.0M ConnorWinfield晶振 CWX823 40MHz -20°C ~ 70°C
CWX823-033.0M ConnorWinfield晶振 CWX823 33MHz -20°C ~ 70°C
CWX823-004.0M ConnorWinfield晶振 CWX823 4MHz -20°C ~ 70°C
CWX823-025.0M ConnorWinfield晶振 CWX823 25MHz -20°C ~ 70°C
CWX823-001.8432M ConnorWinfield晶振 CWX823 1.8432MHz -20°C ~ 70°C
CWX823-064.0M ConnorWinfield晶振 CWX823 64MHz -20°C ~ 70°C
CWX823-125.0M ConnorWinfield晶振 CWX823 125MHz -20°C ~ 70°C
CWX823-156.25M ConnorWinfield晶振 CWX823 156.25MHz -20°C ~ 70°C
CWX823-010.0M ConnorWinfield晶振 CWX823 10MHz -20°C ~ 70°C
CWX823-029.4912M ConnorWinfield晶振 CWX823 29.4912MHz -20°C ~ 70°C
CWX823-060.0M ConnorWinfield晶振 CWX823 60MHz -20°C ~ 70°C
CWX823-024.576M ConnorWinfield晶振 CWX823 24.576MHz -20°C ~ 70°C
CWX823-008.0M ConnorWinfield晶振 CWX823 8MHz -20°C ~ 70°C
CWX823-007.3728M ConnorWinfield晶振 CWX823 7.3728MHz -20°C ~ 70°C
CWX823-066.6666M ConnorWinfield晶振 CWX823 66.6666MHz -20°C ~ 70°C
CWX823-032.0M ConnorWinfield晶振 CWX823 32MHz -20°C ~ 70°C
CWX823-080.0M ConnorWinfield晶振 CWX823 80MHz -20°C ~ 70°C
CWX823-016.384M ConnorWinfield晶振 CWX823 16.384MHz -20°C ~ 70°C
CWX823-030.0M ConnorWinfield晶振 CWX823 30MHz -20°C ~ 70°C
CWX823-044.736M ConnorWinfield晶振 CWX823 44.736MHz -20°C ~ 70°C
CWX823-003.6864M ConnorWinfield晶振 CWX823 3.6864MHz -20°C ~ 70°C
CWX823-014.31818M ConnorWinfield晶振 CWX823 14.31818MHz -20°C ~ 70°C
CWX823-015.36M ConnorWinfield晶振 CWX823 15.36MHz -20°C ~ 70°C
CWX823-019.44M ConnorWinfield晶振 CWX823 19.44MHz -20°C ~ 70°C
CWX823-020.48M ConnorWinfield晶振 CWX823 20.48MHz -20°C ~ 70°C
CWX823-045.0M ConnorWinfield晶振 CWX823 45MHz -20°C ~ 70°C
CWX823-072.0M ConnorWinfield晶振 CWX823 72MHz -20°C ~ 70°C
