CSM4Z-A2B3C3-40-14.7456D18,Cardinal表面贴装水晶,蓝牙晶振,美国进口晶振,Cardinal晶振,卡迪纳尔晶振,型号:CSM4系列,编码为:CSM4Z-A2B3C3-40-14.7456D18,频率:14.7456MHz,频率稳定性:±30ppm,工作温度范围:-40℃至+85℃,负载电容:18pF,小体积晶振尺寸:12.5x4.5mm金属包装,是一款椭圆形金属壳封装石英晶体,低轮廓表面安装晶体,两脚贴片晶振,无源晶振,石英晶振,石英晶体谐振器,无铅环保晶振,SMD晶体,谐振器。被广泛用于:通讯设备晶振,无线晶振,蓝牙模块晶振,无线局域网晶振,MPU,微控制器,机顶盒等应用.

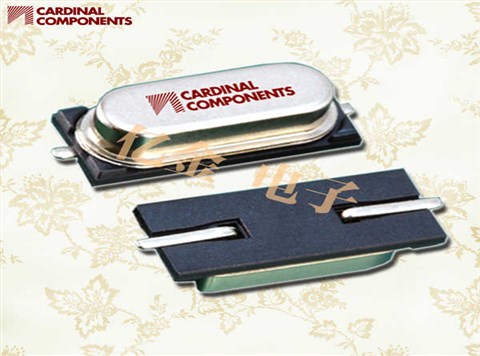

CSM4Z-A2B3C3-40-14.7456D18,Cardinal表面贴装水晶,蓝牙晶振,产品特点:
•薄型表面贴装水晶
•封装是自动表面安装组件和回流焊实践的理想选择
•CSM1-4.6毫米;CSM4-3.5毫米;CSM5-3.0mm高
•AT切割水晶,贴片晶振
•频率范围:3.579545MHz至80MHz

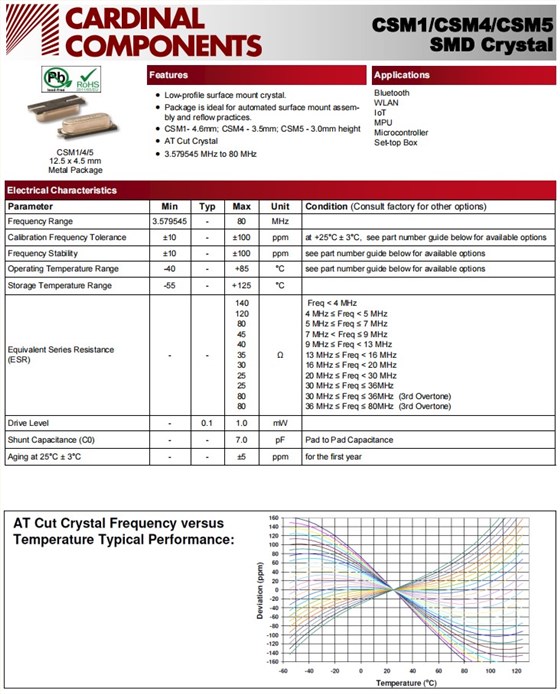

CSM4Z-A2B3C3-40-14.7456D18,Cardinal表面贴装水晶,蓝牙晶振,参数表
Parameter | Min | Typ | Max | Unit | Condition(Consult factory for other options) | |||||||||||||||||||||||
Frequency Range |
|
|
14.7456 |
MHz | ||||||||||||||||||||||||
Calibration Frequency Tolerance | ±10 | - | ±100 | ppm | at +25°C ± 3°C,see part number guide below for available options | |||||||||||||||||||||||
Frequency Stability | ±10 | - | ±100 | ppm | see part number guide below for available options | |||||||||||||||||||||||
Operating Temperature Range | -40 | - | +85 | °C | see part number guide below for available options | |||||||||||||||||||||||
Storage Temperature Range | -55 | - | +125 | °C | ||||||||||||||||||||||||
Equivalent Series Resistance (ESR) |
- | - |
140 120 80 45 40 35 30 25 25 80 80 |
Ω |
Freq < 4 MHz 4 MHz ≤ Freq < 5 MHz 5 MHz ≤ Freq ≤ 7 MHz 7 MHz < Freq ≤ 9 MHz 9 MHz ≤ Freq < 13 MHz 13 MHz ≤ Freq < 16 MHz 16 MHz ≤ Freq < 20 MHz 20 MHz ≤ Freq < 30 MHz 30 MHz ≤ Freq ≤ 36MHz 30 MHz ≤ Freq ≤ 36MHz(3rd Overtone) 36 MHz ≤ Freq ≤ 80MHz(3rd Overtone) |
|||||||||||||||||||||||
Drive Level | - | 0.1 | 1.0 | mW | ||||||||||||||||||||||||
Shunt Capacitance (C0) | - | - | 7.0 | pF | Pad to Pad Capacitance | |||||||||||||||||||||||
Aging at 25°C ± 3°C | - | - | ±5 | ppm | for the first year |

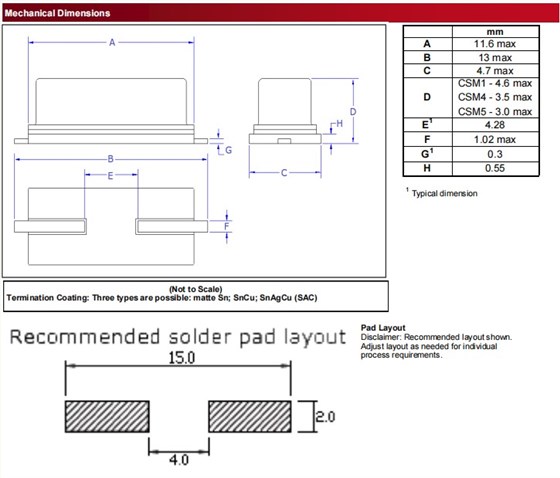

CSM4Z-A2B3C3-40-14.7456D18,Cardinal表面贴装水晶,蓝牙晶振,尺寸图

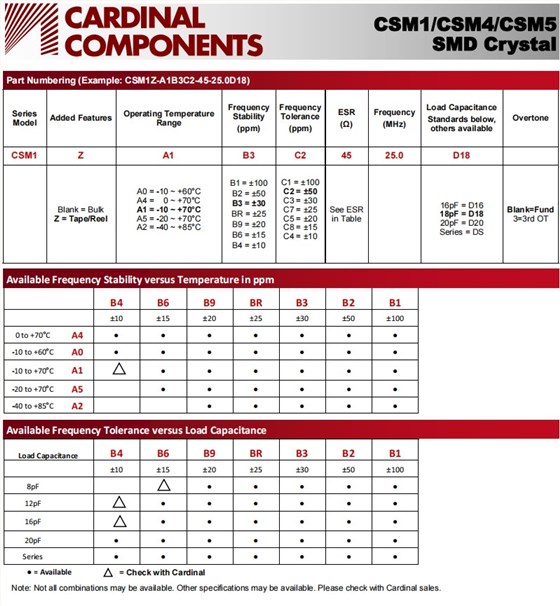

进口晶振编码 | 厂家 | 型号 | 系列 | 频率 |
CSM4Z-A2B3C3-40-12.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 12MHz |
CSM4Z-A2B3C3-40-25.0D18-F | Cardinal晶振 | CSM4 | MHz Crystal | 25MHz |
CSM4Z-A2B3C3-40-10.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 10MHz |
CSM4Z-A2B3C3-40-20.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 20MHz |
CSM4Z-A2B3C3-60-6.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 6MHz |
CSM4Z-A2B3C3-60-8.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 8MHz |
CSM4Z-A2B3C3-40-29.49152D18-F | Cardinal晶振 | CSM4 | MHz Crystal | 29.49152MHz |
CSM4Z-A2B3C3-40-26.0D18-F | Cardinal晶振 | CSM4 | MHz Crystal | 26MHz |
CSM4Z-A2B3C3-180-4.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 4MHz |
CSM4Z-A2B3C3-60-9.8304D18 | Cardinal晶振 | CSM4 | MHz Crystal | 9.8304MHz |
CSM4Z-A2B3C3-40-11.0592D18 | Cardinal晶振 | CSM4 | MHz Crystal | 11.0592MHz |
CSM4Z-A2B3C3-40-16.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 16MHz |
CSM4Z-A2B3C3-60-7.3728D18 | Cardinal晶振 | CSM4 | MHz Crystal | 7.3728MHz |
CSM4Z-A2B3C3-40-14.7456D18 | Cardinal晶振 | CSM4 | MHz Crystal | 14.7456MHz |
CSM4Z-A2B3C3-40-33.0D18 | Cardinal晶振 | CSM4 | MHz Crystal | 33MHz |
