CPFBZ-A2C4-32.768KD12.5,32.768kHz,Cardinal小体积晶振,电脑晶振

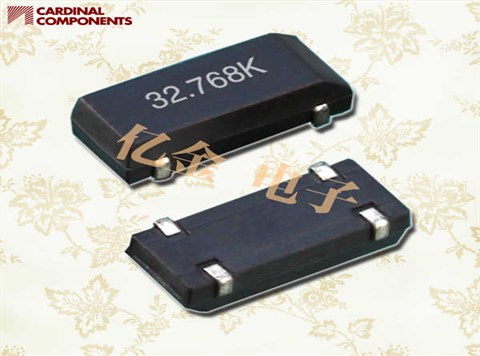

CPFBZ-A2C4-32.768KD12.5,32.768kHz,Cardinal小体积晶振,电脑晶振，美国进口晶振，Cardinal卡迪纳尔晶振，型号：CPFB，编码为：CPFBZ-A2C4-32.768KD12.5，频率为：32.768KHz时钟晶振，工作温度范围：-40℃至+85℃，负载：12.5pF，小体积晶振尺寸：8.7x3.7x2.4mm陶瓷SMD封装，四脚贴片晶振，无源晶振，石英晶振，SMD晶振，音叉晶体，石英晶体谐振器。具有超小型，轻薄型，高性能，高品质，高质量，耐热及耐环境等特点。被广泛应用于：通讯设备晶振，RTC应用，时钟晶振，电脑晶振，仪器仪表设备，数字显示等应用。

CPFBZ-A2C4-32.768KD12.5,32.768kHz,Cardinal小体积晶振,电脑晶振，产品特点：

•封装是自动化表面安装组装和回流实践的理想选择

•超小型石英晶振

•行业标准足迹

•频率：32.768kHz

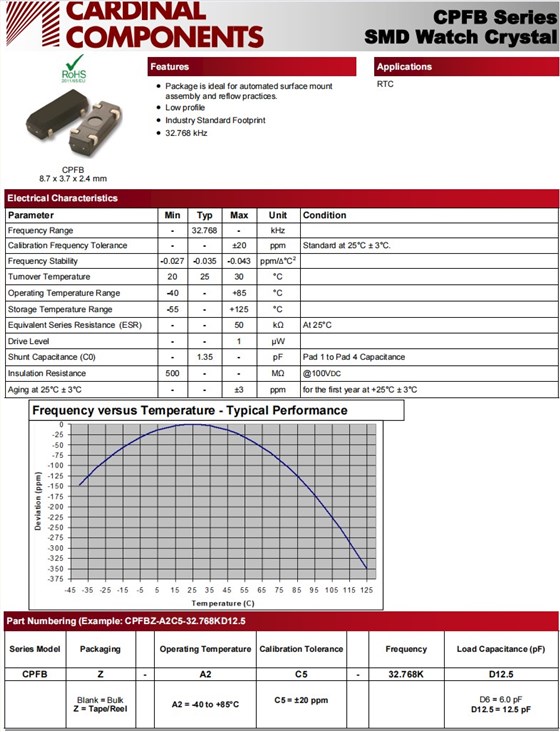

CPFBZ-A2C4-32.768KD12.5,32.768kHz,Cardinal小体积晶振,电脑晶振,参数表

Parameter									Min	Typ		Max	Unit		Condition
Frequency Range									-	32.768		-	kHz
Calibration Frequency Tolerance									-	-		±20	ppm		Standard at 25°C ± 3°C.
Frequency Stability									-0.027	-0.035		-0.043	ppm/△°C2
Turnover Temperature									20	25		30	°C
Operating Temperature Range									-40	-		+85	°C
Storage Temperature Range									-55	-		+125	°C
Equivalent Series Resistance(ESR)									-	-		50	kΩ		At 25°C
Drive Level									-	-		1	µW
Shunt Capacitance (C0)									-	1.35		-	pF		Pad 1 to Pad 4 Capacitance
Insulation Resistance									500	-		-	MΩ		@100VDC
Aging at 25°C ± 3°C									-	-		±3	ppm		for the first year at +25°C ± 3°C

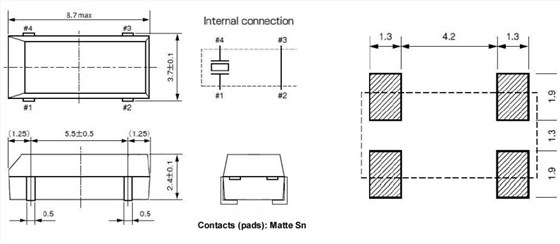

CPFBZ-A2C4-32.768KD12.5,32.768kHz,Cardinal小体积晶振,电脑晶振,尺寸图
