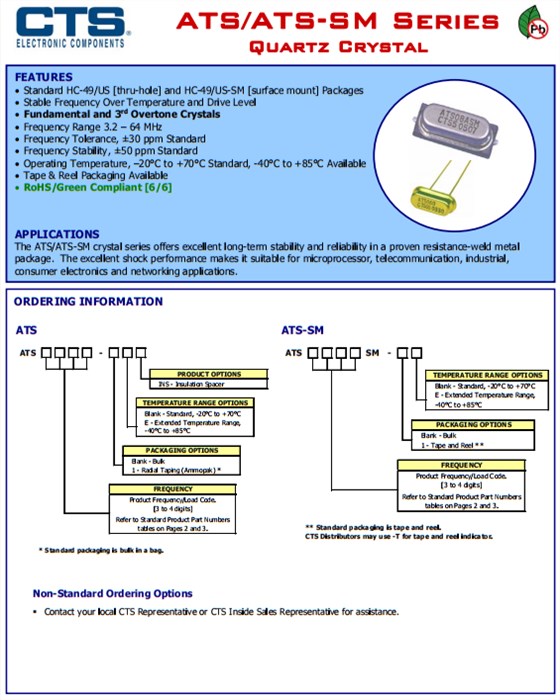

ATS061B-E|6.144MHz|30PPM|18PF|-40~85℃|49S,CTS晶振,标准HC-49/US[通孔]和HC-49/US-SM[表面安装]包稳定频率超过温度和驱动水平基础和第三泛音晶体频率范围3.2-64MHz频率容差,±30 ppm标准频率稳定性,±50 ppm标准工作温度,-20°+70°C标准,-40°+85°C可用磁带和卷轴包装可用RoHS/绿色兼容[6/6],ATS/ATS-SM晶体系列在一个可靠的电阻焊接金属封装中提供了良好的长期稳定性和可靠性。优异的冲击性能使其适用于微处理器、电信、工业、消费电子和网络应用。
ATS061B-E|6.144MHz|30PPM|18PF|-40~85℃|49S
参数 | 数值 |
频率范围 | 3.2 MHz to 64.0 MHz |
工作模式 | Fundamental or 3rd Overtone |
晶体切向 | AT-Cut |
频率容差@ +25°C | ± 30 ppm Standard * |
频率稳定公差(工作温度参考25°C读数) | ± 50 ppm Standard * |
工作温度范围 |
-20°C to +70°C * -40°C to +85°C Available, See Ordering Information |
等效串联电阻 | See ESR Table |
负载电容或共振模式 | See Standard Part Numbers tables * |
分流电容(C0) | 7.0 pF Maximum |
驱动电平 | 100 µW Typical, 1,000 µW Maximum |
老化 | ±3 ppm/yr Typical, ±5 ppm/yr Maximum |
绝缘电阻 | 500 Ohms @ DC 100V |
储存温度范围 | -40°C to +85°C |
回流条件,根据JEDEC J-STD-020 | +260°C Maximum, 10 Seconds Maximum |
ATS061B-E|6.144MHz|30PPM|18PF|-40~85℃|49S
CTS原厂编码 | 生产厂家 | 型号 | 频率 | 频率偏差 | 负载电容 | ESR (Equivalent Series Resistance)电阻 | Operating Temperature工作温度 |
ATS16B | CTS晶振 | ATS | 16MHz | ±30ppm | 18pF | 40 Ohm | -20°C ~ 70°C |
ATS073-E | CTS晶振 | ATS | 7.3728MHz | ±30ppm | 20pF | 80 Ohm | -40°C ~ 85°C |
ATS080B | CTS晶振 | ATS | 8MHz | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
ATS100B-E | CTS晶振 | ATS | 10MHz | ±30ppm | 18pF | 60 Ohm | -40°C ~ 85°C |
ATS061B-E | CTS晶振 | ATS | 6.144MHz | ±30ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
ATS080C | CTS晶振 | ATS | 8MHz | ±30ppm | 32pF | 60 Ohm | -20°C ~ 70°C |
ATS040 | CTS晶振 | ATS | 4MHz | ±30ppm | 20pF | 120 Ohm | -20°C ~ 70°C |
ATS200C | CTS晶振 | ATS | 20MHz | ±30ppm | 18pF | 30 Ohm | -20°C ~ 70°C |
ATS147B | CTS晶振 | ATS | 14.7456MHz | ±30ppm | 18pF | 40 Ohm | -20°C ~ 70°C |
ATS12A | CTS晶振 | ATS | 12MHz | ±30ppm | 20pF | 40 Ohm | -20°C ~ 70°C |
ATS042 | CTS晶振 | ATS | 4.9152MHz | ±30ppm | 20pF | 120 Ohm | -20°C ~ 70°C |
ATS245A | CTS晶振 | ATS | 24.576MHz | ±30ppm | 18pF | 30 Ohm | -20°C ~ 70°C |
ATS120B | CTS晶振 | ATS | 12MHz | ±30ppm | 18pF | 40 Ohm | -20°C ~ 70°C |
ATS25A-E | CTS晶振 | ATS | 25MHz | ±30ppm | 20pF | 30 Ohm | -40°C ~ 85°C |
ATS040-E | CTS晶振 | ATS | 4MHz | ±30ppm | 20pF | 120 Ohm | -40°C ~ 85°C |
ATS204 | CTS晶振 | ATS | 20.48MHz | ±30ppm | 20pF | 30 Ohm | -20°C ~ 70°C |
ATS08A | CTS晶振 | ATS | 8MHz | ±30ppm | 20pF | 60 Ohm | -20°C ~ 70°C |
ATS10A-E | CTS晶振 | ATS | 10MHz | ±30ppm | 20pF | 60 Ohm | -40°C ~ 85°C |
ATS250-E | CTS晶振 | ATS | 25MHz | ±30ppm | Series | 30 Ohm | -40°C ~ 85°C |
ATS147B-E | CTS晶振 | ATS | 14.7456MHz | ±30ppm | 18pF | 40 Ohm | -40°C ~ 85°C |
ATS080B-E | CTS晶振 | ATS | 8MHz | ±30ppm | 18pF | 60 Ohm | -40°C ~ 85°C |
ATS250B-E | CTS晶振 | ATS | 25MHz | ±30ppm | 18pF | 30 Ohm | -40°C ~ 85°C |
ATS100 | CTS晶振 | ATS | 10MHz | ±30ppm | Series | 60 Ohm | -20°C ~ 70°C |
ATS100B | CTS晶振 | ATS | 10MHz | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
ATS120B-E | CTS晶振 | ATS | 12MHz | ±30ppm | 18pF | 40 Ohm | -40°C ~ 85°C |
ATS16B-E | CTS晶振 | ATS | 16MHz | ±30ppm | 18pF | 40 Ohm | -40°C ~ 85°C |
ATS037 | CTS晶振 | ATS | 3.6864MHz | ±30ppm | 20pF | 150 Ohm | -20°C ~ 70°C |
ATS240B | CTS晶振 | ATS | 24MHz | ±30ppm | 18pF | 30 Ohm | -20°C ~ 70°C |
ATS040B-E | CTS晶振 | ATS | 4MHz | ±30ppm | 18pF | 120 Ohm | -40°C ~ 85°C |
ATS143B | CTS晶振 | ATS | 14.31818MHz | ±30ppm | 18pF | 40 Ohm | -20°C ~ 70°C |
ATS036 | CTS晶振 | ATS | 3.579545MHz | ±30ppm | 18pF | 150 Ohm | -20°C ~ 70°C |
ATS037B-E | CTS晶振 | ATS | 3.6864MHz | ±30ppm | 18pF | 150 Ohm | -40°C ~ 85°C |
ATS036-E | CTS晶振 | ATS | 3.579545MHz | ±30ppm | 18pF | 150 Ohm | -40°C ~ 85°C |
ATS080 | CTS晶振 | ATS | 8MHz | ±30ppm | Series | 60 Ohm | -20°C ~ 70°C |
ATS040B | CTS晶振 | ATS | 4MHz | ±30ppm | 18pF | 120 Ohm | -20°C ~ 70°C |
ATS037-E | CTS晶振 | ATS | 3.6864MHz | ±30ppm | 20pF | 150 Ohm | -40°C ~ 85°C |
ATS037B | CTS晶振 | ATS | 3.6864MHz | ±30ppm | 18pF | 150 Ohm | -20°C ~ 70°C |
ATS19A-E | CTS晶振 | ATS | 19.6608MHz | ±30ppm | 20pF | 40 Ohm | -40°C ~ 85°C |
ATS098 | CTS晶振 | ATS | 9.8304MHz | ±30ppm | 20pF | 60 Ohm | -20°C ~ 70°C |
ATS143B-E | CTS晶振 | ATS | 14.31818MHz | ±30ppm | 18pF | 40 Ohm | -40°C ~ 85°C |
ATS037A-E | CTS晶振 | ATS | 3.6864MHz | ±30ppm | Series | 150 Ohm | -40°C ~ 85°C |
ATS147-E | CTS晶振 | ATS | 14.7456MHz | ±30ppm | Series | 40 Ohm | -40°C ~ 85°C |
ATS120 | CTS晶振 | ATS | 12MHz | ±30ppm | Series | 40 Ohm | -20°C ~ 70°C |
ATS20B-E | CTS晶振 | ATS | 20MHz | ±30ppm | 50pF | 30 Ohm | -40°C ~ 85°C |
ATS036B | CTS晶振 | ATS | 3.579545MHz | ±30ppm | Series | 150 Ohm | -20°C ~ 70°C |
ATS245-E | CTS晶振 | ATS | 24.576MHz | ±30ppm | Series | 30 Ohm | -40°C ~ 85°C |
ATS111-E | CTS晶振 | ATS | 11.0592MHz | ±30ppm | 20pF | 60 Ohm | -40°C ~ 85°C |
ATS08A-E | CTS晶振 | ATS | 8MHz | ±30ppm | 20pF | 60 Ohm | -40°C ~ 85°C |
ATS111 | CTS晶振 | ATS | 11.0592MHz | ±30ppm | 20pF | 60 Ohm | -20°C ~ 70°C |
ATS200 | CTS晶振 | ATS | 20MHz | ±30ppm | Series | 30 Ohm | -20°C ~ 70°C |
ATS073B-E | CTS晶振 | ATS | 7.3728MHz | ±30ppm | 18pF | 80 Ohm | -40°C ~ 85°C |
ATS18A | CTS晶振 | ATS | 18.432MHz | ±30ppm | 20pF | 40 Ohm | -20°C ~ 70°C |
ATS24B-E | CTS晶振 | ATS | 24.576MHz | ±30ppm | 20pF | 30 Ohm | -40°C ~ 85°C |
ATS22A-E | CTS晶振 | ATS | 22.1184MHz | ±30ppm | 20pF | 30 Ohm | -40°C ~ 85°C |
ATS184-E | CTS晶振 | ATS | 18.432MHz | ±30ppm | Series | 40 Ohm | -40°C ~ 85°C |
ATS16A | CTS晶振 | ATS | 16MHz | ±30ppm | 20pF | 40 Ohm | -20°C ~ 70°C |
ATS250 | CTS晶振 | ATS | 25MHz | ±30ppm | Series | 30 Ohm | -20°C ~ 70°C |
ATS184 | CTS晶振 | ATS | 18.432MHz | ±30ppm | Series | 40 Ohm | -20°C ~ 70°C |
ATS18A-E | CTS晶振 | ATS | 18.432MHz | ±30ppm | 20pF | 40 Ohm | -40°C ~ 85°C |
ATS250B | CTS晶振 | ATS | 25MHz | ±30ppm | 18pF | 30 Ohm | -20°C ~ 70°C |
ATS037A | CTS晶振 | ATS | 3.6864MHz | ±30ppm | Series | 150 Ohm | -20°C ~ 70°C |
ATS12A-E | CTS晶振 | ATS | 12MHz | ±30ppm | 20pF | 40 Ohm | -40°C ~ 85°C |
ATS080C-E | CTS晶振 | ATS | 8MHz | ±30ppm | 32pF | 60 Ohm | -40°C ~ 85°C |
ATS122B | CTS晶振 | ATS | 12.288MHz | ±30ppm | 18pF | 40 Ohm | -20°C ~ 70°C |
ATS240C-E | CTS晶振 | ATS | 24MHz | ±30ppm | 12pF | 30 Ohm | -40°C ~ 85°C |
ATS200C-E | CTS晶振 | ATS | 20MHz | ±30ppm | 18pF | 30 Ohm | -40°C ~ 85°C |
ATS060 | CTS晶振 | ATS | 6MHz | ±30ppm | 20pF | 80 Ohm | -20°C ~ 70°C |
ATS098B | CTS晶振 | ATS | 9.8304MHz | ±30ppm | 18pF | 60 Ohm | -20°C ~ 70°C |
ATS061B | CTS晶振 | ATS | 6.144MHz | ±30ppm | 18pF | 80 Ohm | -20°C ~ 70°C |
ATS098B-E | CTS晶振 | ATS | 9.8304MHz | ±30ppm | 18pF | 60 Ohm | -40°C ~ 85°C |
ATS20B | CTS晶振 | ATS | 20MHz | ±30ppm | 50pF | 30 Ohm | -20°C ~ 70°C |
ATS073 | CTS晶振 | ATS | 7.3728MHz | ±30ppm | 20pF | 80 Ohm | -20°C ~ 70°C |
ATS073B | CTS晶振 | ATS | 7.3728MHz | ±30ppm | 18pF | 80 Ohm | -20°C ~ 70°C |
ATS196B | CTS晶振 | ATS | 19.6608MHz | ±30ppm | 18pF | 40 Ohm | -20°C ~ 70°C |
ATS111A-E | CTS晶振 | ATS | 11.0592MHz | ±30ppm | Series | 60 Ohm | -40°C ~ 85°C |
