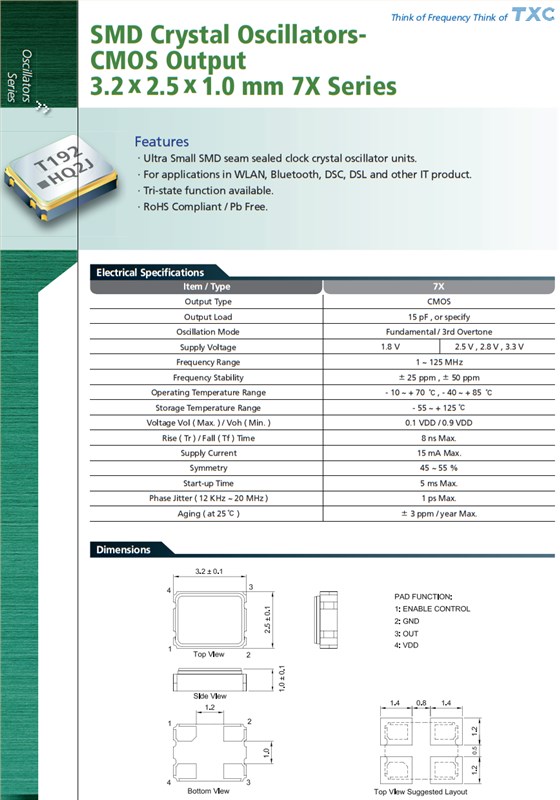

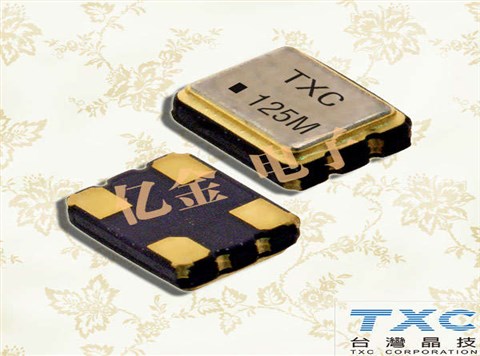

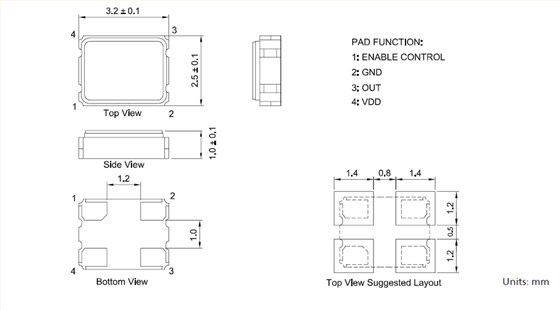

TXC|7X-50.000MBE-T|3225|50M|50PPM|-40~85℃，台湾晶技晶振,有源晶振,特点,频率范围: 1MHz至133MHZ ,SMD接缝密封陶瓷封装供应,voltage: 1.8V~33V ,CMOS输出二态功能可用的,外部尺寸 (mm) L: 3.2xW: 2.5xH:1.0,RoHS兼容和无Pb标准,应用程序,网络、服务器、存储和无线通信光纤通道，以太网，SATA，SAS，PCI-E，USB，WLANxDSL，XPON PC主板，笔记本电脑，硬盘，SSD，显卡计算机外设音频，视频，游戏，打印机，DSC，IP CAM，消费产品
TXC|7X-50.000MBE-T|3225|50M|50PPM|-40~85℃
| 项目 | 7X | 环境 |
| 频率 | 50MHz | |
| 频率容差 | ±50 , ±25 ppm | - 10°C ~ +70°C; Note [1] |
| ±50 , ±25 , ±20 ppm | -40°C ~ +85°C; Note [1] | |
| 工作温度下的频率偏差度 | - 10°C ~ +70°C | |
| -40°C ~ +85°C | ||
| 电源电压 | 1.8V, 2.5V, 3.3V | VDD ± 10% |
| 电流损耗量 | 10 mA Max. | 1MHz ~ 75MHz |
| 15 mA Max. | 75MHz ~ 133MHz | |
| 输出类型 | CMOS | |
| 输出负载 | 15 pF | |
| 输出电压高 | 90% VDDMin. | |
| 输出电压低 | 10% VDDMax. | |
| 上升和下降时间 | 8 ns Max. | 10% ~ 90% of VDD |
| 占空因数 | 45% ~ 55% | |
| 启动时间 | 5 ms Max. | |
| 启动电压过高，逻辑值为"1" | 70% VDDMin. |
Input to Pin1 Note [2] |
| 启动电压过低，逻辑值为"0" | 30% VDDMax. | |
| 相位抖动,RMS | 1 ps Max. | Note [3] |
| 老化 | ±3 ppm Max. | at 25°C±3°C,first year |
| 绝缘电阻 | -55°C ~ +125°C |
TXC|7X-50.000MBE-T|3225|50M|50PPM|-40~85℃
| 原厂代码 | 生产商品牌 | 型号 | 类型 | 频率 | 频率稳定度 | 工作温度 |
| 7X-19.200MBB-T | TXC晶振 | 7X | XO (Standard) | 19.2MHz | ±50ppm | -10°C ~ 70°C |
| 7X-19.200MBB-T | TXC晶振 | 7X | XO (Standard) | 19.2MHz | ±50ppm | -10°C ~ 70°C |
| 7X-19.200MBB-T | TXC晶振 | 7X | XO (Standard) | 19.2MHz | ±50ppm | -10°C ~ 70°C |
| 7X-30.000MBB-T | TXC晶振 | 7X | XO (Standard) | 30MHz | ±50ppm | -10°C ~ 70°C |
| 7X-30.000MBB-T | TXC晶振 | 7X | XO (Standard) | 30MHz | ±50ppm | -10°C ~ 70°C |
| 7X-30.000MBB-T | TXC晶振 | 7X | XO (Standard) | 30MHz | ±50ppm | -10°C ~ 70°C |
| 7X-38.400MBA-T | TXC晶振 | 7X | XO (Standard) | 38.4MHz | ±25ppm | -10°C ~ 70°C |
| 7X-38.400MBA-T | TXC晶振 | 7X | XO (Standard) | 38.4MHz | ±25ppm | -10°C ~ 70°C |
| 7X-38.400MBA-T | TXC晶振 | 7X | XO (Standard) | 38.4MHz | ±25ppm | -10°C ~ 70°C |
| 7X-19.200MBA-T | TXC晶振 | 7X | XO (Standard) | 19.2MHz | ±25ppm | -10°C ~ 70°C |
| 7X-19.200MBA-T | TXC晶振 | 7X | XO (Standard) | 19.2MHz | ±25ppm | -10°C ~ 70°C |
| 7X-19.200MBA-T | TXC晶振 | 7X | XO (Standard) | 19.2MHz | ±25ppm | -10°C ~ 70°C |
| 7X-20.000MBE-T | TXC晶振 | 7X | XO (Standard) | 20MHz | ±50ppm | -40°C ~ 85°C |
| 7X-20.000MBE-T | TXC晶振 | 7X | XO (Standard) | 20MHz | ±50ppm | -40°C ~ 85°C |
| 7X-20.000MBE-T | TXC晶振 | 7X | XO (Standard) | 20MHz | ±50ppm | -40°C ~ 85°C |
| 7X-20.000MBB-T | TXC晶振 | 7X | XO (Standard) | 20MHz | ±50ppm | -10°C ~ 70°C |
| 7X-20.000MBB-T | TXC晶振 | 7X | XO (Standard) | 20MHz | ±50ppm | -10°C ~ 70°C |
| 7X-20.000MBB-T | TXC晶振 | 7X | XO (Standard) | 20MHz | ±50ppm | -10°C ~ 70°C |
| 7X-19.200MBE-T | TXC晶振 | 7X | XO (Standard) | 19.2MHz | ±50ppm | -40°C ~ 85°C |
| 7X-19.200MBE-T | TXC晶振 | 7X | XO (Standard) | 19.2MHz | ±50ppm | -40°C ~ 85°C |
| 7X-19.200MBE-T | TXC晶振 | 7X | XO (Standard) | 19.2MHz | ±50ppm | -40°C ~ 85°C |
| 7X-30.000MBE-T | TXC晶振 | 7X | XO (Standard) | 30MHz | ±50ppm | -40°C ~ 85°C |
| 7X-30.000MBE-T | TXC晶振 | 7X | XO (Standard) | 30MHz | ±50ppm | -40°C ~ 85°C |
| 7X-30.000MBE-T | TXC晶振 | 7X | XO (Standard) | 30MHz | ±50ppm | -40°C ~ 85°C |
| 7X-25.000MBE-T | TXC晶振 | 7X | XO (Standard) | 25MHz | ±50ppm | -40°C ~ 85°C |
| 7X-25.000MBE-T | TXC晶振 | 7X | XO (Standard) | 25MHz | ±50ppm | -40°C ~ 85°C |
| 7X-25.000MBE-T | TXC晶振 | 7X | XO (Standard) | 25MHz | ±50ppm | -40°C ~ 85°C |
| 7X-38.400MBE-T | TXC晶振 | 7X | XO (Standard) | 38.4MHz | ±50ppm | -40°C ~ 85°C |
| 7X-38.400MBE-T | TXC晶振 | 7X | XO (Standard) | 38.4MHz | ±50ppm | -40°C ~ 85°C |
| 7X-38.400MBE-T | TXC晶振 | 7X | XO (Standard) | 38.4MHz | ±50ppm | -40°C ~ 85°C |
| 7X-48.000MBE-T | TXC晶振 | 7X | XO (Standard) | 48MHz | ±50ppm | -40°C ~ 85°C |
| 7X-48.000MBE-T | TXC晶振 | 7X | XO (Standard) | 48MHz | ±50ppm | -40°C ~ 85°C |
| 7X-48.000MBE-T | TXC晶振 | 7X | XO (Standard) | 48MHz | ±50ppm | -40°C ~ 85°C |
| 7X-50.000MBE-T | TXC晶振 | 7X | XO (Standard) | 50MHz | ±50ppm | -40°C ~ 85°C |
| 7X-50.000MBE-T | TXC晶振 | 7X | XO (Standard) | 50MHz | ±50ppm | -40°C ~ 85°C |
| 7X-50.000MBE-T | TXC晶振 | 7X | XO (Standard) | 50MHz | ±50ppm | -40°C ~ 85°C |
| 7X-26.000MBE-T | TXC晶振 | 7X | XO (Standard) | 26MHz | ±50ppm | -40°C ~ 85°C |
| 7X-26.000MBE-T | TXC晶振 | 7X | XO (Standard) | 26MHz | ±50ppm | -40°C ~ 85°C |
| 7X-26.000MBE-T | TXC晶振 | 7X | XO (Standard) | 26MHz | ±50ppm | -40°C ~ 85°C |
| 7X-24.576MBB-T | TXC晶振 | 7X | XO (Standard) | 24.576MHz | ±50ppm | -10°C ~ 70°C |
| 7X-24.576MBB-T | TXC晶振 | 7X | XO (Standard) | 24.576MHz | ±50ppm | -10°C ~ 70°C |
| 7X-24.576MBB-T | TXC晶振 | 7X | XO (Standard) | 24.576MHz | ±50ppm | -10°C ~ 70°C |
| 7X-12.000MBB-T | TXC晶振 | 7X | XO (Standard) | 12MHz | ±50ppm | -10°C ~ 70°C |
| 7X-12.000MBB-T | TXC晶振 | 7X | XO (Standard) | 12MHz | ±50ppm | -10°C ~ 70°C |
| 7X-12.000MBB-T | TXC晶振 | 7X | XO (Standard) | 12MHz | ±50ppm | -10°C ~ 70°C |
| 7X-50.000MBB-T | TXC晶振 | 7X | XO (Standard) | 50MHz | ±50ppm | -10°C ~ 70°C |
| 7X-50.000MBB-T | TXC晶振 | 7X | XO (Standard) | 50MHz | ±50ppm | -10°C ~ 70°C |
| 7X-50.000MBB-T | TXC晶振 | 7X | XO (Standard) | 50MHz | ±50ppm | -10°C ~ 70°C |
| 7X-25.000MBB-T | TXC晶振 | 7X | XO (Standard) | 25MHz | ±50ppm | -10°C ~ 70°C |
| 7X-25.000MBB-T | TXC晶振 | 7X | XO (Standard) | 25MHz | ±50ppm | -10°C ~ 70°C |
