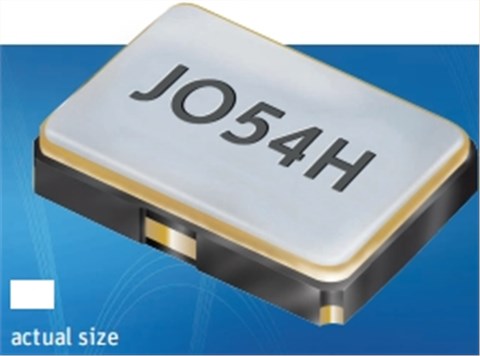

O 40.0-JO54H-F-2.5-1-LF,Jauch品牌,6G移动无线电晶振,Jauch品牌,JO54H进口有源晶振,O 40.0-JO54H-F-2.5-1-LF晶振,石英晶体振荡器,5032贴片晶振,贴片石英晶振,频率40MHz,电压2.5V,频率稳定性10ppm,工作温度-20~70°C,高可靠性晶振,高品质晶振,低电压晶振,6G移动无线电晶振,消费电子产品晶振,数字设备晶振,智能家居晶振.
O 40.0-JO54H-F-2.5-1-LF,Jauch品牌,6G移动无线电晶振特点:
-高稳定性振荡器与停止功能•5.0 x 3.2毫米
-稳定性适合无线应用(蓝牙,WiFi等)
- LVCMOS / HCMOS兼容输出
-低相位抖动,无锁相环
-接缝密封陶瓷/金属封装

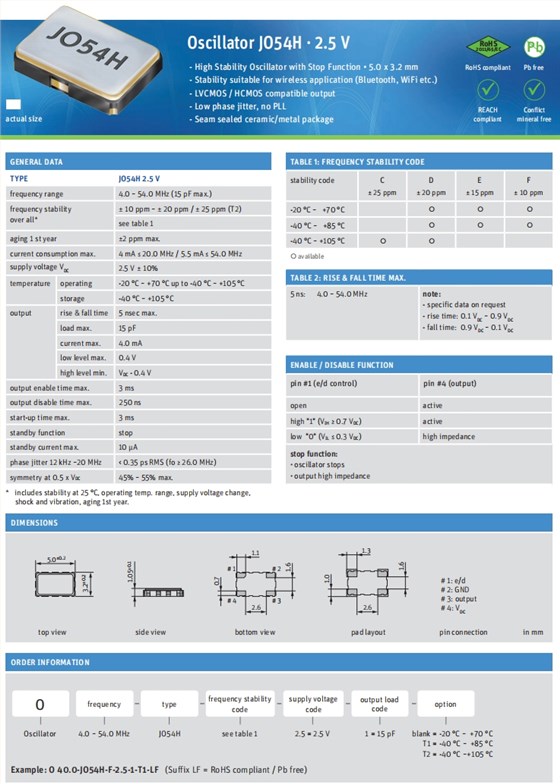

O 40.0-JO54H-F-2.5-1-LF,Jauch品牌,6G移动无线电晶振规格表
项目
符号
规格说明
额定频率
f_nom
40MHz
电源电压
Vcc
2.5V
储存温度
T_stg
-40℃~+105℃
工作温度
T_use
-20℃~ +70℃
频率稳定性
f_tol
±10 ppm
电源电流
IDD
5.0mA Max
对称性(占空比)
SYM
45% ~ 55%max.
上升下降时间
tr/tf
5 ns
起始时间
t str
3ms Max
相位抖动
tpj
< 0.4ps RMS

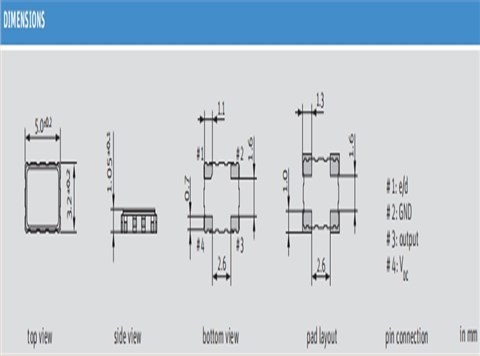

O 40.0-JO54H-F-2.5-1-LF,Jauch品牌,6G移动无线电晶振尺寸图
Jauch晶振原厂编码 | 制造商 | 型号 | 频率 | 频率容差 | 负载电容 | Operating Mode | 工作温度 |
Q 0.032768-JTX410-7-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-8-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-10-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-12.5-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-9-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-7-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-8-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-10-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-12.5-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-9-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-8-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-7-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-12.5-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-10-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-9-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-9-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-9-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-6-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-6-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-6-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-10-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-10-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-10-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-12.5-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX210-12.5-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX210-12.5-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-10-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-10-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-10-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 19.2-JXS22-10-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-10-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-12-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-12-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-12-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-8-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-8-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-8-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-9-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-9-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-9-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS21-12-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS21-9-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 27.12-JXS21-10-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 27.12-JXS21-12-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 27.12-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
