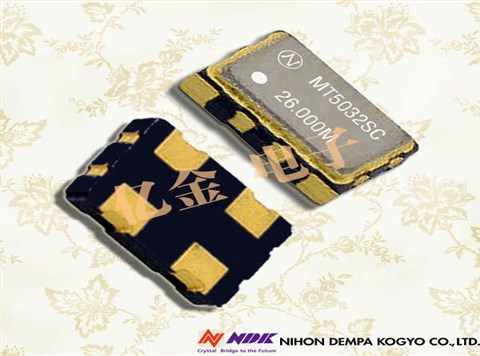

NDK晶振型号 |
NT2016SA(TCXO) |
|
输出频率范围 |
10~52MHz |
|
标准频率 |
16.368M/16.369M/19.2M/26M/33.6M/38.4M/52M |
|
电源电压范围 |
+1.68~+3.5V |
|
电源电压(Vcc) |
+1.8V/+2.6V/+2.8V/+3.0V/+3.3V |
|
消耗电流 |
+1.5mA max.(f≦26MHz)/+2.0mA max.(26<f≦52MHz) |
|
待机时电流 |
-更多详细参数信息请联系我们http://www.vc-tcxo.com/ |
|
输出电压 |
0.8Vp-p min.(f≦52MHz)(削峰正弦波/DC-coupled) |
|
输出负载 |
10kΩ//10pF |
|
频率稳定度 |
常温偏差 |
±1.5×10-6max.(After 2 reflows) |
温度特性 |
±0.5×10-6,±2.5×10-6max./-30~+85℃ |
|
电源电压特性 |
±0.2×10-6max.(VCC±5%) |
|
负载变化特性 |
±0.2×10-6max.(10kΩ//10pF±10%) |
|
长期变化 |
±1.0×10-6max./year |
|
频率控制 |
控制灵敏度 |
- |
频率控制极性 |
- |
|
启动时间 |
2.0ms max. |
在使用NDK晶振时应注意
