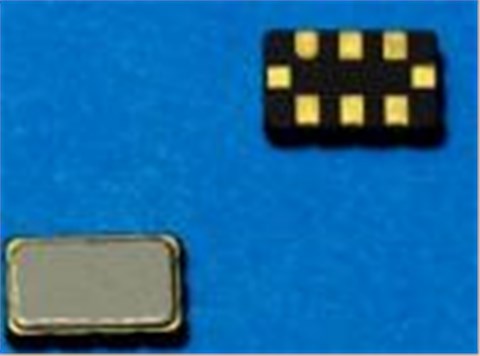

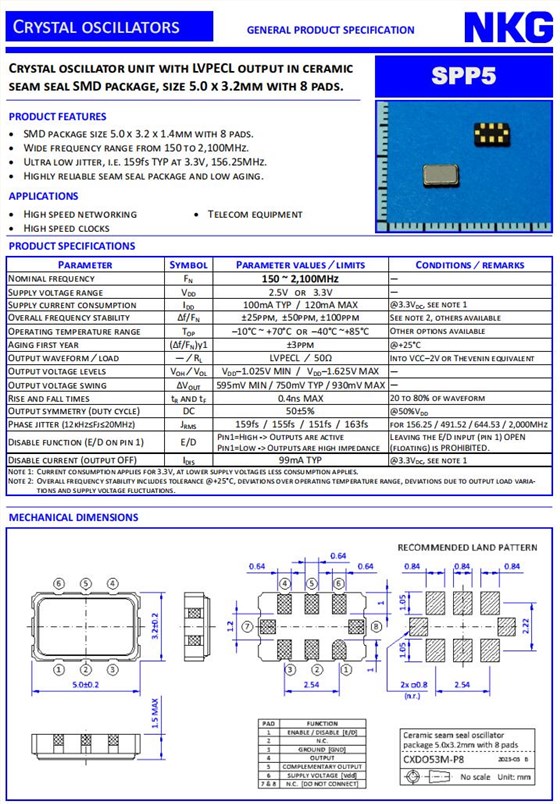

NKG晶振|SPP5|SPP59A-150.000-WTS|LV-PECL输出差分晶振特点:

SMD封装尺寸为5.0 x 3.2x 1.4mm,带有8个衬垫。

频率范围150至2100MHz

超低抖动,即在3.3V, 156.25MHz时159fs TYP。

高可靠的接缝密封封装,低老化。

yijin-2NKG晶振|SPP5|SPP59A-150.000-WTS|LV-PECL输出差分晶振规格表

Parameter Symbol Specifications Remarks
Frequency range FN 150MHz Fundamental DESIGN
Supply voltage range VDD 2.5 V -
Supply current consumption IDD 100mA TYP / 120mA MAX -
Overall frequency stability Δf/FN ±25ppm Depending on operating temperaturerange, other options available
Operating temperature range TOP –40°C ~+85°C Options available
Aging first year
(Δf/FN)y1
±3ppm
@+25°C
Output waveform /load — /RL LVPECL /50Ω Into VCC–2V or Thevenin equivalent
Output voltage levels VOH /VOL VDD–1.025V MIN / VDD–1.625V MAX -
Output voltage swing
ΔVOUT
595mV MIN / 750mV TYP / 930mV MAX
-
Rise and fall times
tR and tF
0.4ns MAX
20 to 80% of waveform
Output symmetry (duty cycle) DC 50±5% @50%VDD
Phase jitter (12kHz≤Fj≤20MHz)
JRMS
159fs / 155fs / 151fs / 163fs
for 156.25 / 491.52 / 644.53 / 2,000MHz
Disable function (E/D on pin 1)
E/D
Pin1=High -> Outputs are active Pin1=Low -> Outputs are high impedance
Leaving the E/D input (pin 1) OPEN (floating) is PROHIBITED.
Disable current (output OFF)
IDIS
99mA TYP
@3.3VDC, see note 1

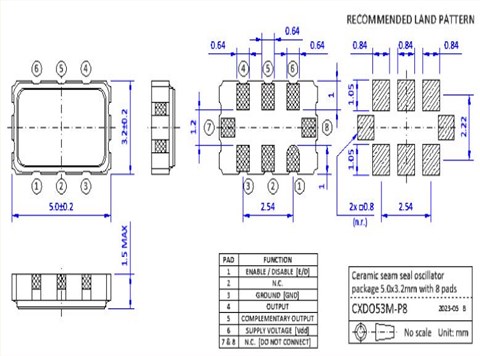

yijin-3NKG晶振|SPP5|SPP59A-150.000-WTS|LV-PECL输出差分晶振尺寸图
