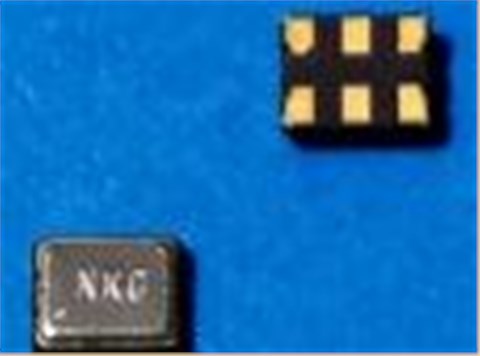

NKG晶振|SDO7|SDO76A-120.000-WTS|2520差分晶振

NKG晶振|SDO7|SDO76A-120.000-WTS|2520差分晶振NKG晶振|SDO7|SDO76A-120.000-WTS|2520差分晶振

产品简介

NKG晶振|SDO7|SDO76A-120.000-WTS|2520差分晶振,香港进口晶振,NKG晶振,SDO7有源晶振,差分晶振,SDO76A-120.000-WTS晶振,石英晶体振荡器,2520贴片晶振,六脚封装晶振,LVDS输出晶振,频率120MHz,电压3.3V,频率稳定性25ppm,工作温范围-40~85°C,超小型晶振,高可靠性晶振,无铅环保晶振,高速网络晶振,高速时钟晶振,电信设备晶振,光纤通道晶振.

产品详情

yijin-1NKG晶振|SDO7|SDO76A-120.000-WTS|2520差分晶振,香港进口晶振,NKG晶振,SDO7有源晶振,差分晶振,SDO76A-120.000-WTS晶振,石英晶体振荡器,2520贴片晶振,六脚封装晶振,LVDS输出晶振,频率120MHz,电压3.3V,频率稳定性25ppm,工作温范围-40~85°C,超小型晶振,高可靠性晶振,无铅环保晶振,高速网络晶振,高速时钟晶振,电信设备晶振,光纤通道晶振.

NKG晶振|SDO7|SDO76A-120.000-WTS|2520差分晶振特点:

SMD封装尺寸为2.5 x 2.0 x 1.0mm,带有6个衬垫。

频率范围13.5至250MHz

超低抖动,典型0.2ps和相位噪声。

高可靠的接缝密封封装,低老化。

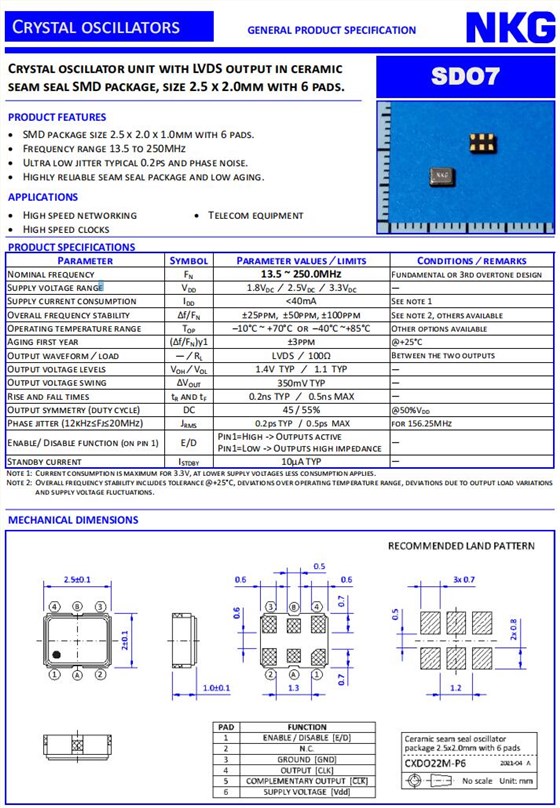

yijin-2NKG晶振|SDO7|SDO76A-120.000-WTS|2520差分晶振规格表

Parameter Symbol Specifications Remarks
Frequency range FN 120MHz Fundamental DESIGN
Supply voltage range VDD 3.3 V -
Supply current consumption IDD <40mA -
Overall frequency stability Δf/FN ±25ppm Depending on operating temperaturerange, other options available
Operating temperature range TOP –40°C ~+85°C Options available
Aging first year
(Δf/FN)y1
±3ppm
@+25°C
Output waveform ? load
- 0.25% / 0.5% / 1.5% / 2.0%
As center or down spread available
EMI reduction (typical)
- 5 ~ 15dB
Wider spread gives better reduction
Output waveform /load — /RL LVDS /100Ω Between the two outputs
Output voltage levels VOH /VOL 1.4V TYP / 1.1 TYP -
Output voltage swing
ΔVOUT
350mV TYP
-
Rise and fall times
tR and tF
0.2ns TYP / 0.5ns MAX
-
Output symmetry (duty cycle) DC 45/55% @50%VDD
Phase jitter (12kHz≤Fj≤20MHz)
JRMS
0.2ps TYP / 0.5ps MAX
for 156.25MHz
Standby function (E/D on pin 1)
E/D
Pin1 = High -> Output pin 3 active Pin1 = Low -> Output pin 3 high impedance
Output high impedance = TRI-STATE
Standby current consumption
ISTB
10µA
Typical

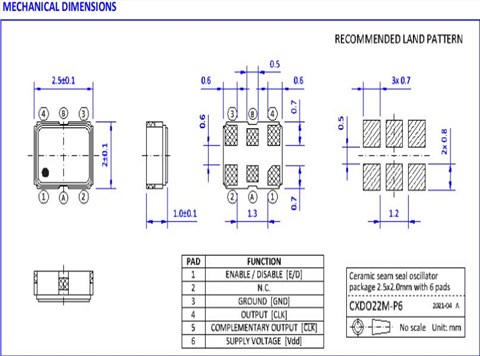

yijin-3NKG晶振|SDO7|SDO76A-120.000-WTS|2520差分晶振尺寸图

SDO7-1SDO7-2
