NKG Crystal|SCO6|SCO6-8G-52M000-WTS|小体积振荡器

产品简介

NKG Crystal|SCO6|SCO6-8G-52M000-WTS|小体积振荡器,NKG Crystal,SCO6有源晶振,进口贴片晶振,SCO6-8G-52M000-WTS晶振,3225晶振,石英晶体振荡器,四脚封装晶振,频率52MHz,电压2.8V,负载15pF,频率稳定性20ppm,工作温度范围-40~85°C,小体积晶振,高稳定性晶振,高品质晶振,笔记本电脑晶振,手持设备晶振,调制解调器晶振,微处理器晶振.

产品详情

yijin-1 NKG Crystal|SCO6|SCO6-8G-52M000-WTS|小体积振荡器,NKG Crystal,SCO6有源晶振,进口贴片晶振,SCO6-8G-52M000-WTS晶振,3225晶振,石英晶体振荡器,四脚封装晶振,频率52MHz,电压2.8V,负载15pF,频率稳定性20ppm,工作温度范围-40~85°C,小体积晶振,高稳定性晶振,高品质晶振,笔记本电脑晶振,手持设备晶振,调制解调器晶振,微处理器晶振.

NKG Crystal|SCO6|SCO6-8G-52M000-WTS|小体积振荡器特点：

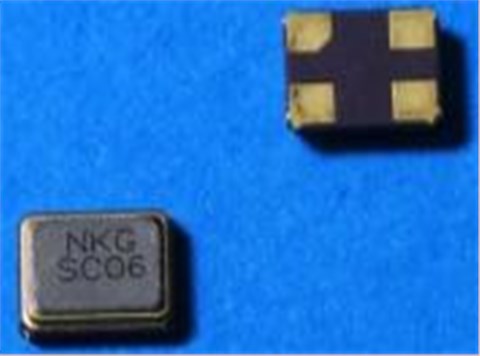

-超小尺寸的SMD封装尺寸为3.2 x 2.5 x 1.0mm，带有4个衬垫

-高可靠的缝封封装，低老化

-低抖动和相位噪声版本可用

-符合AEC-Q200标准的汽车级产品可供选择

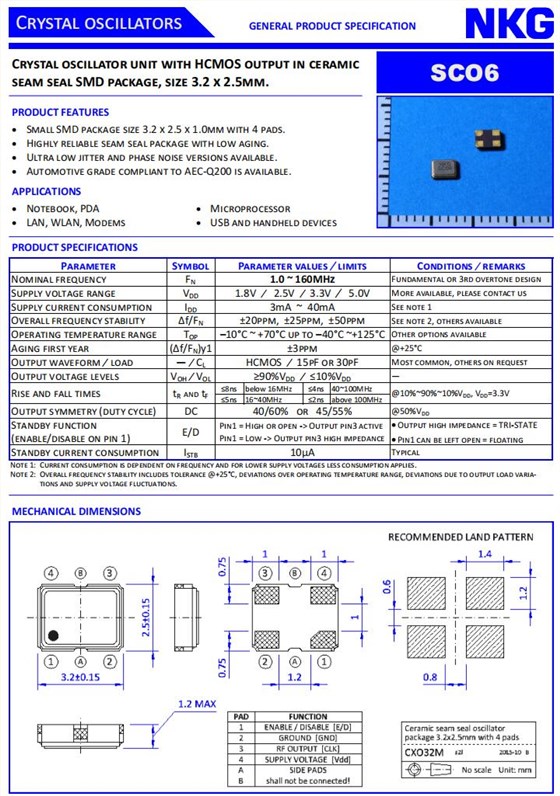

yijin-2 NKG Crystal|SCO6|SCO6-8G-52M000-WTS|小体积振荡器规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	52MHz	Fundamental or 3rd overtone design
Supply voltage range	VDD	2.8V	More available, please contact us
Supply current consumption	IDD	3mA ~ 40mA
Overall frequency stability	?f/FN	±20ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Aging first year	(Δf/FN)y1	±3ppm	@+25°C
Output waveform ? load	— ? CL	HCMOS /15pF or 30pF	Most common, others on request
Output voltage levels	VOH ? VOL	≥90%VDD /≤10%VDD	-
Output symmetry (duty cycle)	DC	40/60% or 45/55%	@50%VDD
Standby function (enable/disable on pin 1)	E/D	Pin1 = High or open -> Output pin3 active Pin1 = Low -> Output pin3 high impedance	?Output high impedance = TRI-STATE ?Pin1 can be left open = floating
Standby current consumption	ISTB	10µA	Typical
