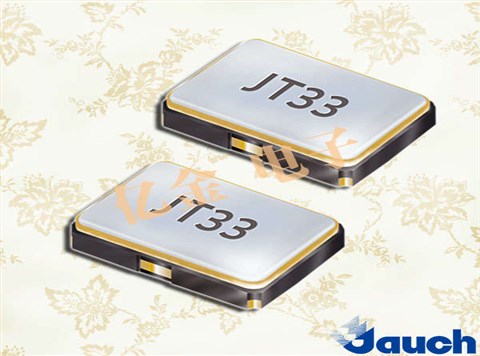

Jauch品牌|O 16.0-JT33-D-A-3.0-1.5-LF|6G无线模块晶振,Jauch品牌,JT33温补晶振,进口有源晶振,O 16.0-JT33-D-A-3.0-1.5-LF晶振,3225贴片晶振,石英晶体振荡器,TCXO晶振,频率16MHz,电压3V,频率稳定性1.0ppm,工作温度-30~80°C,高稳定性晶振,高品质晶振,低损耗晶振,6G无线模块晶振,电信交换机晶振,便携式多媒体设备晶振,数字设备晶振.
Jauch品牌|O 16.0-JT33-D-A-3.0-1.5-LF|6G无线模块晶振特点:
-低功耗VCTCXO或TCXO
-温度范围-40℃~ +85℃可选
-回流焊温度:最高260°C
-陶瓷/金属封装

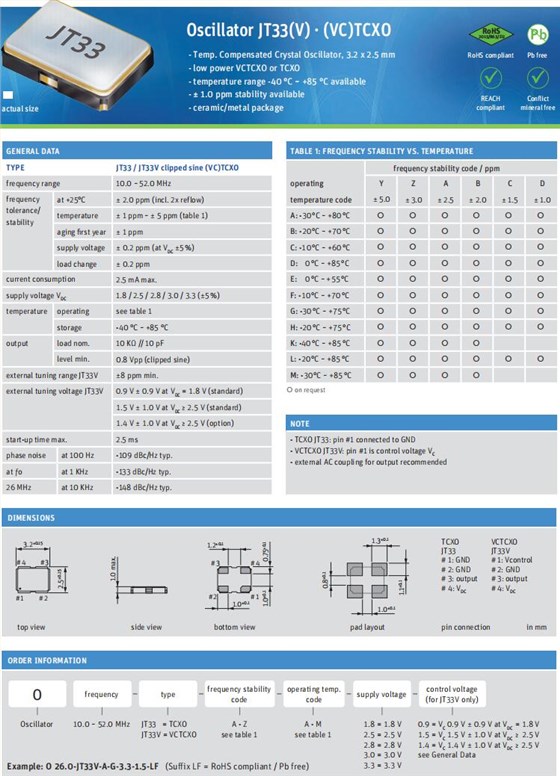

Jauch品牌|O 16.0-JT33-D-A-3.0-1.5-LF|6G无线模块晶振规格表
TYPE
JT33 /JT33V
frequency range
16 MHz
frequency stability
at +25°℃
± 1.5 ppm (incl. 2x reflow)
temperature
±1.0ppm
aging hrst year
±1.0 ppm
supply voltage
±0.2 ppm (at Vuc±5%)
load change
±0.2ppm
current consumption
2.5 mA max. <52 MHz
supply voltage VDC
3.0V (±5%)
temperature
operating
-30℃-+80°C
storage
-40℃-+85℃
output
load nom
10 KΩ // 10 pF
level min.
0.8 Vpp (clipped sine)
external tuning range JT21SV
±8 ppm min.
external tuning voltage JT21SV
0.9 V ± 0.9 V at VDC = 1.8 V (standard)
1.5 V ± 1.0 V at VDC ≥ 2.5 V (standard)
1.4 V ± 1.0 V at VDC ≥ 2.5 V (option)
start-up time max.
2.5 ms
phase noise
at 100 Hz
-109 dBc/Hz typ
at ƒo
at 1 KHz
-133 dBc/Hz typ
26 MHz
at 10 KHz
-148 dBc/Hz typ.

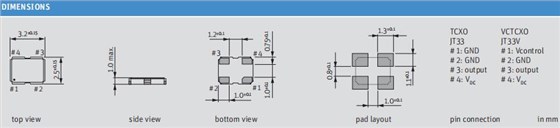

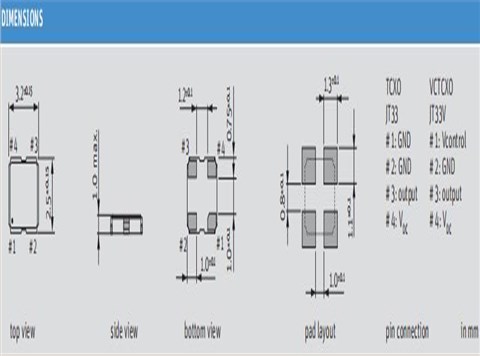

Jauch品牌|O 16.0-JT33-D-A-3.0-1.5-LF|6G无线模块晶振尺寸图
Jauch晶振原厂编码 | 制造商 | 型号 | 频率 | 频率容差 | 负载电容 | Operating Mode | 工作温度 |
Q 0.032768-JTX410-7-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-8-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-10-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-12.5-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-9-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-7-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-8-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-10-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-12.5-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-9-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-8-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 8pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-7-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-12.5-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX410-10-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 10pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-9-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-9-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-9-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-6-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-6-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-6-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | Fundamental | -40°C ~ 125°C |
Q 0.032768-JTX310-12.5-10-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-10-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX310-12.5-10-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 85°C |
Q 0.032768-JTX210-12.5-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX210-12.5-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX210-12.5-20-T2-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-10-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-10-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 0.032768-JTX310-12.5-10-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±10ppm | 12.5pF | Fundamental | -40°C ~ 105°C |
Q 19.2-JXS22-10-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-10-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-12-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-12-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-12-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-8-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-8-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-8-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-9-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-9-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 19.2-JXS22-9-10/10-WA-LF | Jauch晶振 | JXS22-WA | 19.2MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 20.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 20MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 24.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 24MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS21-12-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS21-9-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 26MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-10-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-12-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-8-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 26.0-JXS22-9-10/10-FU-WA-LF | Jauch晶振 | JXS22-WA | 26MHz | ±10ppm | 9pF | Fundamental | -20°C ~ 70°C |
Q 27.12-JXS21-10-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 10pF | Fundamental | -20°C ~ 70°C |
Q 27.12-JXS21-12-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 12pF | Fundamental | -20°C ~ 70°C |
Q 27.12-JXS21-8-10/10-FU-WA-LF | Jauch晶振 | JXS21-WA | 27.12MHz | ±10ppm | 8pF | Fundamental | -20°C ~ 70°C |
