Hosonic品牌|D2SX12E0X0004E|6G室内路由器晶振

Hosonic品牌|D2SX12E0X0004E|6G室内路由器晶振Hosonic品牌|D2SX12E0X0004E|6G室内路由器晶振

产品简介

Hosonic品牌|D2SX12E0X0004E|6G室内路由器晶振,台湾进口晶振,Hosonic品牌,D2SX石英贴片晶振,D2SX12E0X0004E晶振,有源晶体振荡器,2520晶振,频率12.288MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,超小型晶振,无铅环保晶振,低耗能晶振,6G室内路由器晶振,光终端设备晶振,嵌入式设备晶振,家庭自动化应用晶振.

产品详情

yijin-1

Hosonic品牌|D2SX12E0X0004E|6G室内路由器晶振,台湾进口晶振,Hosonic品牌,D2SX石英贴片晶振,D2SX12E0X0004E晶振,有源晶体振荡器,2520晶振,频率12.288MHz,电压3.3V,频率稳定性25ppm,工作温度-40~85°C,超小型晶振,无铅环保晶振,低耗能晶振,6G室内路由器晶振,光终端设备晶振,嵌入式设备晶振,家庭自动化应用晶振.

Hosonic品牌|D2SX12E0X0004E|6G室内路由器晶振特点：

- 2.5X2.0X0.9微型封装

-三态启用/禁用

-TTL / CMOS兼容

-家庭安防设备，节能应用，以及低频规格电路设计寻求更小的封装

-3.3 v, 2.8 v (2.5 v), 1.8 v, 1.5 v选项

yijin-2

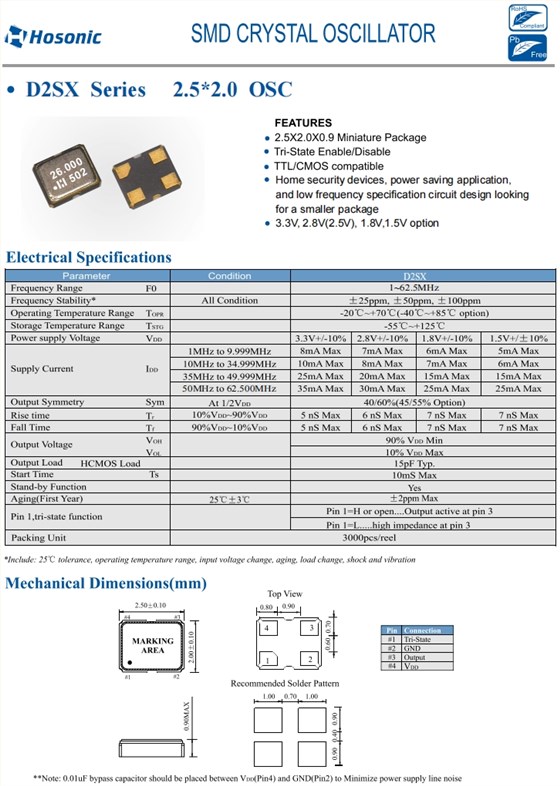

Hosonic品牌|D2SX12E0X0004E|6G室内路由器晶振规格表

Parameter Condition D2SX
Frequency Range 12.288MHz
Frequency Stability* AIl Condition 士25ppm
Operating Temperature Range -40'C~+85'℃
Storage Temperature Range -55*C-+125℃
Power supply Voltage 3.3V+/-10%
Supply Current Ipo 1MHz to 9.999MHz 8mA Max
10MHz to 34.999MHz 10mA Max
35MHz 10 49.999MHz 25mA Max
50MHz to 62,500MHz 35mA Max
Output Symmetry At 1/2Vop 40/60%(45/ /55% Option)
Rise time 10%Vpp-90%VDD 5 ns Max
Fall Time 90%Vpp-10%VDD 5 ns Max
Output Voltage VOH 90% Vop Min
VOL 10% Voo Max
VoI Output Load 15pF Typ.
Start Time 10mS Max
Stand-by Function Yes
Aging(First Year) 25℃+3℃ +2ppm Max
Pin 1,tri-state function Pin 1-H or open.... Output active at pin 3
Pin 1-L......high impedance at pin 3
Packing Unit 3000pcs/reel

yijin-3

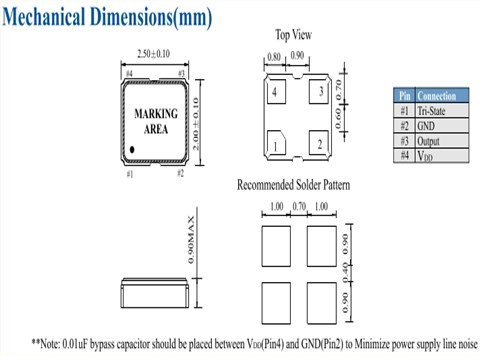

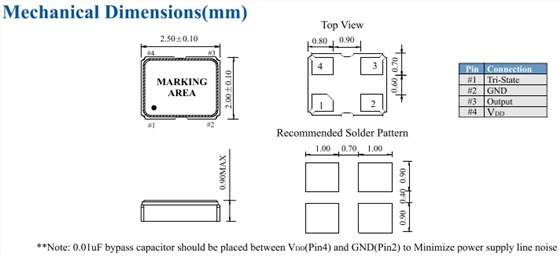

Hosonic品牌|D2SX12E0X0004E|6G室内路由器晶振尺寸图

D2SX-1

D2SX
