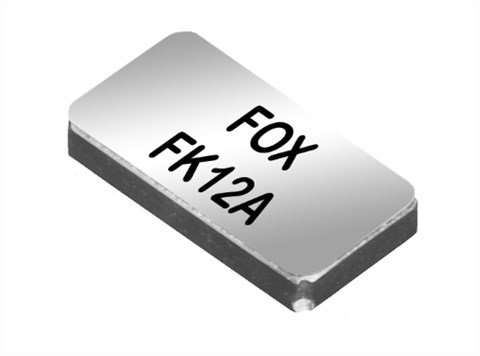

福克斯美国晶振,FK12AEIHI0.032768-T3电动牙刷晶振,FK12A小型音叉晶振

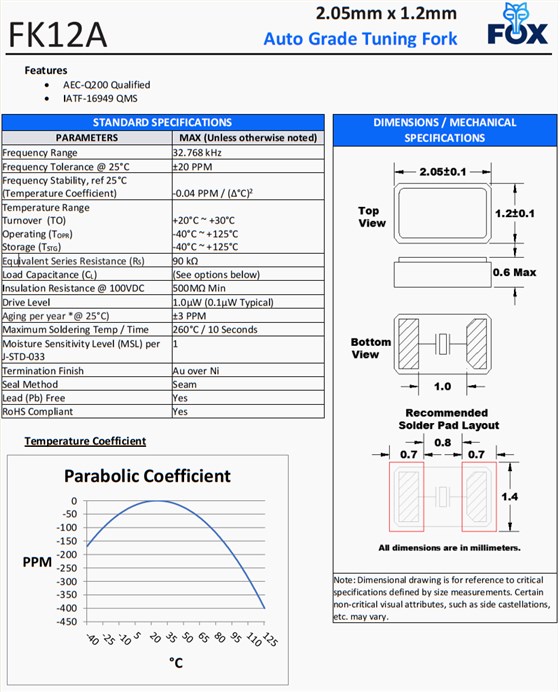

STANDARD SPECIFICATIONS
参数	MAX (Unless otherwise noted)
频率	32.768 kHz
频率容差	±20 PPM
频率稳定度	-0.04 PPM / (?°C)2
温度范围运输 (TO) 工作 (TOPR) 储存 (TSTG)	+20°C ~ +30°C -40°C ~ +125°C -40°C ~ +125°C
等效串联电阻	90 k?
负载电容	(See options below)
绝缘电阻	500M? Min
驱动电平	1.0µW (0.1µW Typical)
老化	±3 PPM
最大焊接温度/时间	260°C / 10 Seconds
温度敏感度	1
终止完成	Au over Ni
密封方法	Seam
无铅	Yes
符合RoHS	Yes

福克斯美国晶振,FK12AEIHI0.032768-T3电动牙刷晶振,FK12A小型音叉晶振

编码	品牌	型号	工作温度	频率	频率稳定度	频率容差	负载电容
FC0BSFEEN23A99675-T2	Fox	FC0BS	-20°C ~ 85°C	23.99675 MHz	±20ppm	±15ppm	10 pF
FC0BSFEEN23A99675-T3	Fox	FC0BS	-20°C ~ 85°C	23.99675 MHz	±20ppm	±15ppm	10 pF
FC1BACBEI20.0-T3	Fox	FC1BA	-40°C ~ 12°C	20 MHz	±50ppm	±30ppm	10 pF
FC1BAEBDI16.0-T1	Fox	FC1BA	-40°C ~ 125°C	16 MHz	±50ppm	±20ppm	8 pF
FC1BAEBDI20.0-T1	Fox	FC1BA	-40°C ~ 125°C	20 MHz	±50ppm	±20ppm	8 pF
FC1BAEBDI24.0-T1	Fox	FC1BA	-40°C ~ 125°C	24 MHz	±50ppm	±20ppm	8 pF
FC1BAEBDI25.0-T1	Fox	FC1BA	-40°C ~ 125°C	25 MHz	±50ppm	±20ppm	8 pF
FC1BAEBDI40.0-T1	Fox	FC1BA	-40°C ~ 125°C	40 MHz	±50ppm	±20ppm	8 pF
FC1BAEBEI16.0-T1	Fox	FC1BA	-40°C ~ 125°C	16 MHz	±50ppm	±20ppm	10 pF
FC1BAEBEI20.0-T1	Fox	FC1BA	-40°C ~ 125°C	20 MHz	±50ppm	±20ppm	10 pF
FC1BAEBEI24.0-T1	Fox	FC1BA	-40°C ~ 125°C	24 MHz	±50ppm	±20ppm	10 pF
FC1BAEBEI25.0-T1	Fox	FC1BA	-40°C ~ 125°C	25 MHz	±50ppm	±20ppm	10 pF
FC1BAEBEI40.0-T1	Fox	FC1BA	-40°C ~ 125°C	40 MHz	±50ppm	±20ppm	10 pF
FC1BAEBGI16.0-T1	Fox	FC1BA	-40°C ~ 125°C	16 MHz	±50ppm	±20ppm	12 pF
FC1BAEBGI20.0-T1	Fox	FC1BA	-40°C ~ 125°C	20 MHz	±50ppm	±20ppm	12 pF
FC1BAEBGI24.0-T1	Fox	FC1BA	-40°C ~ 125°C	24 MHz	±50ppm	±20ppm	12 pF
FC1BAEBGI25.0-T1	Fox	FC1BA	-40°C ~ 125°C	25 MHz	±50ppm	±20ppm	12 pF
FC1BAEBGI40.0-T1	Fox	FC1BA	-40°C ~ 125°C	40 MHz	±50ppm	±20ppm	12 pF
FC1BQCCEK27.12-1	Fox	FC1BQ	-30°C ~ 85°C	27.12 MHz	±30ppm	±30ppm	10 pF
FC1BSCBEM27.12-T3	Fox	FC1BS	-40°C ~ 85°C	27.12 MHz	±50ppm	±30ppm	10 pF
FC1BSCCEM16.0-T3	Fox	FC1BS	-40°C ~ 85°C	16 MHz	±30ppm	±30ppm	10 pF
FC1BSHFEM32.0-T3	Fox	FC1BS	-40°C ~ 85°C	32 MHz	±15ppm	±10ppm	10 pF
FC1BSHHVK50.0-1-T3	Fox	FC1BS	-30°C ~ 85°C	50 MHz	±10ppm	±10ppm	7 pF
FC2BACBEI16.0-T1	Fox	FC2BA	-40°C ~ 12°C	16 MHz	±50ppm	±30ppm	10 pF
FC2BACBEI16.0-T3	Fox	FC2BA	-40°C ~ 12°C	16 MHz	±50ppm	±30ppm	10 pF
FC2BAEBDI12.0-T1	Fox	FC2BA	-40°C ~ 125°C	12 MHz	±50ppm	±20ppm	8 pF
FC2BAEBDI16.0-T1	Fox	FC2BA	-40°C ~ 125°C	16 MHz	±50ppm	±20ppm	8 pF
FC2BAEBDI20.0-T1	Fox	FC2BA	-40°C ~ 125°C	20 MHz	±50ppm	±20ppm	8 pF
FC2BAEBDI24.0-T1	Fox	FC2BA	-40°C ~ 125°C	24 MHz	±50ppm	±20ppm	8 pF
FC2BAEBDI25.0-T1	Fox	FC2BA	-40°C ~ 125°C	25 MHz	±50ppm	±20ppm	8 pF
FC2BAEBDI40.0-T1	Fox	FC2BA	-40°C ~ 125°C	40 MHz	±50ppm	±20ppm	8 pF
FC2BAEBEI12.0-T1	Fox	FC2BA	-40°C ~ 125°C	12 MHz	±50ppm	±20ppm	10 pF
FC2BAEBEI16.0-T1	Fox	FC2BA	-40°C ~ 125°C	16 MHz	±50ppm	±20ppm	10 pF
FC2BAEBEI20.0-T1	Fox	FC2BA	-40°C ~ 125°C	20 MHz	±50ppm	±20ppm	10 pF
FC2BAEBEI24.0-T1	Fox	FC2BA	-40°C ~ 125°C	24 MHz	±50ppm	±20ppm	10 pF
FC2BAEBEI25.0-T1	Fox	FC2BA	-40°C ~ 125°C	25 MHz	±50ppm	±20ppm	10 pF
FC2BAEBEI40.0-T1	Fox	FC2BA	-40°C ~ 125°C	40 MHz	±50ppm	±20ppm	10 pF
FC2BAEBGI25.0-T1	Fox	FC2BA	-40°C ~ 125°C	25 MHz	±50ppm	±20ppm	12 pF
FC2BSBBMM16.0-T1	Fox	FC2BS	-40°C ~ 85°C	16 MHz	±50ppm	±50ppm	20 pF
FC2BSBBMM16.0-T3	Fox	FC2BS	-40°C ~ 85°C	16 MHz	±50ppm	±50ppm	20 pF
FC3BABBKM20.0-T3	Fox	FC3BA	-40°C ~ 85°C	20 MHz	±50ppm	±50ppm	16 pF
FC3BACAGI16.0-T3	Fox	FC3BA	-40°C ~ 12°C	16 MHz	±100ppm	±30ppm	12 pF
FC3BACALI16.0-T3	Fox	FC3BA	-40°C ~ 12°C	16 MHz	±100ppm	±30ppm	18 pF
FC3BACBDI16.0-T3	Fox	FC3BA	-40°C ~ 12°C	16 MHz	±50ppm	±30ppm	8 pF
FC3BACCGM20.0-T3	Fox	FC3BA	-40°C ~ 85°C	20 MHz	±30ppm	±30ppm	12 pF
FC3BACCLP12.0-T3	Fox	FC3BA	-40°C ~ 10°C	12 MHz	±30ppm	±30ppm	18 pF
FC3BAEBDI12.0-T1	Fox	FC3BA	-40°C ~ 125°C	12 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI16.0-T1	Fox	FC3BA	-40°C ~ 125°C	16 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI20.0-T1	Fox	FC3BA	-40°C ~ 125°C	20 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI24.0-T1	Fox	FC3BA	-40°C ~ 125°C	24 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI25.0-T1	Fox	FC3BA	-40°C ~ 125°C	25 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI40.0-T1	Fox	FC3BA	-40°C ~ 125°C	40 MHz	±50ppm	±20ppm	8 pF
FC3BAEBDI8.0-T1	Fox	FC3BA	-40°C ~ 125°C	8 MHz	±50ppm	±20ppm	8 pF
FC3BAEBGI12.0-T1	Fox	FC3BA	-40°C ~ 125°C	12 MHz	±50ppm	±20ppm	12 pF
FC3BAEBGI24.0-T1	Fox	FC3BA	-40°C ~ 125°C	24 MHz	±50ppm	±20ppm	12 pF
FC3BAEBGI25.0-T1	Fox	FC3BA	-40°C ~ 125°C	25 MHz	±50ppm	±20ppm	12 pF
FC3BAEBGI40.0-T1	Fox	FC3BA	-40°C ~ 125°C	40 MHz	±50ppm	±20ppm	12 pF
FC3BQBBDM20.0-T3	Fox	FC3BQ	-40°C ~ 85°C	20 MHz	±50ppm	±50ppm	8 pF
FC3BQBBME12.0-T3	Fox	FC3BQ	-10°C ~ 70°C	12 MHz	±50ppm	±50ppm	20 pF
FC3BQBBME16.0-T1	Fox	FC3BQ	-10°C ~ 70°C	16 MHz	±50ppm	±50ppm	20 pF
FC3BQBBME24.0-T1	Fox	FC3BQ	-10°C ~ 70°C	24 MHz	±50ppm	±50ppm	20 pF
FC3BQBBME25.0-T1	Fox	FC3BQ	-10°C ~ 70°C	25 MHz	±50ppm	±50ppm	20 pF
FC3BQBBME25.0-T3	Fox	FC3BQ	-10°C ~ 70°C	25 MHz	±50ppm	±50ppm	20 pF
FC3BQBBME27.0-T1	Fox	FC3BQ	-10°C ~ 70°C	27 MHz	±50ppm	±50ppm	20 pF
FC3BQBBMM12.0-T1	Fox	FC3BQ	-40°C ~ 85°C	12 MHz	±50ppm	±50ppm	20 pF
FC3BQBBMM12.0-T3	Fox	FC3BQ	-40°C ~ 85°C	12 MHz	±50ppm	±50ppm	20 pF
FC3BQBBMM24.0-T1	Fox	FC3BQ	-40°C ~ 85°C	24 MHz	±50ppm	±50ppm	20 pF
FC3BQBBMM24.0-T3	Fox	FC3BQ	-40°C ~ 85°C	24 MHz	±50ppm	±50ppm	20 pF
FC3BQBBMM25.0-T1	Fox	FC3BQ	-40°C ~ 85°C	25 MHz	±50ppm	±50ppm	20 pF
FC3BQBBMM25.0-T3	Fox	FC3BQ	-40°C ~ 85°C	25 MHz	±50ppm	±50ppm	20 pF
FC3BQBBVM25.0-T3	Fox	FC3BQ	-40°C ~ 85°C	25 MHz	±50ppm	±50ppm	7 pF
FC3BSBBEM26.0-T3	Fox	FC3BS	-40°C ~ 85°C	26 MHz	±50ppm	±50ppm	10 pF
FC3BSBBLM25.0-T3	Fox	FC3BS	-40°C ~ 85°C	25 MHz	±50ppm	±50ppm	18 pF
FC3BSBBMM25.0-T3	Fox	FC3BS	-40°C ~ 85°C	25 MHz	±50ppm	±50ppm	20 pF
FC3BSHFEM12.0-T3	Fox	FC3BS	-40°C ~ 85°C	12 MHz	±15ppm	±10ppm	10 pF
FC3BSHHEF26.0-T3	Fox	FC3BS	-20°C ~ 70°C	26 MHz	±10ppm	±10ppm	10 pF
FC3BSHHEF32.0-T3	Fox	FC3BS	-20°C ~ 70°C	32 MHz	±10ppm	±10ppm	10 pF
FC3BSHLGA27.0-1-T3	Fox	FC3BS	0°C ~ 50°C	27 MHz	±5ppm	±10ppm	12 pF
FC3VAEEGM50.0-T3	Fox	FC3VA	-40°C ~ 85°C	50 MHz	±20ppm	±20ppm	12 pF
FC3VREEDM38.4-T1	Fox	FC3VR	-40°C ~ 85°C	38.4 MHz	±20ppm	±20ppm	8 pF
FC3VREEDM38.88-T1	Fox	FC3VR	-40°C ~ 85°C	38.88 MHz	±20ppm	±20ppm	8 pF
FC3VREEDM40.0-T1	Fox	FC3VR	-40°C ~ 85°C	40 MHz	±20ppm	±20ppm	8 pF
FC3VREEDM48.0-T1	Fox	FC3VR	-40°C ~ 85°C	48 MHz	±20ppm	±20ppm	8 pF
FC3VREEEM38.4-T1	Fox	FC3VR	-40°C ~ 85°C	38.4 MHz	±20ppm	±20ppm	10 pF
FC3VREEGM36.0-T1	Fox	FC3VR	-40°C ~ 85°C	36 MHz	±20ppm	±20ppm	12 pF
FC3VREEGM38.4-T1	Fox	FC3VR	-40°C ~ 85°C	38.4 MHz	±20ppm	±20ppm	12 pF
FC3VREEGM38.88-T1	Fox	FC3VR	-40°C ~ 85°C	38.88 MHz	±20ppm	±20ppm	12 pF
FC3VREEGM40.0-T1	Fox	FC3VR	-40°C ~ 85°C	40 MHz	±20ppm	±20ppm	12 pF
FC3VREEGM50.0-T1	Fox	FC3VR	-40°C ~ 85°C	50 MHz	±20ppm	±20ppm	12 pF
FC4SDBBMF3.2-T1	Fox	FC4SD	-20°C ~ 70°C	3.2 MHz	±50ppm	±50ppm	20 pF
FC4SDCBGF24.0-T1	Fox	FC4SD	-20°C ~ 70°C	24 MHz	±50ppm	±30ppm	12 pF
FC4SDCBGF4.194304-T1	Fox	FC4SD	-20°C ~ 70°C	4.194304 MHz	±50ppm	±30ppm	12 pF
FC4SDCBGM8.0-T1	Fox	FC4SD	-40°C ~ 85°C	8 MHz	±50ppm	±30ppm	12 pF
FC4SDCBKF24.0-T1	Fox	FC4SD	-20°C ~ 70°C	24 MHz	±50ppm	±30ppm	16 pF
