安克晶振,SAW滤波器,7050贴片晶振,进口石英晶振,A152-258.2M2,俄罗斯进口晶振
AEK晶振,A072-151.2M1,进口安克晶振,151.2MHz,石英晶振,7050贴片晶振

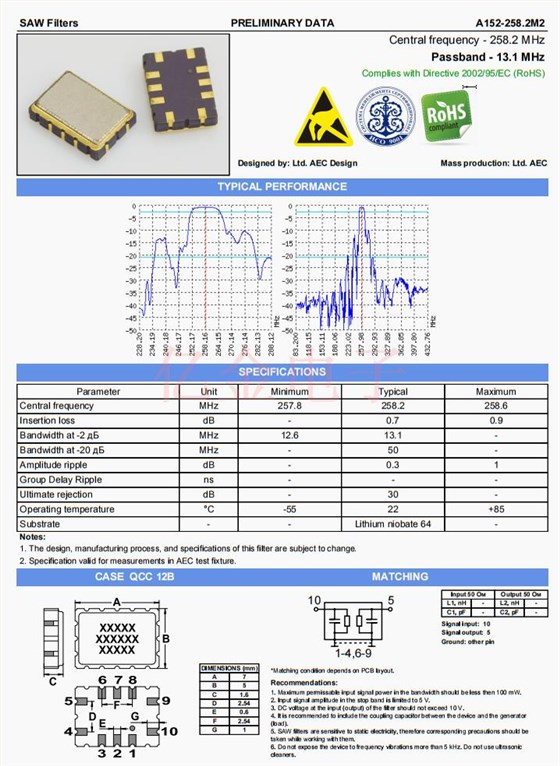

Parameter | Unit | Minimum | Typical | Maximum |
Central frequency | MHz | 257.8 | 258.2 | 258.6 |
Insertion loss | dB | - | 0.7 | 0.9 |
Bandwidth at -1.2 дБ | MHz | 12.6 | 13.1 | - |
Bandwidth at -20 дБ | MHz | - | 50 | - |
Amplitude ripple | dB | - | 0.3 | 1 |
Group Delay Ripple | ns | - | - | - |
Ultimate rejection | dB | - | 30 | - |
Operating temperature | °C | -55 | 22 | 85 |
Substrate | - | - | Lithium niobate 64 | - |
![yijin-3 yijin-3](/Mobile/uploadfiles/pictures/product/20170908141631_6170.jpg_280.jpg)
安克晶振,SAW滤波器,7050贴片晶振,进口石英晶振,A152-258.2M2,俄罗斯进口晶振
