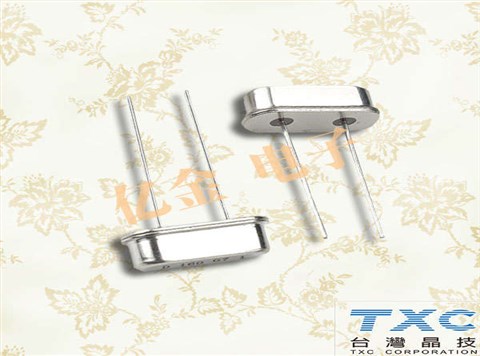

9B-30.000MAAE-B,TXC晶振,30MHz,HC-49S晶振,12pF,9B系列,插件晶振
台产晶振TXC中的9B-30.000MAAE-B晶振,是9B系列晶振,该晶振的频率是30MHz,负载电容为12pF,也是HC-49S晶振,我们一般也叫插件晶振。自台湾晶技成立以来,便以卓越的技术实力、创新的研发能力,以及稳健的市场策略,逐步跃升为此领域的市场先驱之一。TXC对品质管理系统精益求精,以国际品质管理标准为基本要求,透过品质管理作业系统,追求世界级效率、效果之品质管理体系为目标。
![Y-3 Y-3](/Mobile/uploadfiles/pictures/product/20240823160124_0002.jpg_280.jpg)
9B-30.000MAAE-B,TXC晶振,30MHz,HC-49S晶振,12pF,9B系列,插件晶振
品牌 | TXC |
编码 | 9B-30.000MAAE-B |
型号 | 9B |
频率 | 30MHz |
精度 | ±30ppm |
负载 | 12pF |

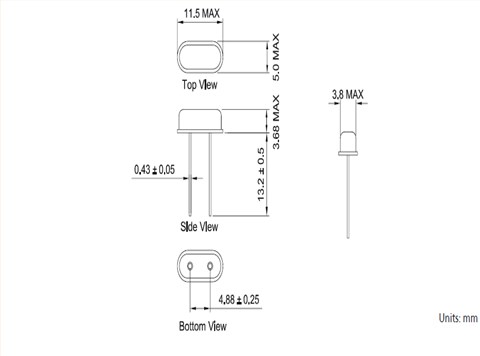

尺寸 | HC-49S |
工作温度 | -20°C ~ 70°C |
![yijin-3 yijin-3](/Mobile/uploadfiles/pictures/product/20170908141631_6170.jpg_280.jpg)
9B-30.000MAAE-B,TXC晶振,30MHz,HC-49S晶振,12pF,9B系列,插件晶振
更多相关晶振参考
编码 | 品牌 | 型号 | 频率 | 频率公差 | 负载电容 | 工作温度 |
9B-11.0592MBBK-B | TXC晶振 | 9B | 11.0592MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-4.096MBBK-B | TXC晶振 | 9B | 4.096MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-48.000MBBK-B | TXC晶振 | 9B | 48MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-20.000MBBK-B | TXC晶振 | 9B | 20MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-16.000MBBK-B | TXC晶振 | 9B | 16MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-13.560MAAE-B | TXC晶振 | 9B | 13.56MHz | ±30ppm | 12pF | -20°C ~ 70°C |
9B-3.579545MAAJ-B | TXC晶振 | 9B | 3.579545MHz | ±30ppm | 18pF | -20°C ~ 70°C |
9B-27.000MAAJ-B | TXC晶振 | 9B | 27MHz | ±30ppm | 18pF | -20°C ~ 70°C |
9B-16.000MAAJ-B | TXC晶振 | 9B | 16MHz | ±30ppm | 18pF | -20°C ~ 70°C |
9B-8.000MEEJ-B | TXC晶振 | 9B | 8MHz | ±10ppm | 18pF | -20°C ~ 70°C |
9B-17.734475MBBK-B | TXC晶振 | 9B | 17.734475MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-13.000MBBK-B | TXC晶振 | 9B | 13MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-26.000MAAJ-B | TXC晶振 | 9B | 26MHz | ±30ppm | 18pF | -20°C ~ 70°C |
9B-14.7456MAAJ-B | TXC晶振 | 9B | 14.7456MHz | ±30ppm | 18pF | -20°C ~ 70°C |
9B-32.000MAAJ-B | TXC晶振 | 9B | 32MHz | ±30ppm | 18pF | -20°C ~ 70°C |
9B-4.000MAAJ-B | TXC晶振 | 9B | 4MHz | ±30ppm | 18pF | -20°C ~ 70°C |
9B-14.31818MAAJ-B | TXC晶振 | 9B | 14.31818MHz | ±30ppm | 18pF | -20°C ~ 70°C |
9B-12.288MAAJ-B | TXC晶振 | 9B | 12.288MHz | ±30ppm | 18pF | -20°C ~ 70°C |
9B-10.000MAAJ-B | TXC晶振 | 9B | 10MHz | ±30ppm | 18pF | -20°C ~ 70°C |
9B-11.2896MAAJ-B | TXC晶振 | 9B | 11.2896MHz | ±30ppm | 18pF | -20°C ~ 70°C |
9B-48.000MAAJ-B | TXC晶振 | 9B | 48MHz | ±30ppm | 18pF | -20°C ~ 70°C |
9B-48.000MEEQ-B | TXC晶振 | 9B | 48MHz | ±10ppm | 10pF | -20°C ~ 70°C |
9B-14.31818MBBK-B | TXC晶振 | 9B | 14.31818MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-3.6864MBBK-B | TXC晶振 | 9B | 3.6864MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-36.000MBBK-B | TXC晶振 | 9B | 36MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-16.384MBBK-B | TXC晶振 | 9B | 16.384MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-27.000MBBK-B | TXC晶振 | 9B | 27MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-24.000MBBK-B | TXC晶振 | 9B | 24MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-4.000MBBK-B | TXC晶振 | 9B | 4MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-10.000MBBK-B | TXC晶振 | 9B | 10MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-18.432MBBK-B | TXC晶振 | 9B | 18.432MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-11.2896MEEJ-B | TXC晶振 | 9B | 11.2896MHz | ±10ppm | 18pF | -20°C ~ 70°C |
9B-15.360MEEJ-B | TXC晶振 | 9B | 15.36MHz | ±10ppm | 18pF | -20°C ~ 70°C |
9B-19.200MEEJ-B | TXC晶振 | 9B | 19.2MHz | ±10ppm | 18pF | -20°C ~ 70°C |
9B-24.576MEEJ-B | TXC晶振 | 9B | 24.576MHz | ±10ppm | 18pF | -20°C ~ 70°C |
9B-28.63636MEEJ-B | TXC晶振 | 9B | 28.63636MHz | ±10ppm | 18pF | -20°C ~ 70°C |
9B-12.288MEEJ-B | TXC晶振 | 9B | 12.288MHz | ±10ppm | 18pF | -20°C ~ 70°C |
9B-16.000MAAE-B | TXC晶振 | 9B | 16MHz | ±30ppm | 12pF | -20°C ~ 70°C |
9B-22.000MBBK-B | TXC晶振 | 9B | 22MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-50.000MAAE-B | TXC晶振 | 9B | 50MHz | ±30ppm | 12pF | -20°C ~ 70°C |
9B-27.000MAAE-B | TXC晶振 | 9B | 27MHz | ±30ppm | 12pF | -20°C ~ 70°C |
9B-3.579545MEHE-B | TXC晶振 | 9B | 3.5795MHz | ±30ppm | 12pF | -40°C ~ 85°C |
9B-64.000MBBK-B | TXC晶振 | 9B | 64MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-16.384MEEJ-B | TXC晶振 | 9B | 16.384MHz | ±10ppm | 18pF | -20°C ~ 70°C |
9B-60.000MBBK-B | TXC晶振 | 9B | 60MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-50.000MBBK-B | TXC晶振 | 9B | 50MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-25.000MBBK-B | TXC晶振 | 9B | 25MHz | ±50ppm | 20pF | -20°C ~ 70°C |
9B-15.000MBBK-B | TXC晶振 | 9B | 15MHz | ±50ppm | 20pF | -20°C ~ 70°C |
