SUNTSU晶振集团符合行业标准封装尺寸的SAW滤波器型号

2018-07-17 11:14:04

SAW滤波器是声表面滤波器的简写,声表面滤波器是在一块具有压电效应的材料基片上蒸发一层金属膜,然后经光刻,在两端各形成一对叉指形电极组成.下面亿金电子要给大家介绍的是SUNTSU晶振集团符合行业标准封装尺寸的SAW滤波器型号.

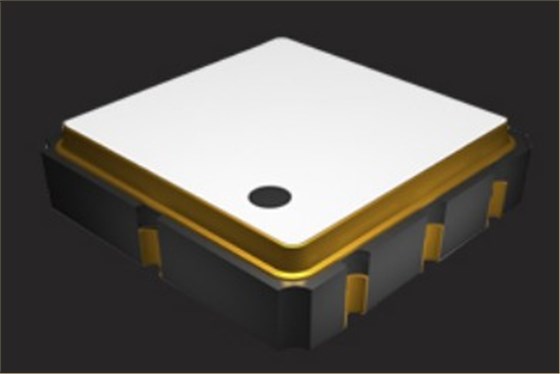

SUNTSU声表面滤波器,SAW滤波器

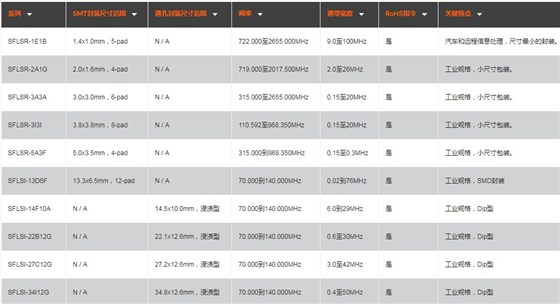

SUNTSU SAW滤波器采用行业标准封装尺寸,SMT式,体积从3x3mm到19.5x6.5mm均有生产.包括4个引脚和6个引脚,插件式封装.SUNTSU声表面滤波器提供30MHZ~150MHZ的宽中心频率范围,为RF SAW滤波器系列提供100MHZ至2.7GHZ的宽频率范围.IF SAW滤波器的通带带宽为4kHz至40MHz,RF SAW滤波器的带宽带宽为75kHz至80MHz.以下SUNTSU声表面滤波器常用型号列表,更多型号参数欢迎登入亿金官网查看,或来电0755-27876565咨询.

SUNTSU声表面滤波器,SAW滤波器

Suntsu SAW filters are available in industry standard packaging sizes that go from 3x3mm to 19.5x6.5mm SMT and several 4-pin and 6-pin through-hole or socket-ready packages. We offer a wide center frequency range going from 30MHz to 150MHz for the IF SAW Filter family and 100MHz to 2.7GHz for the RF SAW Filter family. Passband bandwidths go from 4kHz to 40MHz for IF SAW filters and 75kHz to 80MHz for RF SAW filters. Pick out a standard part number from the data sheets listed below or contact our sales team to request any custom parameters or physical modifications that you may desire and we will design to your specific needs.
