微晶晶振,1978年成立于瑞士格伦兴,为Swatch Group的供货商,提供手表音叉式晶体的产品.而今,微晶已经发展成为一家在微型音叉式石英晶体(32kHz ~ 250MHz)、实时时钟模块、晶振和OCXO晶体振荡器,有源晶振等多个领域的领导供货商,为世界一流的终端产品制造商提供从设计到量产的全方位支持,服务范围涵盖手机、计算机、汽车电子、手表、工业控制、植入式医疗及其他高可靠性产品.
编码RV-3032-C7TAQC是一款高性能温度补偿实时时钟模块,32.768K时钟晶振
采用紧凑型封装的超低功耗实时时钟(RTC)模块，实时时钟(RTC)模块在微型SMD陶瓷封装内将32.768k XTAL与基CMOS的振荡器和 RTC IC结合在一起。
制造商零件编号
制造商
描述
频率
OV-7604-C7-32.768k-20PPM-TB-QA
Micro Crystal
标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C AEC-Q200
32.768 kHz
OV-7604-C7-32.768kHz-20PPM-TA-QC
Micro Crystal
标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
32.768 kHz
OV-0100-C7-100.000kHz-20PPM-TA-QC
Micro Crystal
标准时钟振荡器 100.0 kHz +/-20 PPM -40/+85C
100 kHz
OM-0100-C8-100.00kHz-20PPM-TA-QC
Micro Crystal
时钟晶振 100.0 kHz +/-20 PPM -40/+85C
100 kHz
OM-7605-C8-32.768kHz-20PPM-TA-QC
Micro Crystal
标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
32.768 kHz
OM-7604-C7-32.768kHz-20PPM-TA-QC
Micro Crystal
标准时钟振荡器 32.768 kHz +/-20 PPM I2C -40/+85C
32.768 kHz
202273-EA00
Micro Crystal
标准时钟振荡器 128MHz 20ppm -55C +85C
128 MHz
OV-7604-C7-32.768kHz-20PPM-TB-QC
Micro Crystal
标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C
32.768 kHz
OV-7605-C8-32.768kHz-20PPM-TA-QC
Micro Crystal
标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
32.768 kHz
OM-7604-C7-32.768kHz-20PPM-TB-QC
Micro Crystal
标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C
32.768 kHz
OV-7604-C7-32.768k-10PPM-TB-QA
Micro Crystal
标准时钟振荡器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200
32.768 kHz
OV-7604-C7-32.768k-20PPM-TA-QA
Micro Crystal
标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C
32.768 kHz
OV-7604-C7-32.768kHz-10PPM-TA-QC
Micro Crystal
标准时钟振荡器 32.768 kHz +/-10 PPM -40/+85C
32.768 kHz
OV-0100-C7-100.000kHz-50PPM-TA-QC
Micro Crystal
标准时钟振荡器 100.0 kHz +/-50 PPM -40/+85C
100 kHz
OM-7605-C8-20PPM-TA-QA
Micro Crystal
标准时钟振荡器 32.768kHz 20ppm 1.6-5.5V
32.768 kHz
超低功耗：45nA
高精度：±1ppm，±0.09s/天
最小封装：3.2x1.5x0.8mm
温度范围扩展至 +125℃，包括AEC-Q200
编码RV-3032-C7TAQC是一款高性能温度补偿实时时钟模块,32.768K时钟晶振
| 制造商零件编号 | 制造商 | 描述 |
| OV-7604-C7-32.768k-20PPM-TB-QA | Micro Crystal | 标准时钟振荡器32.768 kHz +/-20 PPM -40/+125C AEC-Q200 |
| OV-7604-C7-32.768kHz-20PPM-TA-QC | Micro Crystal | 标准时钟振荡器32.768 kHz +/-20 PPM -40/+85C |
| MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro Crystal | 晶体32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro Crystal | 晶体32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶体32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au | Micro Crystal | 晶体32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶体32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶体32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶体32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| OV-0100-C7-100.000kHz-20PPM-TA-QC | Micro Crystal | 标准时钟振荡器100.0 kHz +/-20 PPM -40/+85C |
| OM-0100-C8-100.00kHz-20PPM-TA-QC | Micro Crystal | 标准时钟振荡器100.0 kHz +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶体32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶体32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶体32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro Crystal | 晶体32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au | Micro Crystal | 晶体32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro Crystal | 晶体32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶体32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro Crystal | 晶体32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM8V-T1A-32.768k-9pF-20PPM-TB-QA | Micro Crystal | 晶体32.768 kHz 9.0 pF +/-20 PPM -40/+125C |
| MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au | Micro Crystal | 晶体32.768 kHz 10.0 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶体32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶体32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶体32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶体32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| OM-7605-C8-32.768kHz-20PPM-TA-QC | Micro Crystal | 标准时钟振荡器32.768 kHz +/-20 PPM -40/+85C |
| OM-7604-C7-32.768kHz-20PPM-TA-QC | Micro Crystal | 标准时钟振荡器32.768 kHz +/-20 PPM I2C -40/+85C |
| MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au | Micro Crystal | 晶体32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC | Micro Crystal | 晶体32.768 kHz 9.0 pF +/-20 PPM LOW ESR |
RV-3032-C7是一款具有I²C接口的高性能温度补偿实时时钟晶振模块，可在超低电流消耗的工业温度范围内提供世界上最佳的时间精度。嵌入式32.768kHz晶体谐振器的工厂校准温度补偿在-40℃至85℃（±1.5ppm 0℃至50℃；相当于±0.13秒/天）范围内提供±2.5 ppm 的精度。它通过低至160nA的计时电流延长电池寿命。除了标准的实时时钟(RTC)功能，如日历（从第100秒到（闰年）、定时器和警报），它还包括一个具有可编程温度窗口检测中断的精确高分辨率温度传感器、智能电源管理功能和用户EEPROM和RAM。带有时间戳的外部事件检测中断与可编程密码相结合，提供了防止欺诈和黑客攻击的安全解决方案。编码RV-3032-C7TAQC是一款高性能温度补偿实时时钟模块,32.768K时钟晶振
CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC
Micro Crystal
晶体32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC
Micro Crystal
晶体32.768 kHz 12.5 pF +/-20 PPM LOW ESR
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC
Micro Crystal
晶体32.768 kHz 7.0 pF +/-20 PPM LOW ESR
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA
Micro Crystal
晶体32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-7pF-20PPM-TA-QA
Micro Crystal
晶体32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-7pF-100PPM-TB-QA
Micro Crystal
晶体32.768 kHz 7.0 pF +/-100 PPM AEC-Q200
CC7V-T1A-32.768k-9pF-20PPM-TA-QA
Micro Crystal
晶体32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC
Micro Crystal
晶体32.768 kHz 12.5 pF 100 PPM -55/+125C
CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC
Micro Crystal
晶体32.768 kHz 12.5 pF +/-10 PPM -40/+85C
CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA
Micro Crystal
晶体32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TB-QA
Micro Crystal
晶体32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768k-7pF-20PPM-TB-QA
Micro Crystal
晶体32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC
Micro Crystal
晶体32.768 kHz 9.0 pF +/-20 PPM -55/+125C
CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA
Micro Crystal
晶体32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC
Micro Crystal
晶体32.768 kHz 6.0 pF +/-20 PPM LOW ESR
CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC
Micro Crystal
晶体32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM7V-T1A-32.768k-7pF-20PPM-TC-QA
Micro Crystal
晶体32.768 kHz 7.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768k-9pF-100PPM-TC-QA
Micro Crystal
晶体32.768 kHz 9.0 pF +/-100 PPM AEC-Q200
CM7V-T1A-32.768k-9pF-20PPM-TC-QA
Micro Crystal
晶体32.768 kHz 9.0 pF +/-20 PPM AEC-Q200
CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA
Micro Crystal
晶体32.768 kHz 12.5 pF +/-20 PPM AEC-Q200
CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC
Micro Crystal
晶体32.768 kHz 6.0 pF +/-10 PPM -40/+85C
CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC
Micro Crystal
晶体32.768 kHz 9.0 pF +/-100 PPM -40/+85C
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC
Micro Crystal
晶体32.768 kHz 6.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC
Micro Crystal
晶体32.768 kHz 12.5 pF +/-20 PPM -40/+125C
CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC
Micro Crystal
晶体32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC
Micro Crystal
晶体32.768 kHz 7.0 pF +/-20 PPM -40/+125C
CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC
Micro Crystal
晶体32.768 kHz 9.0 pF +/-20 PPM -40/+85C
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC
Micro Crystal
晶体32.768 kHz 7.0 pF +/-100 PPM -40/+85C
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC
Micro Crystal
晶体32.768 kHz 7.0 pF +/-20 PPM -40/+85C
CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC
Micro Crystal
晶体32.768 kHz 12.5 pF +/-20 PPM -40/+125C
编码RV-3032-C7TAQC是一款高性能温度补偿实时时钟模块,32.768K时钟晶振

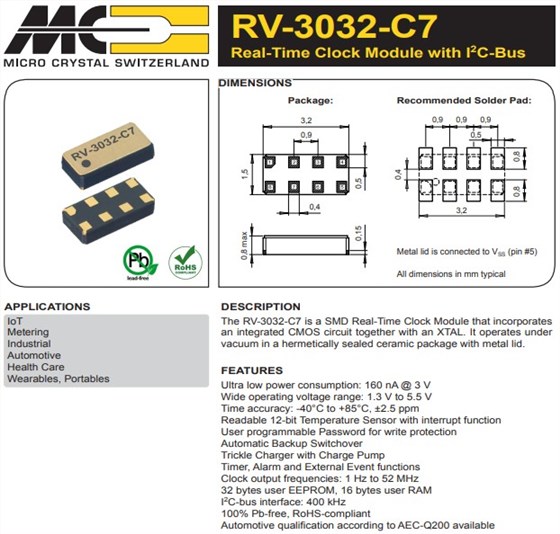

超小尺寸和紧凑的尺寸以及可靠的真空密封金属盖为微型和成本敏感的大批量应用提供了SMT完全集成且易于实施的设备的所有优势。
RV-3032-C7是一个SMD实时时钟模块，尺寸3.2x1.5mm晶振，包括集成CMOS电路和XTAL。它在以下条件下运作
带金属盖的密封陶瓷包装中的真空。
特征：
超低功耗:160 nA(3V时)
宽工作电压范围:1.3V至5.5V
时间精度:-40℃至+85℃，2.5ppm
具有中断功能的可读12位温度传感器
写保护的用户可编程密码
自动备份切换
带电荷泵的涓流充电器
定时器、闹钟和外部事件功能
时钟输出频率:1Hz至52MHz石英晶振
32字节用户EEPROM，16字节用户RAM
I2C总线接口:400千赫
100%无铅，符合RoHS标准
提供符合AEC-Q200的汽车认证
应用程序：物联网，测量，产业的，汽车的，卫生保健，可穿戴设备，便携式设备
