差分晶振具有输出相互之间极性相反的频率信号的方式,差分输出大家都了解最常见的三种HCSL、LVDS、LVPECL.差分有源晶振工作电压一般为2.5V/3.3V,低电压可达到低值1V,具有低功耗,低电平等优势.
安基LVPECL输出差分晶振型号
| Photo | Series | Dimension | Frequency Range | RoHS | REACH | Data Sheet |
|---|---|---|---|---|---|---|
|

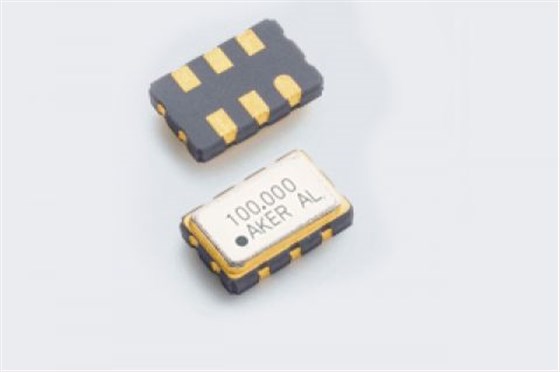

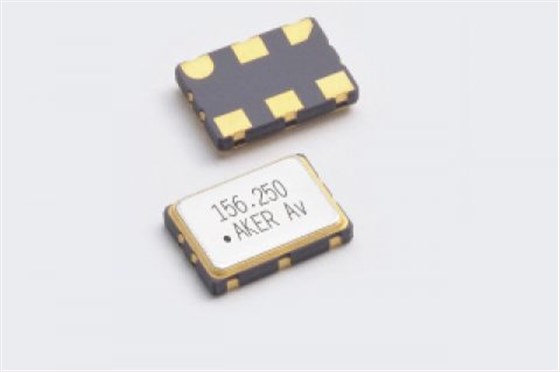

SMEN-751晶振 | 7.0*5.0*1.4 mm | 13.500 ~ 160.000MHz | V | V |
|
|

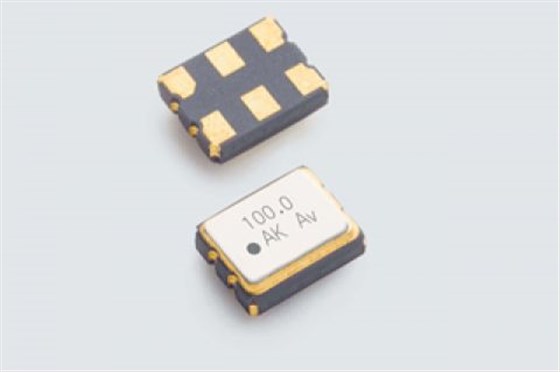

SMEN-531晶振 | 5.0*3.2*1.3 mm | 13.500 ~ 156.250MHz | V | V |
|
|
SMEN-321晶振 | 3.2*2.5*1.1 mm | 13.500 ~ 156.250MHz | V | V |
|
安基LVPECL输出差分晶振原厂代码
| 安基晶振型号 | 供应商 | 参数规格说明 | 频率MHZ | 输出 | 温度℃ |
| S7A3305-250.000-P-X-R | Aker晶振 | Oscillator XO 250MHz ±50ppm LVPECL 55% 3.3V Automotive 6-Pin SMD T/R | 250 | LVPECL | -40~85 |
| S7A2505-156.250-P-X-R | Aker晶振 | Oscillator XO 156.25MHz ±50ppm LVPECL 55% 2.5V 6-Pin SMD T/R | 156.25 | LVPECL | -40~85 |
| S5A2505-125.000-P-X-R | Aker晶振 | Oscillator XO 125MHz ±50ppm LVPECL 55% 2.5V Automotive 6-Pin SMD T/R | 125 | LVPECL | -40~85 |
| S7A3305-150.000-P-X-R | Aker晶振 | Oscillator XO 150MHz ±50ppm LVPECL 55% 3.3V Automotive 6-Pin SMD T/R | 150 | LVPECL | -40~85 |
| S7A2505-100.000-P-X-R | Aker晶振 | Oscillator XO 100MHz ±50ppm LVPECL 55% 2.5V Automotive 6-Pin SMD T/R | 100 | LVPECL | -40~85 |
| S7A3305-200.000-P-X-R | Aker晶振 | Oscillator XO 200MHz ±50ppm LVPECL 55% 3.3V Automotive 6-Pin SMD T/R | 200 | LVPECL | -40~85 |
| S7A3305-212.500-P-X-R | Aker晶振 | Oscillator XO 212.5MHz ±50ppm LVPECL 55% 3.3V Automotive 6-Pin SMD T/R | 212.5 | LVPECL | -40~85 |
| S7A2505-106.250-P-X-R | AKER晶振 | Oscillator XO 106.25MHz ±50ppm LVPECL 55% 2.5V Automotive 6-Pin SMD T/R | 106.25 | LVPECL | -40~85 |
亿金电子代理台湾进口晶振,日本进口晶振,美国进口晶振,包括AKER晶振,TXC晶振,KDS晶振,NDK晶振,CTS晶振,IDT晶振,Abracon晶振等知名品牌.进口晶振种类繁多,石英晶体,陶瓷谐振器,晶体滤波器,压控晶振,温补晶振,差分晶体振荡器等,能满足低,中,高各大市场需求.更多安基差分晶振信息欢迎咨询亿金电子0755-27876565.
