ECS晶振发布了ECX-LVDS ECS presscon振荡器系列的其他零件号。扩展包括100MHz、125MHz、156.250MHz和200MHz等新的特定频率,采用5.0mmx3.2mm和7.0mmx5.0mm封装尺寸。这些器件的工作温度范围为-40°C ~ 85°C的标准工业温度,由标准2.5V和3.3V电源电压组合而成。
ECS的可配置LVDS差分石英晶体振荡器可在扩展的频率范围。ECS的ECSpresCON系列产品能够满足当今95%以上的石英振荡器需求。这是因为它的可配置性,并且它可以现货供应,以满足您的确切设计规格。ECX-L是一款低抖动、低电流、频率可配置的表面贴装晶体控制振荡器,提供2.5V和3.3V两种电源电压。ECX-L的封装尺寸范围小至2.5mmx2.0mm,大至7.0mmx5.0mm,频率范围为10MHz至1,500MHz。
LVDS振荡器ECX-L33CN-125.000-TR提供频率可配置性及多种包装尺寸
原厂代码 | 品牌 | ECS晶振 | 频率 | 工作温度 |
ECX-L37BN-212.500 | ECS Crystal | ECSpressCON™ ECX-L | 212.5MHz | -40°C ~ 85°C |
ECX-L37BN-125.000 | ECS Crystal | ECSpressCON™ ECX-L | 125MHz | -40°C ~ 85°C |
ECX-L37BN-100.000 | ECS Crystal | ECSpressCON™ ECX-L | 100MHz | -40°C ~ 85°C |
ECX-L37BN-75.000 | ECS Crystal | ECSpressCON™ ECX-L | 75MHz | -40°C ~ 85°C |
ECX-L37BN-200.000 | ECS Crystal | ECSpressCON™ ECX-L | 200MHz | -40°C ~ 85°C |
ECX-L37CM-155.520 | ECS Crystal | ECSpressCON™ ECX-L | 155.52MHz | -20°C ~ 70°C |
ECX-L25BN-10.000 | ECS Crystal | ECSpressCON™ ECX-L | 10MHz | -40°C ~ 85°C |
ECX-L25BN-100.000 | ECS Crystal | ECSpressCON™ ECX-L | 100MHz | -40°C ~ 85°C |
ECX-L25BN-106.250 | ECS Crystal | ECSpressCON™ ECX-L | 106.25MHz | -40°C ~ 85°C |
ECX-L25BN-11.0592 | ECS Crystal | ECSpressCON™ ECX-L | 11.0592MHz | -40°C ~ 85°C |
ECX-L25BN-12.000 | ECS Crystal | ECSpressCON™ ECX-L | 12MHz | -40°C ~ 85°C |
ECX-L25BN-12.288 | ECS Crystal | ECSpressCON™ ECX-L | 12.288MHz | -40°C ~ 85°C |
ECX-L25BN-12.500 | ECS Crystal | ECSpressCON™ ECX-L | 12.5MHz | -40°C ~ 85°C |
ECX-L25BN-12.800 | ECS Crystal | ECSpressCON™ ECX-L | 12.8MHz | -40°C ~ 85°C |
ECX-L25BN-120.000 | ECS Crystal | ECSpressCON™ ECX-L | 120MHz | -40°C ~ 85°C |
ECX-L25BN-125.000 | ECS Crystal | ECSpressCON™ ECX-L | 125MHz | -40°C ~ 85°C |
ECX-L25BN-133.333 | ECS Crystal | ECSpressCON™ ECX-L | 133.333MHz | -40°C ~ 85°C |
ECX-L25BN-14.7456 | ECS Crystal | ECSpressCON™ ECX-L | 14.7456MHz | -40°C ~ 85°C |
ECX-L25BN-148.3516 | ECS Crystal | ECSpressCON™ ECX-L | 148.3516MHz | -40°C ~ 85°C |
ECX-L25BN-148.500 | ECS Crystal | ECSpressCON™ ECX-L | 148.5MHz | -40°C ~ 85°C |
ECX-L25BN-150.000 | ECS Crystal | ECSpressCON™ ECX-L | 150MHz | -40°C ~ 85°C |
ECX-L25BN-155.520 | ECS Crystal | ECSpressCON™ ECX-L | 155.52MHz | -40°C ~ 85°C |
ECX-L25BN-156.250 | ECS Crystal | ECSpressCON™ ECX-L | 156.25MHz | -40°C ~ 85°C |
ECX-L25BN-16.000 | ECS Crystal | ECSpressCON™ ECX-L | 16MHz | -40°C ~ 85°C |
ECX-L25BN-16.384 | ECS Crystal | ECSpressCON™ ECX-L | 16.384MHz | -40°C ~ 85°C |
ECX-L25BN-18.432 | ECS Crystal | ECSpressCON™ ECX-L | 18.432MHz | -40°C ~ 85°C |
ECX-L25BN-20.000 | ECS Crystal | ECSpressCON™ ECX-L | 20MHz | -40°C ~ 85°C |
ECX-L25BN-200.000 | ECS Crystal | ECSpressCON™ ECX-L | 200MHz | -40°C ~ 85°C |
ECX-L25BN-212.500 | ECS Crystal | ECSpressCON™ ECX-L | 212.5MHz | -40°C ~ 85°C |
ECX-L25BN-24.000 | ECS Crystal | ECSpressCON™ ECX-L | 24MHz | -40°C ~ 85°C |
ECX-L25BN-24.576 | ECS Crystal | ECSpressCON™ ECX-L | 24.576MHz | -40°C ~ 85°C |
ECX-L25BN-25.000 | ECS Crystal | ECSpressCON™ ECX-L | 25MHz | -40°C ~ 85°C |
ECX-L25BN-250.000 | ECS Crystal | ECSpressCON™ ECX-L | 250MHz | -40°C ~ 85°C |
ECX-L25BN-27.000 | ECS Crystal | ECSpressCON™ ECX-L | 27MHz | -40°C ~ 85°C |
ECX-L25BN-30.000 | ECS Crystal | ECSpressCON™ ECX-L | 30MHz | -40°C ~ 85°C |
ECX-L25BN-32.000 | ECS Crystal | ECSpressCON™ ECX-L | 32MHz | -40°C ~ 85°C |
ECX-L25BN-32.768 | ECS Crystal | ECSpressCON™ ECX-L | 32.768MHz | -40°C ~ 85°C |
ECX-L25BN-33.000 | ECS Crystal | ECSpressCON™ ECX-L | 33MHz | -40°C ~ 85°C |
ECX-L25BN-33.333 | ECS Crystal | ECSpressCON™ ECX-L | 33.333MHz | -40°C ~ 85°C |
ECX-L25BN-40.000 | ECS Crystal | ECSpressCON™ ECX-L | 40MHz | -40°C ~ 85°C |
ECX-L25BN-48.000 | ECS Crystal | ECSpressCON™ ECX-L | 48MHz | -40°C ~ 85°C |
ECX-L25BN-50.000 | ECS Crystal | ECSpressCON™ ECX-L | 50MHz | -40°C ~ 85°C |
ECX-L25BN-60.000 | ECS Crystal | ECSpressCON™ ECX-L | 60MHz | -40°C ~ 85°C |
ECX-L25BN-62.500 | ECS Crystal | ECSpressCON™ ECX-L | 62.5MHz | -40°C ~ 85°C |
ECX-L25BN-66.666 | ECS Crystal | ECSpressCON™ ECX-L | 66.666MHz | -40°C ~ 85°C |
ECX-L25BN-74.250 | ECS Crystal | ECSpressCON™ ECX-L | 74.25MHz | -40°C ~ 85°C |
ECX-L25BN-75.000 | ECS Crystal | ECSpressCON™ ECX-L | 75MHz | -40°C ~ 85°C |
ECX-L25BN-77.760 | ECS Crystal | ECSpressCON™ ECX-L | 77.76MHz | -40°C ~ 85°C |
ECX-L25BN-80.000 | ECS Crystal | ECSpressCON™ ECX-L | 80MHz | -40°C ~ 85°C |
ECX-L25CM-10.000 | 石英晶振 | ECSpressCON™ ECX-L | 10MHz | -20°C ~ 70°C |
ECX-L25CM-100.000 | ECS Crystal | ECSpressCON™ ECX-L | 100MHz | -20°C ~ 70°C |
ECX-L25CM-106.250 | ECS Crystal | ECSpressCON™ ECX-L | 106.25MHz | -20°C ~ 70°C |
ECX-L25CM-11.0592 | ECS Crystal | ECSpressCON™ ECX-L | 11.0592MHz | -20°C ~ 70°C |
ECX-L25CM-12.000 | ECS Crystal | ECSpressCON™ ECX-L | 12MHz | -20°C ~ 70°C |
ECX-L25CM-12.288 | ECS Crystal | ECSpressCON™ ECX-L | 12.288MHz | -20°C ~ 70°C |
ECX-L25CM-12.500 | ECS Crystal | ECSpressCON™ ECX-L | 12.5MHz | -20°C ~ 70°C |
ECX-L25CM-12.800 | ECS Crystal | ECSpressCON™ ECX-L | 12.8MHz | -20°C ~ 70°C |
ECX-L25CM-120.000 | ECS Crystal | ECSpressCON™ ECX-L | 120MHz | -20°C ~ 70°C |
ECX-L25CM-125.000 | ECS Crystal | ECSpressCON™ ECX-L | 125MHz | -20°C ~ 70°C |
ECX-L25CM-133.333 | ECS Crystal | ECSpressCON™ ECX-L | 133.333MHz | -20°C ~ 70°C |
ECX-L25CM-14.7456 | ECS Crystal | ECSpressCON™ ECX-L | 14.7456MHz | -20°C ~ 70°C |
ECX-L25CM-148.3516 | ECS Crystal | ECSpressCON™ ECX-L | 148.3516MHz | -20°C ~ 70°C |
ECX-L25CM-148.500 | ECS Crystal | ECSpressCON™ ECX-L | 148.5MHz | -20°C ~ 70°C |
ECX-L25CM-150.000 | ECS Crystal | ECSpressCON™ ECX-L | 150MHz | -20°C ~ 70°C |
ECX-L25CM-155.520 | ECS Crystal | ECSpressCON™ ECX-L | 155.52MHz | -20°C ~ 70°C |
ECX-L25CM-156.250 | ECS Crystal | ECSpressCON™ ECX-L | 156.25MHz | -20°C ~ 70°C |
ECX-L25CM-16.000 | ECS Crystal | ECSpressCON™ ECX-L | 16MHz | -20°C ~ 70°C |

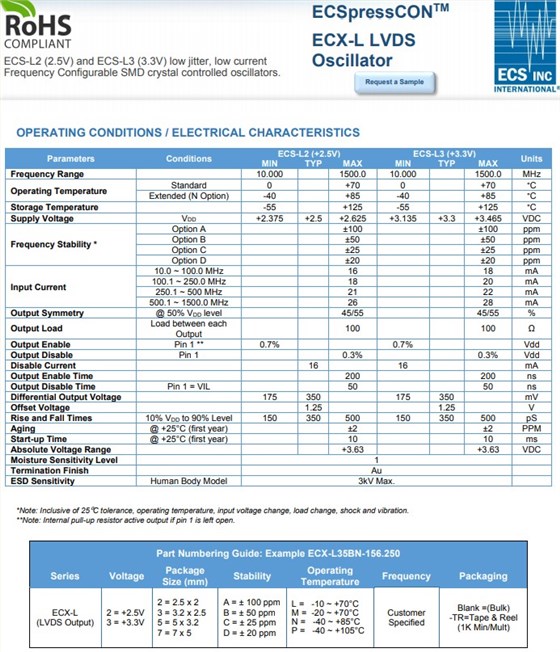

提供多种包装尺寸:
2.5x2.0mm、3.2x2.5mm、5.0x3.2mm、7.0x5.0mm贴片晶振
可用电源电压选项:2.5V (ECS-L2),3.3V (ECS-L3)
低抖动1pS
低电流16毫安~ 28毫安,取决于频率
广泛的可配置频率范围
标准工作温度:-40℃至+85℃
可提供更高的工作温度
频率稳定性选项:20ppm、25ppm、50ppm、100ppm
LVDS互补输出
应用:建立工作关系网,通信,物联网,数据存储,移动设备,无线设备,测试
LVDS振荡器ECX-L33CN-125.000-TR提供频率可配置性及多种包装尺寸,LVDS差分晶振是普通贴片晶振所不能够达到的,差分晶振具有低电平,低抖动,低功耗等特性.差分晶振作为目前行业中高要求,高技术石英晶体振荡器,具有相位低,损耗低的特点,差分晶振使用于产品中能够很容易地识别小信号,能够从容精确地处理双级信号,对外部电磁干扰(EMI)是高度免疫的,差分石英晶振满足市场需求,实现高频高精度等要求,更加保障了各种系统参考时钟的可靠性。
