ECS推出ECS-.327-12.5-34QS-TR专为无线通信而来的SMD晶体

ECS推出ECS-.327-12.5-34QS-TR专为无线通信而来的SMD晶体，ECS Inc. International’s high temperature automotive frequency control quartz products feature AEC-Q200 qualification and are TS 16949 certified. Offered in the leading surface mount packaging configurations, our AEC-Q200 crystal products are available in a range of frequencies. Automotive grade frequency control products are desirable for many customers in the industrial and medical market as well as automotive markets. These products meet the most stringent requirements for the extremely harsh environments typical in automotive applications.

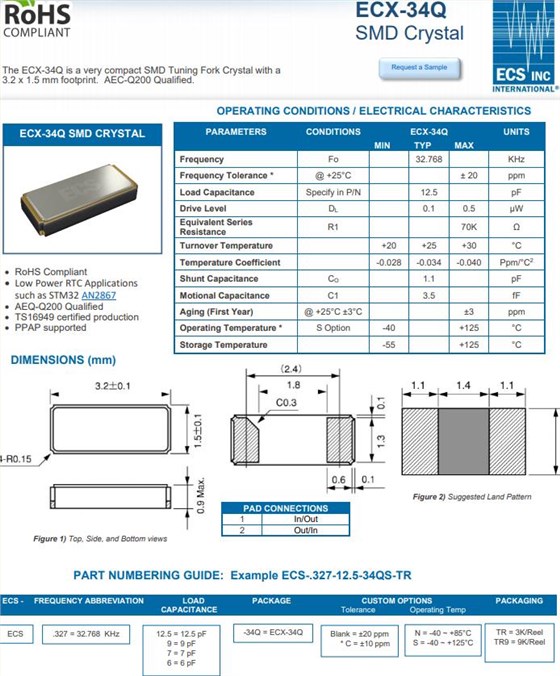

The ECX-34Q is a very compact SMD Tuning Fork Crystal with a 3.2 x 1.5 mm footprint. AEC-Q200 Qualified.

RoHS CompliantLow Power RTC Applications such as STM32 AN2867AEQ-Q200 Qualified,TS16949 certified production,PPAP supported.

ECS国际上的高温汽车变频石英晶振产品的特点AEC-Q200资质和TS 16949认证。提供领先的表面贴装包装配置，我们的AEC-Q200晶体产品可在一个频率范围内。汽车级频率控制产品是许多工业和医疗客户所需要的市场和汽车市场。这些产品符合最严格的要求汽车应用中典型的极端恶劣环境。

Manufacturer Part Number原厂编码	Manufacturer厂家	Series型号	Type 系列	Frequency	Operating Temperature 工作温度	Package / Case包装/封装
ECS-147.4-20-4	ECS晶振	HC-49US	MHz Crystal	14.7456MHz	-10°C ~ 70°C	HC49/US
ECS-76.8-20-4X	ECS晶振	HC-49USX	MHz Crystal	7.68MHz	-10°C ~ 70°C	HC49/US
ECS-42-16-4X	ECS晶振	HC-49USX	MHz Crystal	4.194304MHz	-10°C ~ 70°C	HC49/US
ECS-49-20-4	ECS晶振	HC-49US	MHz Crystal	4.9152MHz	-10°C ~ 70°C	HC49/US
ECS-196.6-20-4X	ECS晶振	HC-49USX	MHz Crystal	19.6608MHz	-10°C ~ 70°C	HC49/US
ECS-35-S-4X	ECS晶振	HC-49USX	MHz Crystal	3.579545MHz	-10°C ~ 70°C	HC49/US
ECS-180-20-4	ECS晶振	HC-49US	MHz Crystal	18MHz	-10°C ~ 70°C	HC49/US
ECS-110-S-4	ECS晶振	HC-49US	MHz Crystal	11MHz	-10°C ~ 70°C	HC49/US
ECS-196.6-20-4	ECS晶振	HC-49US	MHz Crystal	19.6608MHz	-10°C ~ 70°C	HC49/US
ECS-73-20-4	ECS晶振	HC-49US	MHz Crystal	7.3728MHz	-10°C ~ 70°C	HC49/US
ECS-120-18-30B-JEM-TR	ECS晶振	ECX-53B	MHz Crystal	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-18-30B-JEM-TR	ECS晶振	ECX-53B	MHz Crystal	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-18-30B-JEM-TR	ECS晶振	ECX-53B	MHz Crystal	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-41-20-4	ECS晶振	HC-49US	MHz Crystal	4.096MHz	-10°C ~ 70°C	HC49/US
ECS-61-32-4	ECS晶振	HC-49US	MHz Crystal	6.144MHz	-10°C ~ 70°C	HC49/US
ECS-60-S-4X	ECS晶振	HC-49USX	MHz Crystal	6MHz	-10°C ~ 70°C	HC49/US
ECS-41-20-4X	ECS晶振	HC-49USX	MHz Crystal	4.096MHz	-10°C ~ 70°C	HC49/US

ECS推出ECS-.327-12.5-34QS-TR专为无线通信而来的SMD晶体，ECX-34Q是一个非常紧凑的贴片音叉晶体3.2 x 1.5 mm占地面积。SMD晶振编码ECS-.327-12.5-34QS-TR，AEC-Q200合格。通过无铅认证,低功耗RTC应用,如STM32 AN2867,AEQ-Q200合格,TS16949认证生产，支持PPAP.

ECS Inc.国际公司是一家私人控股公司，致力于满足不断增长的全球高可靠性创新型频率控制设备，石英晶体需求。

ECS公司是世界一流的研究机构和电子设备设计师公认的创新频率控制解决方案的前15的全球开发商和制造出全球竞争者数超过600的。
