ECS-3225MV-250-BN-TR晶体振荡器是LoRa WAN的理想选择

2023-02-16 09:33:59

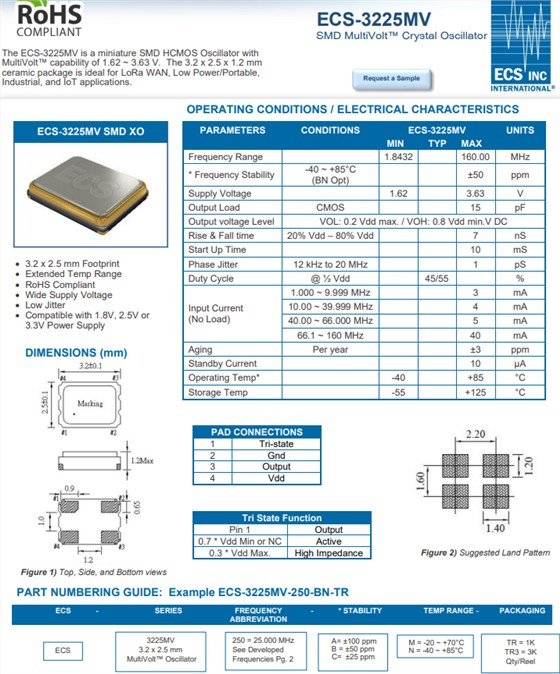

ECS晶振ECS-3225MV系列是一款微型SMD HCMOS振荡器,具有MultiVolt容量为1.62V至3.63V,低功耗、固定频率、低抖动、MultiVolt表面贴装石英晶体振荡器。为节省电路板空间,采用小体积3.2x2.5x1.2mm (LWH)封装四角贴片晶振。MultiVolt特性允许客户将同一器件用于多种设计,从而降低认证要求并减少库存。ECS的表面贴装MultiVolt晶体振荡器非常适合低功耗、便携式、工业和物联网应用。ECS-3225MV-250-BN-TR晶体振荡器是LoRa WAN的理想选择

贴片石英晶振 品牌 型号 频率 工作温度
ECS-3225S33-250-FN-TR ECS Crystal ECS-3225S 25MHz -40°C ~ 85°C
ECS-3225S33-250-FN-TR ECS Crystal ECS-3225S 25MHz -40°C ~ 85°C
ECS-3225S33-250-FN-TR ECS Crystal ECS-3225S 25MHz -40°C ~ 85°C
ECS-3225S33-260-FN-TR ECS Crystal ECS-3225S 26MHz -40°C ~ 85°C
ECS-3225S33-260-FN-TR ECS Crystal ECS-3225S 26MHz -40°C ~ 85°C
ECS-3225S33-260-FN-TR ECS Crystal ECS-3225S 26MHz -40°C ~ 85°C
ECS-3225S33-400-FN-TR ECS Crystal ECS-3225S 40MHz -40°C ~ 85°C
ECS-3225S33-400-FN-TR ECS Crystal ECS-3225S 40MHz -40°C ~ 85°C
ECS-3225S33-400-FN-TR ECS Crystal ECS-3225S 40MHz -40°C ~ 85°C
ECS-3225S25-240-FN-TR ECS Crystal ECS-3225S 24MHz -40°C ~ 85°C
ECS-3225S25-240-FN-TR ECS Crystal ECS-3225S 24MHz -40°C ~ 85°C
ECS-3225S25-240-FN-TR ECS Crystal ECS-3225S 24MHz -40°C ~ 85°C
ECS-3225S25-250-FN-TR ECS Crystal ECS-3225S 25MHz -40°C ~ 85°C
ECS-3225S25-250-FN-TR ECS Crystal ECS-3225S 25MHz -40°C ~ 85°C
ECS-3225S25-250-FN-TR ECS晶振 ECS-3225S 25MHz -40°C ~ 85°C
ECS-3225S18-160-FN-TR ECS Crystal ECS-3225S 16MHz -40°C ~ 85°C
ECS-3225S18-160-FN-TR ECS Crystal ECS-3225S 16MHz -40°C ~ 85°C
ECS-3225S18-160-FN-TR ECS Crystal ECS-3225S 16MHz -40°C ~ 85°C
ECS-3225S18-200-FN-TR ECS Crystal ECS-3225S 20MHz -40°C ~ 85°C
ECS-3225S18-200-FN-TR ECS Crystal ECS-3225S 20MHz -40°C ~ 85°C
ECS-3225S18-200-FN-TR ECS Crystal ECS-3225S 20MHz -40°C ~ 85°C
ECS-3225S18-240-FN-TR ECS Crystal ECS-3225S 24MHz -40°C ~ 85°C
ECS-3225S18-240-FN-TR ECS Crystal ECS-3225S 24MHz -40°C ~ 85°C
ECS-3225S18-240-FN-TR ECS Crystal ECS-3225S 24MHz -40°C ~ 85°C
ECS-3225S18-270-FN-TR ECS Crystal ECS-3225S 27MHz -40°C ~ 85°C
ECS-3225S18-270-FN-TR ECS Crystal ECS-3225S 27MHz -40°C ~ 85°C
ECS-3225S18-270-FN-TR ECS Crystal ECS-3225S 27MHz -40°C ~ 85°C
ECS-3225S18-320-FN-TR ECS Crystal ECS-3225S 32MHz -40°C ~ 85°C

ECS-3225MV-250-BN-TR晶体振荡器是LoRa WAN的理想选择

特点:
小体积尺寸:3.2x2.5毫米的尺寸
4焊盘配置有源晶振
多伏特1.6V至3.63V
兼容1.8V、2.5V或3.3V电源
低抖动:1 pS
-BN选项:50 ppm,-40℃至+85℃
-CN选项:25 ppm,-40℃至+85℃
符合RoHS 2和REACH标准
MSL 1号
铅饰面金
应用:物联网,存储设备,商业现货(COTS),航行,医疗(非维持生命),移动设备,产业的,无线设备,测试设备,通用微处理器,IP摄像机

ECS-3225MV

图片 晶振系列 频率 频率稳定性 工作温度
184 8 36 CKM ECS-3225MV-120-BN-TR 12 MHz ±50ppm -40°C ~ +85°C
184 8 36 CKM ECS-3225MV-160-CN-TR 16 MHz ±25ppm -40°C ~ +85°C
184 8 36 CKM ECS-3225MV-250-BN-TR 25 MHz ±50ppm -40°C ~ +85°C
184 8 36 CKM ECS-3225MV-250-CN-TR 25 MHz ±25ppm -40°C ~ +85°C
184 8 36 CKM ECS-3225MV-260-CN-TR 26 MHz ±25ppm -40°C ~ +85°C
184 8 36 CKM ECS-3225MV-320-BN-TR 32 MHz ±50ppm -40°C ~ +85°C
