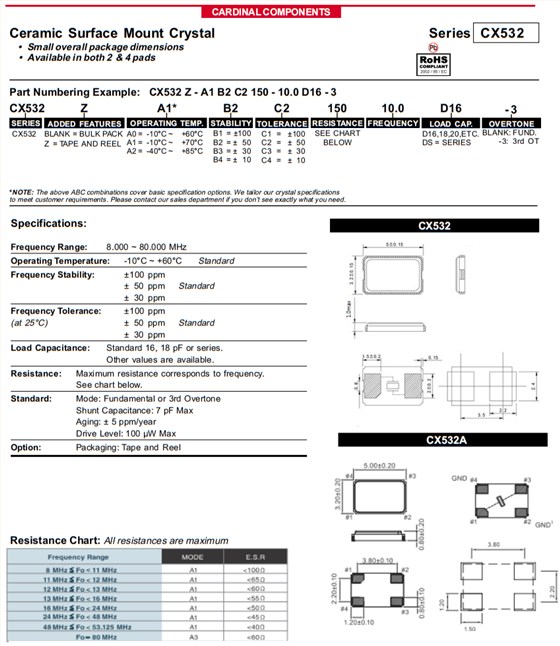

美国进口Cardinal卡迪纳尔晶振CX532，是一款小体积晶振尺寸5.0x3.2mm表面贴装晶体，整体封装尺寸小，CX532晶振两脚贴片晶振和CX532A晶振四脚贴片晶振可供选择，无源晶振，石英贴片晶振，石英晶体谐振器，频率范围：8MHz-80MHz，频率稳定度：±30ppm，工作温度范围：-40℃至+85℃，无铅环保晶振，该石英晶体谐振器具有超小型，轻薄型，耐热及耐环境特点，被广泛用于通讯设备，无线局域网，蓝牙模块晶振，汽车电子，医疗设备，数码电子，平板电脑，物联网，微处理时钟应用等。蓝牙模块应用晶振CX532Z-A5B3C5-70-12.0D18
| 进口晶振编码 | 厂家 | 型号 | 系列 | 频率 | 频率稳定度 |
| CX5Z-A5B2C5-70-7.37280D18 | Cardinal晶振 | CX5 | MHz Crystal | 7.3728MHz | ±50ppm |
| CX532Z-A2B3C5-70-12.288D18 | Cardinal晶振 | CX532 | MHz Crystal | 12.288MHz | ±30ppm |
| CX532Z-A2B3C5-70-16.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 16MHz | ±30ppm |
| CX5Z-ARB2C5-70-7.3728D18 | Cardinal晶振 | CX5 | MHz Crystal | 7.3728MHz | ±50ppm |
| CX532Z-A2B3C5-70-12.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 12MHz | ±30ppm |
| CX5Z-A5B2C5-40-27.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 27MHz | ±50ppm |
| CX5Z-A5B2C5-40-24.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 24MHz | ±50ppm |
| CX5Z-A5B2C5-40-24.576D18 | Cardinal晶振 | CX5 | MHz Crystal | 24.576MHz | ±50ppm |
| CX5Z-A5B2C5-70-8.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 8MHz | ±50ppm |
| CX5Z-A1B2C5-40-24.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 24MHz | ±50ppm |
| CX5Z-A5B2C5-50-16.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 16MHz | ±50ppm |
| CX5Z-A0B2C5-50-16.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 16MHz | ±50ppm |
| CX5Z-A2B2C5-40-10.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 10MHz | ±50ppm |
| CX532Z-A2B3C5-70-1966080D18 | Cardinal晶振 | CX532 | MHz Crystal | 19.6608MHz | ±30ppm |
| CX532Z-A2B3C5-70-33.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 33MHz | ±30ppm |
| CX532Z-A2B3C5-70-27.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 27MHz | ±30ppm |
| CX532Z-A5B3C5-70-20.0D18 | Cardinal晶振 | CX532 | 无源晶体 | 20MHz | ±30ppm |
| CX532Z-A2B3C5-70-14.7456D18 | Cardinal晶振 | CX532 | MHz Crystal | 14.7456MHz | ±30ppm |
| CX532Z-A5B3C5-70-12.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 12MHz | ±30ppm |
| CX532Z-A2B3C5-70-50.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 50MHz | ±30ppm |
| CX532Z-A2B3C5-70-30.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 30MHz | ±30ppm |
| CX532Z-A5B3C5-70-27.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 27MHz | ±30ppm |
| CX532AZ-A5B2C5-70-25.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 25MHz | ±50ppm |
| CX532Z-A5B3C5-70-25.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 25MHz | ±30ppm |
| CX532Z-A2B3C5-70-20.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 20MHz | ±30ppm |
| CX5Z-A2B2C5-70-8.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 8MHz | ±50ppm |
| CX5Z-A2B2C5-40-25D18 | Cardinal晶振 | CX5 | MHz Crystal | 25MHz | ±50ppm |
| CX532Z-A2B3C5-70-8.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 8MHz | ±30ppm |
| CX5Z-A2B2C5-40-12.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 12MHz | ±50ppm |
| CX5Z-A5B2C5-40-12.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 12MHz | ±50ppm |
| CX5Z-A5B2C5-40-10.0D18 | Cardinal晶振 | CX5 | MHz Crystal | 10MHz | ±50ppm |
| CX5Z-A5B2C5-40-25D18 | Cardinal晶振 | CX5 | MHz Crystal | 25MHz | ±50ppm |
| CX532Z-A5B3C5-70-18.432D18 | Cardinal晶振 | CX532 | MHz Crystal | 18.432MHz | ±30ppm |
| CX532Z-A2B3C5-70-25.0D18 | Cardinal晶振 | CX532 | MHz Crystal | 25MHz | ±30ppm |
